DI06W8-15

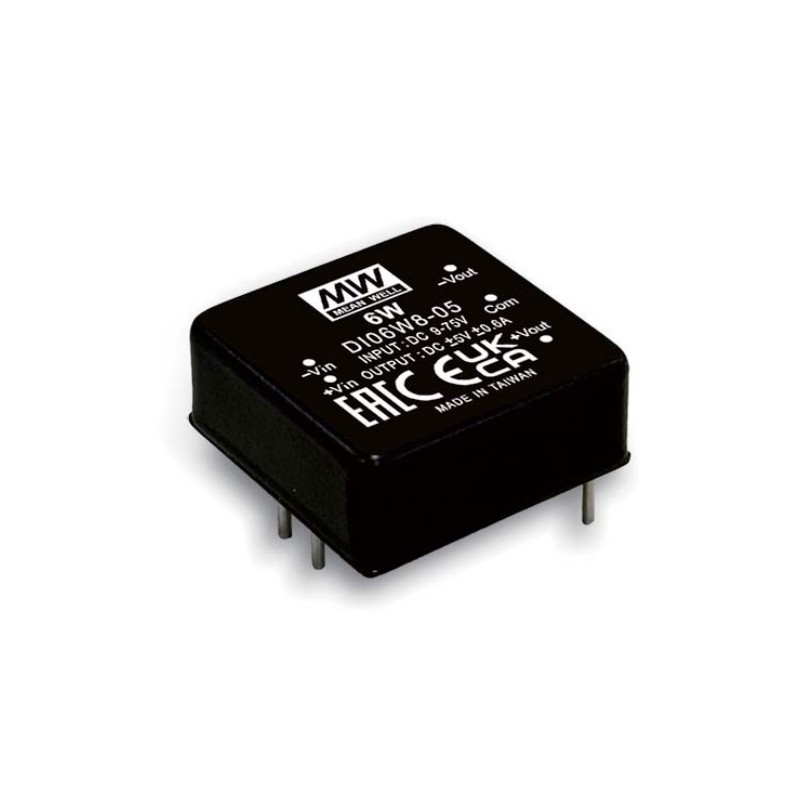

Mean Well DC/DC converter series DI06W8

DC/DC converter modules in a 1"x1" housing with 6W, a regulated output voltage and an input voltage ratio of 8:1. These devices are suitable for PCB mounting and are protected against overload, overvoltage as well as short circuit (continuous). They do not require a minimum load and comply with EN5032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: DI06W8-05, DI06W8-12 and DI06W8-15.

  • dual output
  • output: 6W
  • output voltage tolerance: ±2%
  • maximal ripple and noise: 100mVpp
  • withstand voltage: 3000V DC
  • connection type: THT
  • operating temperature: -40 to +90°C
  • dimensions: 25,4x25,4x10,2mm
  • weight: 20g

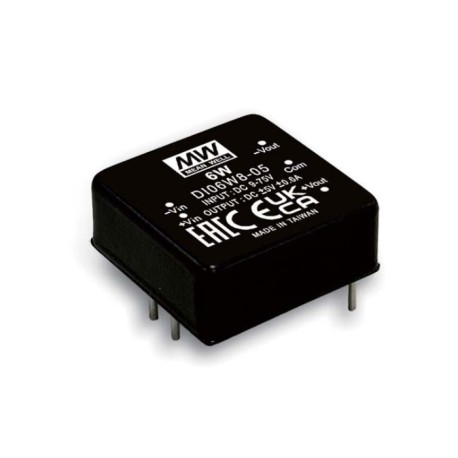

DI06W8-15, Mean Well DC/DC converters, 6W, 1"x1", DI06W8 series

DI06W8-15

244412 DI06W8-15 DI06W8-15 Mean Well DC/DC converter series DI06W8. DC/DC converter modules in a 1"x1" housing with 6W, a regulated output voltage and an input voltage ratio of 8:1. These devices are suitable for PCB mounting and are protected against overload, overvoltage as well as short circuit (continuous). They do not require a minimum load and comply with EN5032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: DI06W8-05, DI06W8-12 and DI06W8-15. dual output output: 6W output voltage tolerance: ±2% maximal ripple and noise: 100mVpp withstand voltage: 3000V DC connection type: THT operating temperature: -40 to +90°C dimensions: 25,4x25,4x10,2mm weight: 20g

Specifications

manufacturer
Manufacturer's name DI06W8-15
Input voltage [V] 9...75
Output voltage [V] ±15
Efficiency [%] 84,5
Output current [A] ±0,2
Data Sheet

Unit price

10,69 €

Volume discounts

Quantity Unit price
50 + 9,89 €

Stock: 0
Next incoming goods:
CW 03/2025
20 units

Further delivery:
CW 18/2025
