DETN02L-15

Mean Well DC/DC converter series DETN02

Unregulated DC/DC converters in an SMD housing with 2W and a high efficiency (up to 83%). These devices are suitable for direct PCB mounting and are protected against short circuit. They are reasonably priced and comply with EN55032 class A. We offer the following types of this Mean Well series: DETN02L-05, DETN02L-12, DETN02L-15, DETN02M-05, DETN02M-12, DETN02M-15, DETN02N-05, DETN02N-12 and DETN02N-15.

  • dual output
  • output: 2W
  • output voltage tolerance: ±2%
  • maximal ripple and noise: 75mVpp
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +100°C
  • weight: 1,2g

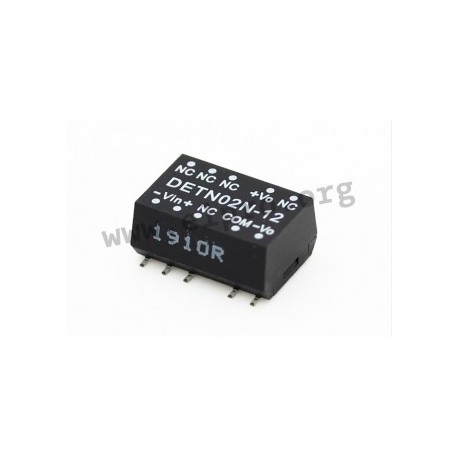

DETN02L-15, Mean Well DC/DC converters, 2W, SMD, DETN02 series

DETN02L-15

113365 DETN02L-15 DETN02L-15 4711287471082 Mean Well DC/DC converter series DETN02. Unregulated DC/DC converters in an SMD housing with 2W and a high efficiency (up to 83%). These devices are suitable for direct PCB mounting and are protected against short circuit. They are reasonably priced and comply with EN55032 class A. We offer the following types of this Mean Well series: DETN02L-05, DETN02L-12, DETN02L-15, DETN02M-05, DETN02M-12, DETN02M-15, DETN02N-05, DETN02N-12 and DETN02N-15. dual output output: 2W output voltage tolerance: ±2% maximal ripple and noise: 75mVpp withstand voltage: 3000V DC operating temperature: -40 to +100°C weight: 1,2g

Specifications

manufacturer
Manufacturer's name DETN02L-15
GTIN 4711287471082
Input voltage [V] 4,5...5,5
Output voltage [V] ±15
Output current range [mA] ±6...67
Efficiency [%] 81
Data Sheet

Unit price

5,29 €

Volume discounts

Quantity Unit price
50 + 4,79 €

Stock: 21
Further delivery:
CW 23/2025
