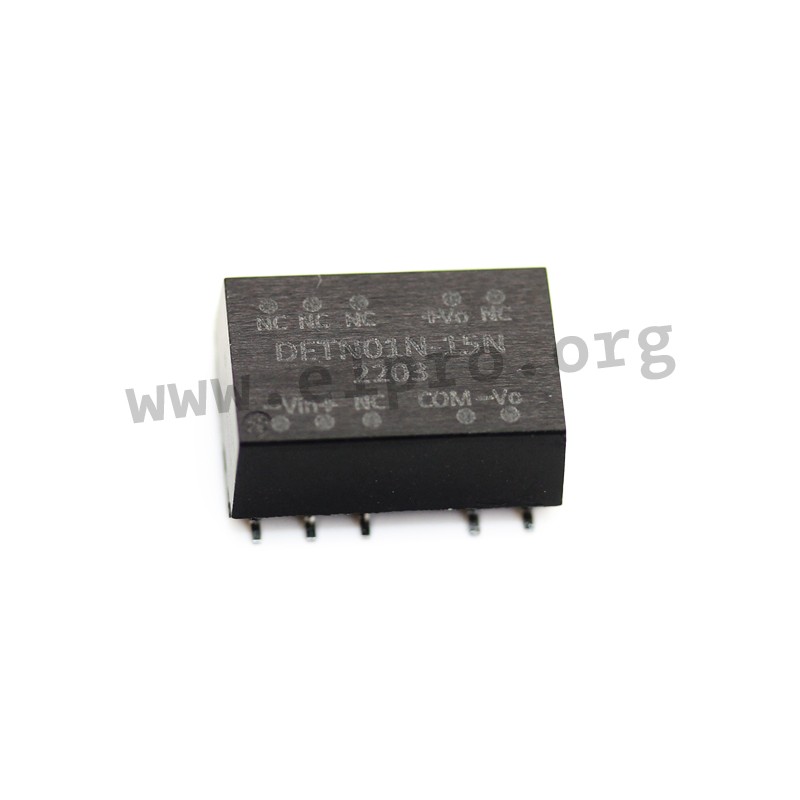

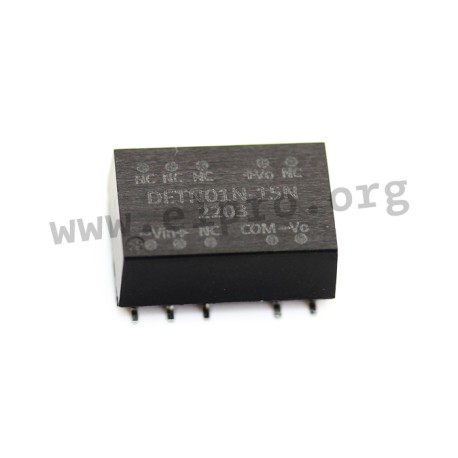

DETN01M-15N

Mean Well DC/DC converter series DETN01-N

Unregulated DC/DC converters in an SMD housing with 1W and an input voltage ratio of 1:1. These devices are suitable for direct PCB mounting and are protected against short circuit. They are inexpensive, efficient and comply with EN55032. We offer the following types of this Mean Well series: DETN01L-05N, DETN01L-12N, DETN01L-15N, DETN01M-05N, DETN01M-12N, DETN01M-15N, DETN01N-05N, DETN01N-12N and DETN01N-15N.

  • dual output
  • output: 1W
  • output voltage tolerance: ±5%
  • maximal ripple and noise: 100mVpp
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +100°C
  • weight: 1,2g

DETN01M-15N

241390 DETN01M-15N DETN01M-15N 4711287471204 Mean Well DC/DC converter series DETN01-N. Unregulated DC/DC converters in an SMD housing with 1W and an input voltage ratio of 1:1. These devices are suitable for direct PCB mounting and are protected against short circuit. They are inexpensive, efficient and comply with EN55032. We offer the following types of this Mean Well series: DETN01L-05N, DETN01L-12N, DETN01L-15N, DETN01M-05N, DETN01M-12N, DETN01M-15N, DETN01N-05N, DETN01N-12N and DETN01N-15N. dual output output: 1W output voltage tolerance: ±5% maximal ripple and noise: 100mVpp withstand voltage: 3000V DC operating temperature: -40 to +100°C weight: 1,2g

Specifications

manufacturer
Manufacturer's name DETN01M-15N
GTIN 4711287471204
Output voltage [V] ±15
Input voltage range [V] 10,8...13,2
Efficiency [%] 79
Output current [A] ±0,034
Data Sheet

Unit price

4,69 €

Volume discounts

Quantity Unit price
50 + 4,19 €

Stock: 208
Further delivery:
CW 18/2025
