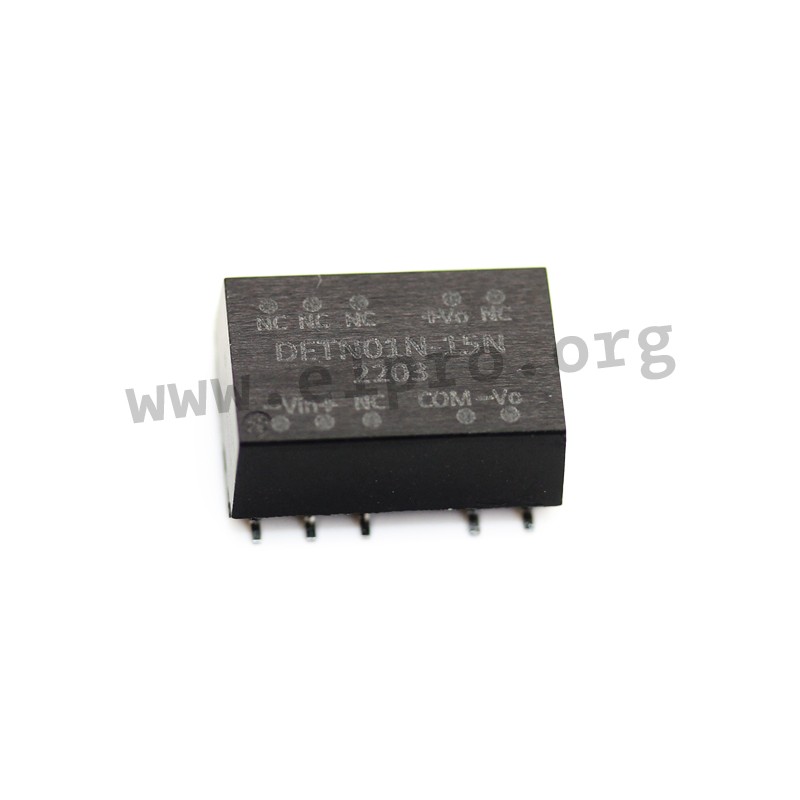

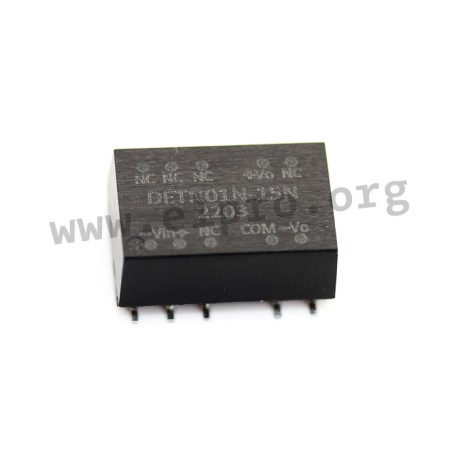

DETN01M-05N
Mean Well DC/DC converter series DETN01-N
Unregulated DC/DC converters in an SMD housing with 1W and an input voltage ratio of 1:1. These devices are suitable for direct PCB mounting and are protected against short circuit. They are inexpensive, efficient and comply with EN55032. We offer the following types of this Mean Well series: DETN01L-05N, DETN01L-12N, DETN01L-15N, DETN01M-05N, DETN01M-12N, DETN01M-15N, DETN01N-05N, DETN01N-12N and DETN01N-15N.
- dual output
- output: 1W
- output voltage tolerance: ±5%
- maximal ripple and noise: 100mVpp
- withstand voltage: 3000V DC
- operating temperature: -40 to +100°C
- weight: 1,2g
DETN01M-05N
Specifications
| manufacturer | Mean Well |
| Manufacturer's name | DETN01M-05N |
| GTIN | 4711287471181 |
| Output voltage [V] | ±5 |
| Input voltage range [V] | 10,8...13,2 |
| Efficiency [%] | 75 |
| Output current [A] | ±0,1 |
