DDRH-60-12

Mean Well DC/DC converter series DDRH-60

Converter modules in a DIN rail housing (TS-35/7,5 or 15) with 60W, an ultra wide input range, a built-in DC OK relay contact and an input voltage ratio of 10:1. These devices are designed fanless (cooling by free air convection), are suited for an operating altitude of up to 5000m and are protected against short circuit, overload, overvoltage, overtemperature as well as reverse polarity. They require no minimum load, have an adjustable output voltage (±20%) and comply with EN55032 class A. We offer the following types of this Mean Well series: DDRH-60-5, DDRH-60-12, DDRH-60-24 and DDRH-60-48.

  • single output
  • output: 50 to 60W
  • input voltage: 150 to 1500V DC
  • maximal input inrush current: 120A
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage O/P-DC OK: 500V AC
  • operating temperature: -30 to +80°C
  • dimensions: 57x93,5x105mm
  • weight: 800g

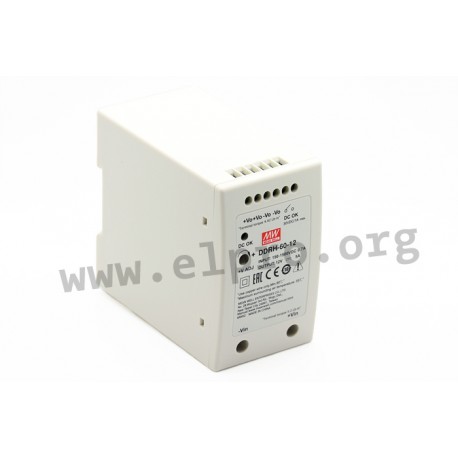

DDRH-60-12, Mean Well DC/DC converters, 60W, DIN rail housing, DDRH-60 series

DDRH-60-12

137206 DDRH-60-12 DDRH-60-12 4711287423203 Mean Well DC/DC converter series DDRH-60. Converter modules in a DIN rail housing (TS-35/7,5 or 15) with 60W, an ultra wide input range, a built-in DC OK relay contact and an input voltage ratio of 10:1. These devices are designed fanless (cooling by free air convection), are suited for an operating altitude of up to 5000m and are protected against short circuit, overload, overvoltage, overtemperature as well as reverse polarity. They require no minimum load, have an adjustable output voltage (±20%) and comply with EN55032 class A. We offer the following types of this Mean Well series: DDRH-60-5, DDRH-60-12, DDRH-60-24 and DDRH-60-48. single output output: 50 to 60W input voltage: 150 to 1500V DC maximal input inrush current: 120A overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V AC withstand voltage O/P-DC OK: 500V AC operating temperature: -30 to +80°C dimensions: 57x93,5x105mm weight: 800g

Specifications

manufacturer
Manufacturer's name DDRH-60-12
GTIN 4711287423203
Output voltage [V] 12
Efficiency [%] 81
Output current range [A] 0...5
Output voltage tolerance: [%] ±1,5
Output power [W] 60
Output voltage adjustment [V] 12...15
Ripple [mVp-p] 120
Data Sheet

Unit price

44,99 €

Volume discounts

Quantity Unit price
50 + 44,09 €

Stock: 93
Further delivery:
CW 12/2025
