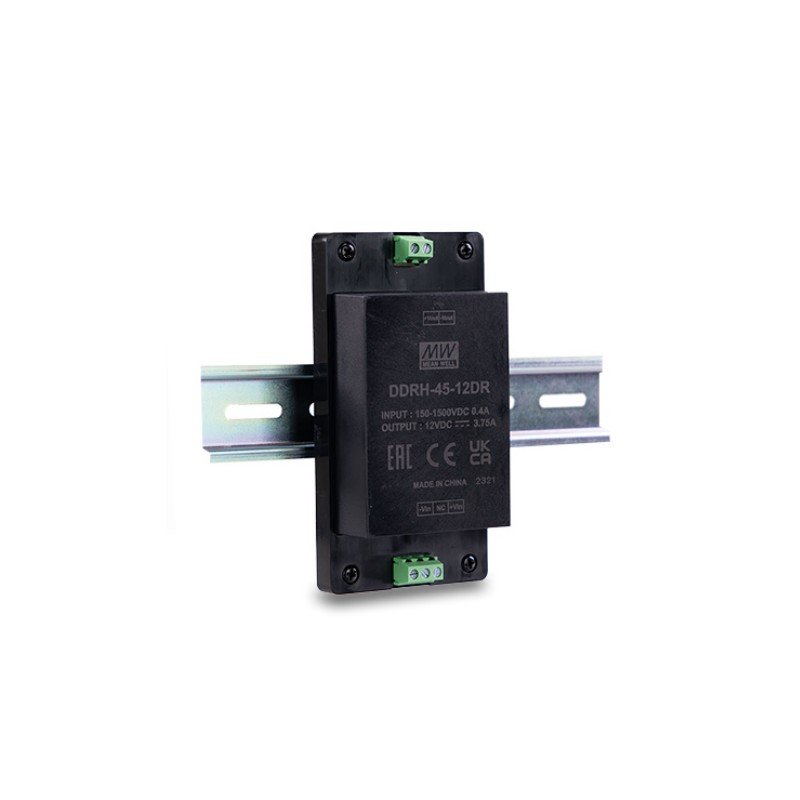

DDRH-45-12DR

Mean Well DC/DC converter series DDRH-45

DC/DC converters in a DIN rail housing (TS35/7,5 or 15) with 45W and screw terminals. These devices are suitable for an operating altitude of up to 5000m and have an ultra wide input voltage range (10:1). They have a fanless design, comply with EN55032 class A as well as IEC62109-1 and are protected against overload, voltage reversal, short circuit as well as overvoltage. We offer the following types of this Mean Well series: DDRH-45-12DR, DDRH-45-15DR, DDRH-45-24DR and DDRH-45-48DR.

  • single output
  • output: 45W
  • overload protection: 110 to 300%
  • withstand voltage: 4000V AC
  • operating temperature: -40 to +80°C
  • weight: 310g

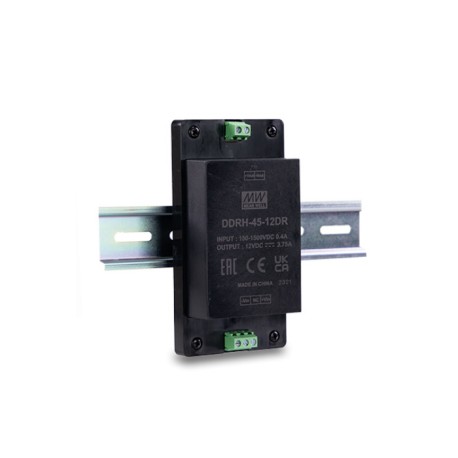

DDRH-45-12DR, Mean Well DC/DC converters, 45W, DIN rail housing, DDRH-45 series

DDRH-45-12DR

243290 DDRH-45-12DR DDRH-45-12DR Mean Well DC/DC converter series DDRH-45. DC/DC converters in a DIN rail housing (TS35/7,5 or 15) with 45W and screw terminals. These devices are suitable for an operating altitude of up to 5000m and have an ultra wide input voltage range (10:1). They have a fanless design, comply with EN55032 class A as well as IEC62109-1 and are protected against overload, voltage reversal, short circuit as well as overvoltage. We offer the following types of this Mean Well series: DDRH-45-12DR, DDRH-45-15DR, DDRH-45-24DR and DDRH-45-48DR. single output output: 45W overload protection: 110 to 300% withstand voltage: 4000V AC operating temperature: -40 to +80°C weight: 310g

Specifications

manufacturer
Manufacturer's name DDRH-45-12DR
Output voltage [V] 12
Input voltage range [V] 150...1500
Efficiency [%] 85
Output current [A] 3,75
Output voltage tolerance: [%] ±2
Ripple [mVp-p] 100
Data Sheet

Unit price

40,39 €

Volume discounts

Quantity Unit price
50 + 39,49 €

Stock: 2
Further delivery:
CW 17/2025
