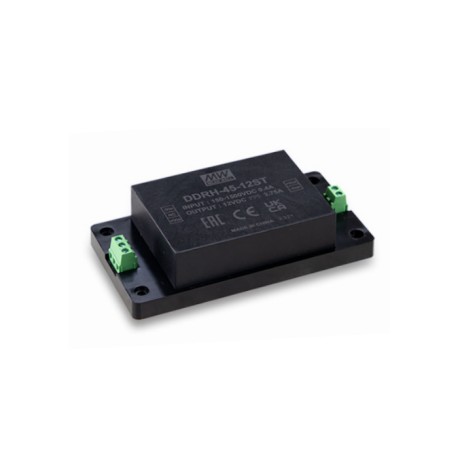

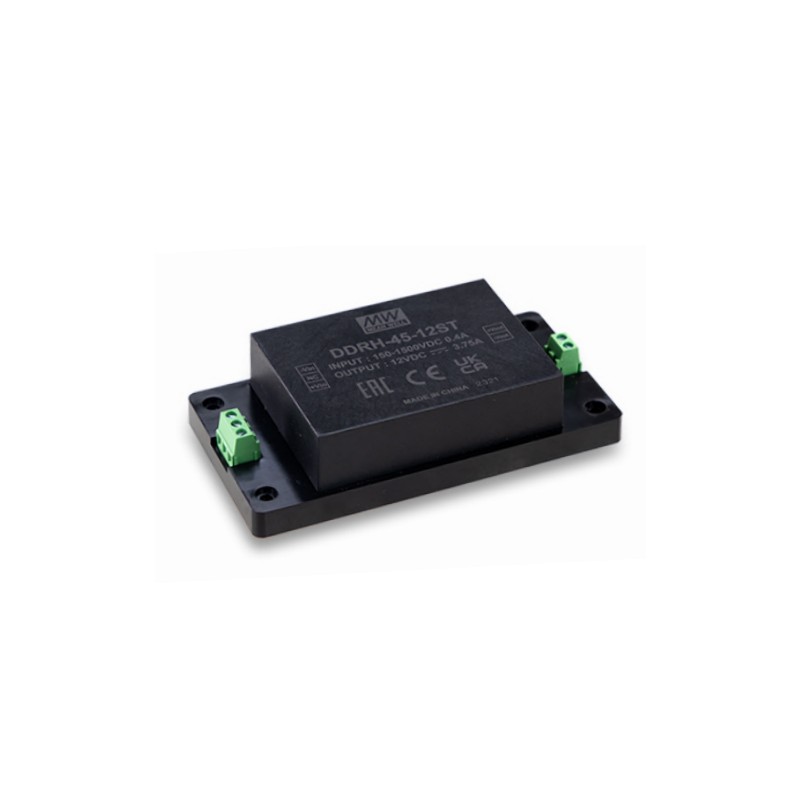

DDRH-45-12ST

Mean Well DC/DC converter series DDRH-45

DC/DC voltage converters in an enclosed housing with 45W and screw terminals. These devices are suitable for an operating altitude of up to 5000m and have an ultra wide input voltage range (10:1). They are protected against overload, short circuit, voltage reversal as well as overvoltae and comply with EN55032 class A as well as IEC62109-1. We offer the following types of this Mean Well series: DDRH-45-12ST, DDRH-45-15ST, DDRH-45-24ST and DDRH-45-48ST.

  • single output
  • output: 45W
  • overload protection: 100 to 300%
  • withstand voltage: 4000V AC
  • operating temperature: -40 to +80°C
  • weight: 305g
DDRH-45-12ST, Mean Well DC/DC converters, 45W, enclosed, DDRH-45 series

DDRH-45-12ST

243278 DDRH-45-12ST DDRH-45-12ST Mean Well DC/DC converter series DDRH-45. DC/DC voltage converters in an enclosed housing with 45W and screw terminals. These devices are suitable for an operating altitude of up to 5000m and have an ultra wide input voltage range (10:1). They are protected against overload, short circuit, voltage reversal as well as overvoltae and comply with EN55032 class A as well as IEC62109-1. We offer the following types of this Mean Well series: DDRH-45-12ST, DDRH-45-15ST, DDRH-45-24ST and DDRH-45-48ST. single output output: 45W overload protection: 100 to 300% withstand voltage: 4000V AC operating temperature: -40 to +80°C weight: 305g

Specifications

manufacturer
Manufacturer's name DDRH-45-12ST
Output voltage [V] 12
Input voltage range [V] 150...1500
Efficiency [%] 85
Output current [A] 3,75
Output voltage tolerance: [%] ±2
Ripple [mVp-p] 100
Data Sheet

Unit price

40,39 €

Volume discounts

Quantity Unit price
50 + 39,49 €

Stock: 18
Further delivery:
CW 12/2025
