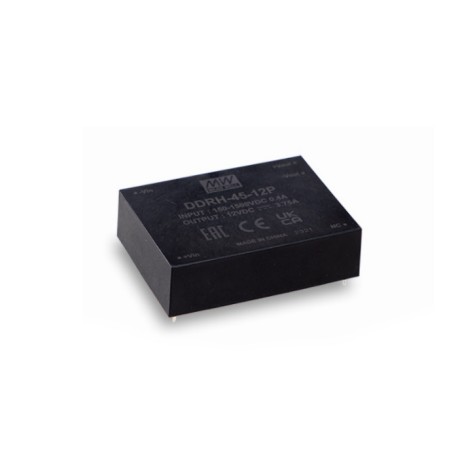

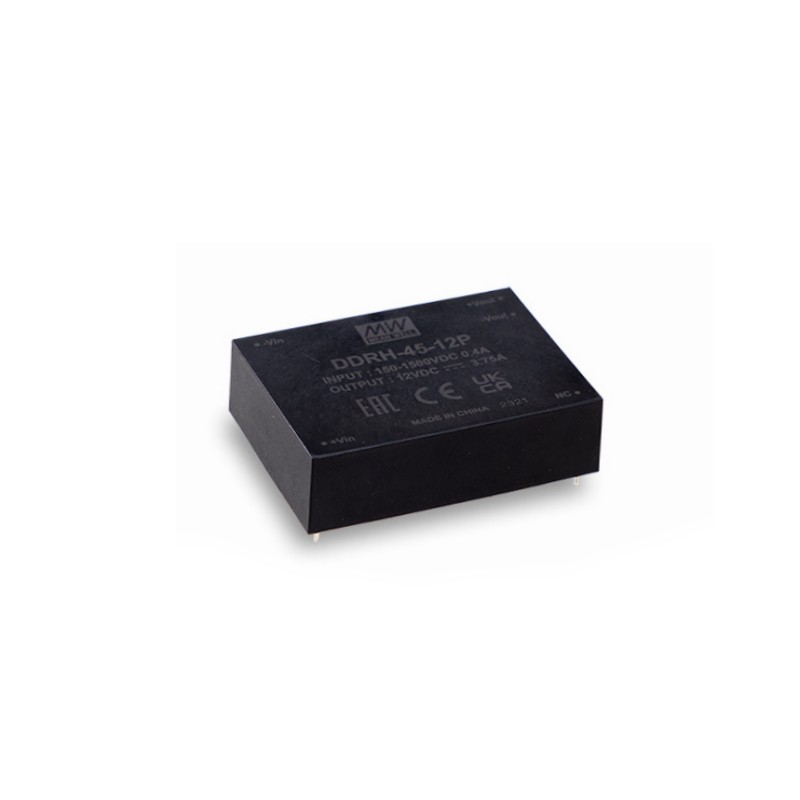

DDRH-45-12P

Mean Well DC/DC converter series DDRH-45

DC/DC voltage converters in an enclosed housing with 45W and a wide operating temperature range. These devices are suitable for an operating altitude of up to 5000m as well as for PCB mounting and comply with IEC62109-1 as well as EN55032 class A. They have an ultra wide input voltage range (10:1) and are protected against overvoltage, overload, short circuit as well as voltage reversal. We offer the following types of this Mean Well series: DDRH-45-12P, DDRH-45-15P, DDRH-45-24P and DDRH-45-48P.

  • single output
  • output: 45W
  • overload protection: 110 to 300%
  • withstand voltage: 4000V AC
  • operating temperature: -40 to +80°C
  • weight: 240g
DDRH-45-12P, Mean Well DC/DC converters, 45W, PCB, DDRH-45 series

DDRH-45-12P

243266 DDRH-45-12P DDRH-45-12P Mean Well DC/DC converter series DDRH-45. DC/DC voltage converters in an enclosed housing with 45W and a wide operating temperature range. These devices are suitable for an operating altitude of up to 5000m as well as for PCB mounting and comply with IEC62109-1 as well as EN55032 class A. They have an ultra wide input voltage range (10:1) and are protected against overvoltage, overload, short circuit as well as voltage reversal. We offer the following types of this Mean Well series: DDRH-45-12P, DDRH-45-15P, DDRH-45-24P and DDRH-45-48P. single output output: 45W overload protection: 110 to 300% withstand voltage: 4000V AC operating temperature: -40 to +80°C weight: 240g

Specifications

manufacturer
Manufacturer's name DDRH-45-12P
Output voltage [V] 12
Input voltage range [V] 150...1500
Efficiency [%] 85
Output current [A] 3,75
Output voltage tolerance: [%] ±2
Ripple [mVp-p] 100
Data Sheet

Unit price

35,69 €

Volume discounts

Quantity Unit price
50 + 34,99 €

Stock: 0
Next incoming goods:
CW 03/2025
6 units

Further delivery:
CW 09/2025
