DDRH-30-15DR

Mean Well DC/DC converter series DDRH-30

DC/DC voltage converters in a DIN rail housing (TS-35/7,5 or 15) with 30W and an ultra wide input voltage range. These devices have screw terminals and are suitable for an operating altitude of up to 5000m. They are protected against overload, overvoltage, short circuit as well as voltage reversal and comply with IEC62109-1 as well as EN55032 class A. We offer the following types of this Mean Well series: DDRH-30-12DR, DDRH-30-15DR, DDRH-30-24DR and DDRH-30-48DR.

  • single output
  • output: 30W
  • overload protection: 110 to 300%
  • withstand voltage: 4000V AC
  • operating temperature: -40 to +80°C
  • weight: 310g

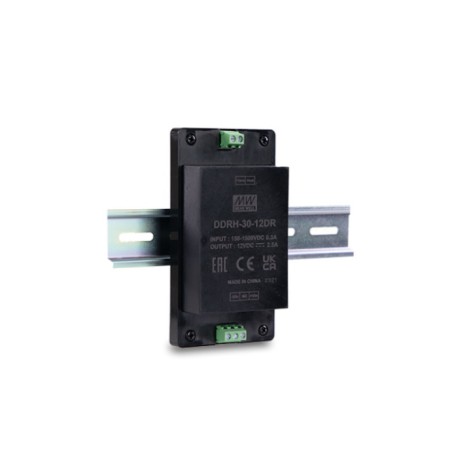

DDRH-30-15DR, Mean Well DC/DC converters, 30W, DIN rail housing, DDRH-30 series

DDRH-30-15DR

243287 DDRH-30-15DR DDRH-30-15DR Mean Well DC/DC converter series DDRH-30. DC/DC voltage converters in a DIN rail housing (TS-35/7,5 or 15) with 30W and an ultra wide input voltage range. These devices have screw terminals and are suitable for an operating altitude of up to 5000m. They are protected against overload, overvoltage, short circuit as well as voltage reversal and comply with IEC62109-1 as well as EN55032 class A. We offer the following types of this Mean Well series: DDRH-30-12DR, DDRH-30-15DR, DDRH-30-24DR and DDRH-30-48DR. single output output: 30W overload protection: 110 to 300% withstand voltage: 4000V AC operating temperature: -40 to +80°C weight: 310g

Specifications

manufacturer
Manufacturer's name DDRH-30-15DR
Output voltage [V] 15
Input voltage range [V] 150...1500
Efficiency [%] 88
Output current [A] 2
Output voltage tolerance: [%] ±2
Ripple [mVp-p] 100
Data Sheet

Unit price

38,09 €

Volume discounts

Quantity Unit price
50 + 37,29 €

Stock: 6
Further delivery:
CW 12/2025
