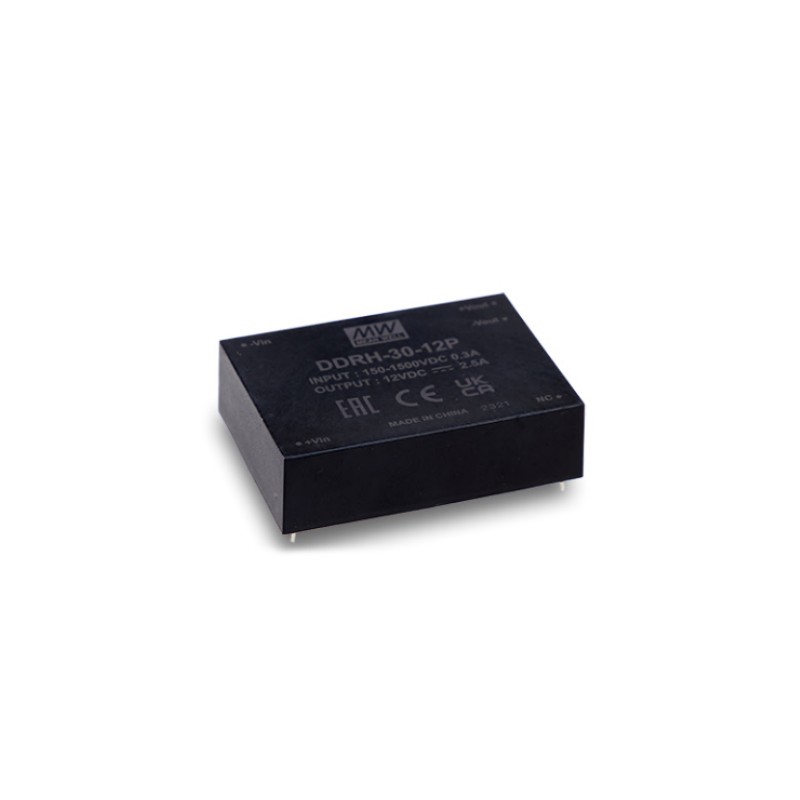

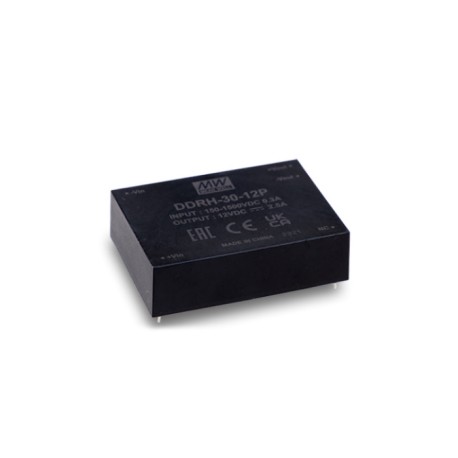

DDRH-30-12P

Mean Well DC/DC converter series DDRH-30

DC/DC voltage converters in an enclosed housing with 30W. These devices are suitable for PCB mounting as well as for an operating altitude of up to 5000m and are protected against overload, short circuit, overvoltage as well as reverse polarity. They have a fanless design and comply with IEC62109-1 as well as EN55032 class A. We offer the following types of this Mean Well series: DDRH-30-12P, DDRH-30-15P, DDRH-30-24P and DDRH-30-48P.

  • single output
  • output: 30W
  • overload protection: 110 to 300%
  • withstand voltage: 4000V AC
  • operating temperature: -40 to +80°C
  • weight: 240g
DDRH-30-12P, Mean Well DC/DC converters, 30W, PCB, DDRH-30 series

DDRH-30-12P

243262 DDRH-30-12P DDRH-30-12P Mean Well DC/DC converter series DDRH-30. DC/DC voltage converters in an enclosed housing with 30W. These devices are suitable for PCB mounting as well as for an operating altitude of up to 5000m and are protected against overload, short circuit, overvoltage as well as reverse polarity. They have a fanless design and comply with IEC62109-1 as well as EN55032 class A. We offer the following types of this Mean Well series: DDRH-30-12P, DDRH-30-15P, DDRH-30-24P and DDRH-30-48P. single output output: 30W overload protection: 110 to 300% withstand voltage: 4000V AC operating temperature: -40 to +80°C weight: 240g

Specifications

manufacturer
Manufacturer's name DDRH-30-12P
Output voltage [V] 12
Input voltage range [V] 150...1500
Efficiency [%] 85
Output current [A] 2,5
Output voltage tolerance: [%] ±2
Ripple [mVp-p] 100
Data Sheet

Unit price

33,39 €

Volume discounts

Quantity Unit price
50 + 32,69 €

Stock: 36
Further delivery:
CW 12/2025
