DDRH-15-15DR

Mean Well DC/DC converter series DDRH-15

DC/DC converters in a DIN rail housing (TS-35/7,5 or 15) with 15W and an ultra-wide input voltage range (10:1). These devices have screw terminals and are protected against overload, short circuit, voltage reversal as well as overvoltage. They have a fanless design, are suitable for an operating altitude of up to 5000m and comply with EN55032 class A as well as IEC62109-1. We offer the following types of this Mean Well series: DDRH-15-05DR, DDRH-15-12DR, DDRH-15-15DR and DDRH-15-24DR.

  • single output
  • output: 15W
  • overload protection: 110 to 300%
  • withstand voltage: 4000V AC
  • operating temperature: -40 to +80°C
  • weight: 215g

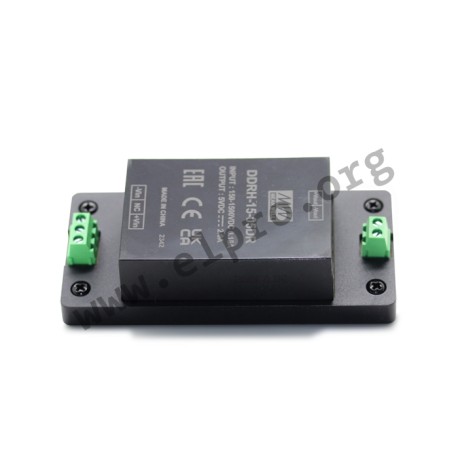

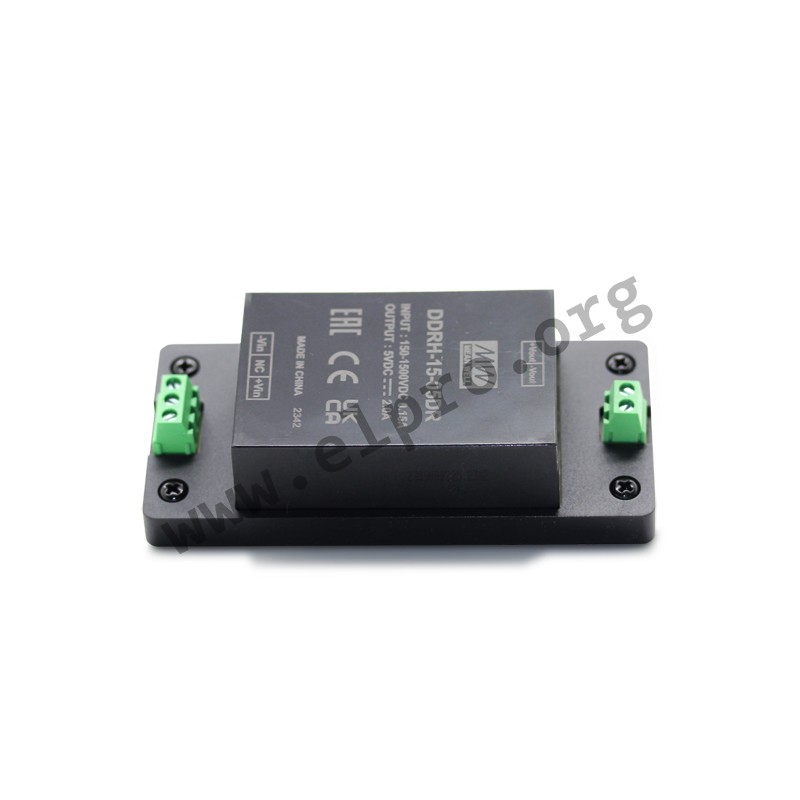

DDRH-15-15DR, Mean Well DC/DC converters, 15W, DIN rail housing, DDRH-15 series

DDRH-15-15DR

243284 DDRH-15-15DR DDRH-15-15DR Mean Well DC/DC converter series DDRH-15. DC/DC converters in a DIN rail housing (TS-35/7,5 or 15) with 15W and an ultra-wide input voltage range (10:1). These devices have screw terminals and are protected against overload, short circuit, voltage reversal as well as overvoltage. They have a fanless design, are suitable for an operating altitude of up to 5000m and comply with EN55032 class A as well as IEC62109-1. We offer the following types of this Mean Well series: DDRH-15-05DR, DDRH-15-12DR, DDRH-15-15DR and DDRH-15-24DR. single output output: 15W overload protection: 110 to 300% withstand voltage: 4000V AC operating temperature: -40 to +80°C weight: 215g

Specifications

manufacturer
Manufacturer's name DDRH-15-15DR
Output voltage [V] 15
Input voltage range [V] 150...1500
Efficiency [%] 87
Output current [A] 1
Output voltage tolerance: [%] ±2
Ripple [mVp-p] 100
Data Sheet

Unit price

32,59 €

Volume discounts

Quantity Unit price
50 + 31,89 €

Stock: 6
Further delivery:
CW 09/2025
