DDRH-15-12ST

Mean Well DC/DC converter series DDRH-15

DC/DC converters in an enclosed housing with 15W and screw terminals. These devices have a fanless design and are suitable for an operating altitude of up to 5000m. They have a wide input voltage range (10:1), are protected against overload, short circuit, voltage reversal as well as overvoltage and comply with IEC62109-1 as well as EN55032 class A. We offer the following types of this Mean Well series: DDRH-15-05ST, DDRH-15-12ST, DDRH-15-15ST and DDRH-15-24ST.

  • single output
  • output: 15W
  • overload protection: 110 to 300%
  • withstand voltage: 4000V AC
  • operating temperature: -40 to +80°C
  • weight: 210g

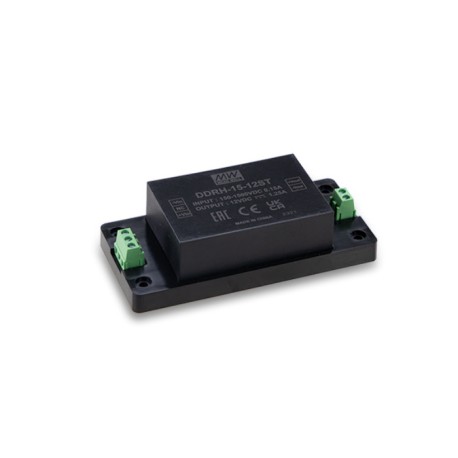

DDRH-15-12ST, Mean Well DC/DC converters, 15W, enclosed, DDRH-15 series

DDRH-15-12ST

243271 DDRH-15-12ST DDRH-15-12ST Mean Well DC/DC converter series DDRH-15. DC/DC converters in an enclosed housing with 15W and screw terminals. These devices have a fanless design and are suitable for an operating altitude of up to 5000m. They have a wide input voltage range (10:1), are protected against overload, short circuit, voltage reversal as well as overvoltage and comply with IEC62109-1 as well as EN55032 class A. We offer the following types of this Mean Well series: DDRH-15-05ST, DDRH-15-12ST, DDRH-15-15ST and DDRH-15-24ST. single output output: 15W overload protection: 110 to 300% withstand voltage: 4000V AC operating temperature: -40 to +80°C weight: 210g

Specifications

manufacturer
Manufacturer's name DDRH-15-12ST
Output voltage [V] 12
Input voltage range [V] 150...1500
Efficiency [%] 79
Output current [A] 1,25
Output voltage tolerance: [%] ±2
Ripple [mVp-p] 100
Data Sheet

Unit price

32,59 €

Volume discounts

Quantity Unit price
50 + 31,89 €

Stock: 6
Further delivery:
CW 12/2025
