DDRH-15-15P

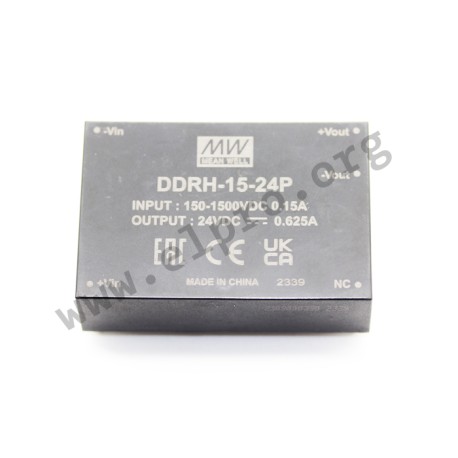

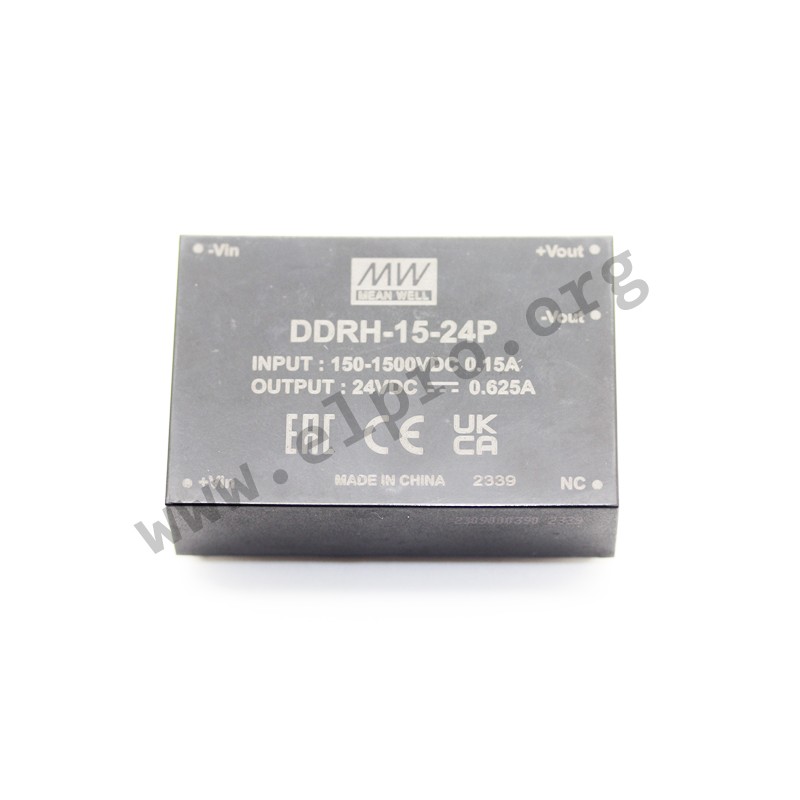

Mean Well DC/DC converter series DDRH-15

DC/DC voltage converters in an enclosed housing with 15W and a fanless design. These devices are suitable for PCB mounting and have an input voltage ratio of 10:1. They are protected against overload, short circuit as well as overvoltage, are suitable for an operating altitude of up to 5000m and comply with EN55032 class A as well as IEC62109-1. We offer the following types of this Mean Well series: DDRH-15-05P, DDRH-15-12P, DDRH-15-15P and DDRH-15-24P.

  • single output
  • output: 15W
  • overload protection: 110 to 130%
  • withstand voltage: 4000V AC
  • operating temperature: -40 to +80°C
  • weight: 170g
DDRH-15-15P, Mean Well DC/DC converters, 15W, PCB, DDRH-15 series

DDRH-15-15P

243260 DDRH-15-15P DDRH-15-15P Mean Well DC/DC converter series DDRH-15. DC/DC voltage converters in an enclosed housing with 15W and a fanless design. These devices are suitable for PCB mounting and have an input voltage ratio of 10:1. They are protected against overload, short circuit as well as overvoltage, are suitable for an operating altitude of up to 5000m and comply with EN55032 class A as well as IEC62109-1. We offer the following types of this Mean Well series: DDRH-15-05P, DDRH-15-12P, DDRH-15-15P and DDRH-15-24P. single output output: 15W overload protection: 110 to 130% withstand voltage: 4000V AC operating temperature: -40 to +80°C weight: 170g

Specifications

manufacturer
Manufacturer's name DDRH-15-15P
Output voltage [V] 15
Input voltage range [V] 150...1500
Efficiency [%] 87
Output current [A] 1
Output voltage tolerance: [%] ±2
Ripple [mVp-p] 100
Data Sheet

Unit price

29,09 €

Volume discounts

Quantity Unit price
50 + 27,39 €

Stock: 13
Further delivery:
CW 16/2025
