DDRH-120-32

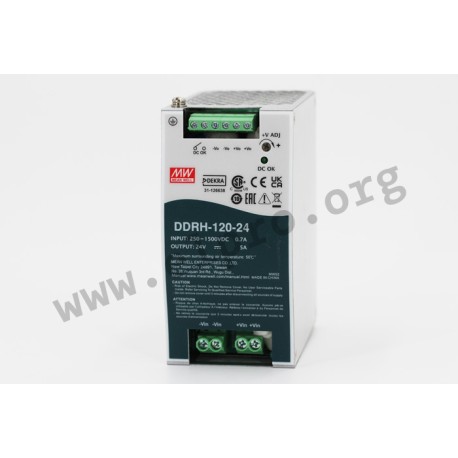

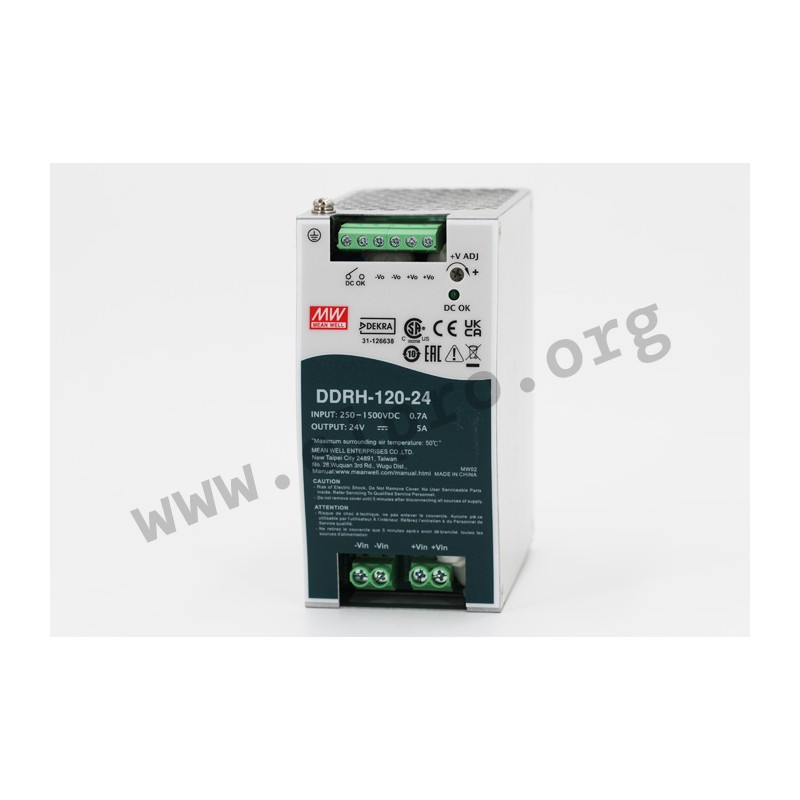

Mean Well DC/DC converter series DDRH-120

DC/DC converters in a DIN rail housing (TS-35/7,5/15) with 120W, a regulated output voltage, a DC OK relay contact and an input voltage ratio of 6:1. These devices have a width of only 63mm, a fanless design and are protected against overload, short circuit, DC input reverse polarity, overtemperature as well as overvoltage. They are suitable for an operating altitude of up to 5000m and comply with IEC62109-1, EN62109-1 as well as EN55032 class A. We offer the following types of this Mean Well series: DDRH-120-12, DDRH-120-24, DDRH-120-32 and DDRH-120-48.

  • single output
  • output: 100,8 to 120W
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 2000V AC
  • operating temperature: -40 to +80°C
  • weight: 845g

DDRH-120-32

242701 DDRH-120-32 DDRH-120-32 4711287486833 Mean Well DC/DC converter series DDRH-120. DC/DC converters in a DIN rail housing (TS-35/7,5/15) with 120W, a regulated output voltage, a DC OK relay contact and an input voltage ratio of 6:1. These devices have a width of only 63mm, a fanless design and are protected against overload, short circuit, DC input reverse polarity, overtemperature as well as overvoltage. They are suitable for an operating altitude of up to 5000m and comply with IEC62109-1, EN62109-1 as well as EN55032 class A. We offer the following types of this Mean Well series: DDRH-120-12, DDRH-120-24, DDRH-120-32 and DDRH-120-48. single output output: 100,8 to 120W overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 2000V AC operating temperature: -40 to +80°C weight: 845g

Specifications

manufacturer
Manufacturer's name DDRH-120-32
GTIN 4711287486833
Output voltage [V] 32
Efficiency [%] 87
Output current range [A] 0...3,75
Output voltage tolerance: [%] 1
Output voltage adjustment [V] 30...36
Ripple [mVp-p] 240
Input voltage [V DC] 250...1500
Data Sheet

Unit price

49,99 €

Volume discounts

Quantity Unit price
50 + 48,89 €

Stock: 11
Further delivery:
CW 09/2025
