DDR-480B-12

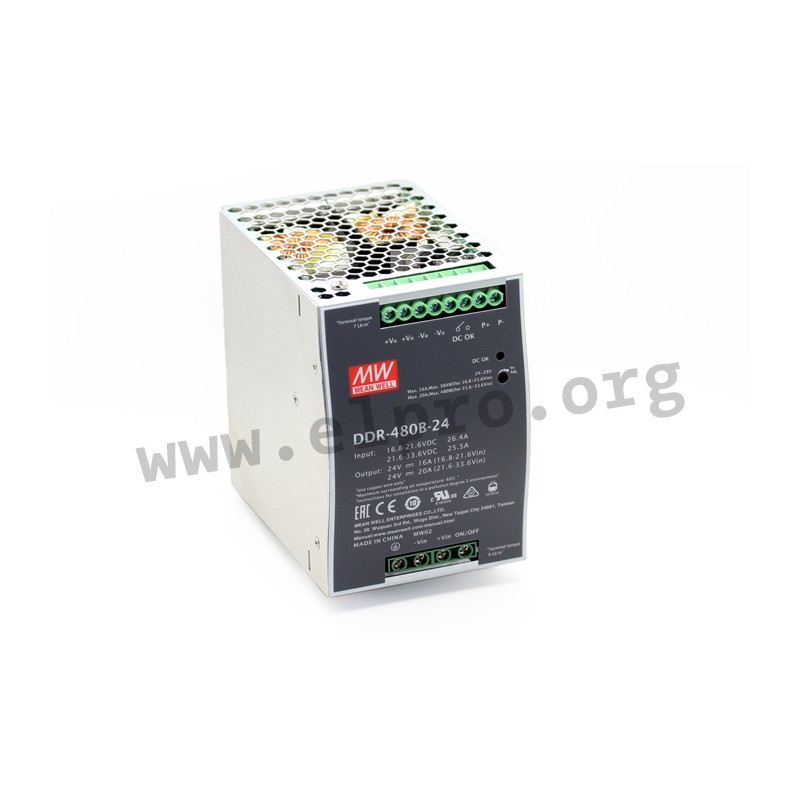

Mean Well DC/DC converter series DDR-480

Converter modules in a DIN rail housing (TS-35/7.5 or 15) with 480W, an input voltage ratio of 2:1, 150% peak load capability and a regulated output voltage. These devices have a fanless design (cooling by free air convection) and are protected against short circuit, overload, overvoltage, overtemperature as well as voltage reversal. They have a width of 85,5mm and comply with EN55032 class A, UL62368-1 as well as IEC62368-1. We offer the following types of this Mean Well series: DDR-480B-12, DDR-480B-24, DDR-480B-48, DDR-480C-12, DDR-480C-24, DDR-480C-48, DDR-480D-12, DDR-480D-24 and DDR-480D-48.

  • single output
  • output: 400,8 to 480W
  • output voltage tolerance: ±1%
  • operating temperature: -40 to +80°C
  • withstand voltage I/P-O/P: 4000V DC
  • withstand voltage I/P-FG: 2500V DC
  • withstand voltage O/P-FG: 710V DC
  • dimensions: 85,5x125,2x128,5mm
  • weight: 1375g

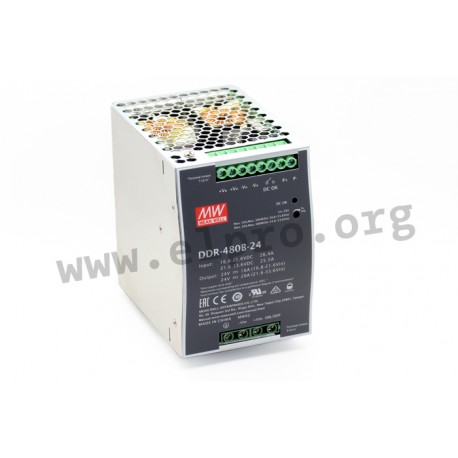

DDR-480B-12, Mean Well DC/DC converters, 480W, DIN rail housing, DDR-480 series

DDR-480B-12

235325 DDR-480B-12 DDR-480B-12 4711287423234 Mean Well DC/DC converter series DDR-480. Converter modules in a DIN rail housing (TS-35/7.5 or 15) with 480W, an input voltage ratio of 2:1, 150% peak load capability and a regulated output voltage. These devices have a fanless design (cooling by free air convection) and are protected against short circuit, overload, overvoltage, overtemperature as well as voltage reversal. They have a width of 85,5mm and comply with EN55032 class A, UL62368-1 as well as IEC62368-1. We offer the following types of this Mean Well series: DDR-480B-12, DDR-480B-24, DDR-480B-48, DDR-480C-12, DDR-480C-24, DDR-480C-48, DDR-480D-12, DDR-480D-24 and DDR-480D-48. single output output: 400,8 to 480W output voltage tolerance: ±1% operating temperature: -40 to +80°C withstand voltage I/P-O/P: 4000V DC withstand voltage I/P-FG: 2500V DC withstand voltage O/P-FG: 710V DC dimensions: 85,5x125,2x128,5mm weight: 1375g

Specifications

manufacturer
Manufacturer's name DDR-480B-12
GTIN 4711287423234
Output voltage [V] 12
Input voltage range [V] 16,8...33,6
Efficiency [%] 90
Output current [A] 33,4
Ripple [mVp-p] 100
Data Sheet

Unit price

182,29 €

Volume discounts

Quantity Unit price
50 + 179,19 €

Stock: 5
Further delivery:
CW 12/2025
