DDR-240B-48

Mean Well DC/DC converter series DDR-240

DC/DC converters with a 150% peak load capability, an adjustable DC output and an undervoltage lockout. These devices with a width of only 40mm, an input/output insulation of 4000V DC and an ultra wide input voltage ratio of 2:1 can be mounted on a DIN rails (TS-35/7.5 or 15) and have a cooling by free air convection. They are protected against overtemperature, overvoltage, overload as well as short circuit. We offer the following types of this Mean Well series: DDR-240B-24, DDR-240B-48, DDR-240C-24, DDR-240C-48, DDR-240D-24 and DDR-240D-48.

  • single output
  • output: 240W
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V DC
  • withstand voltage I/P-FG: 2500V DC
  • withstand voltage O/P-FG: 710V DC
  • operating temperature: -40 to +70°C
  • weight: 760g

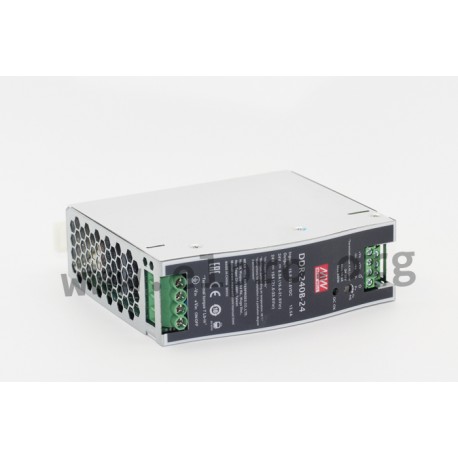

Mean Well DDR-240 series

DDR-240B-48

112259 DDR-240B-48 DDR-240B-48 4711287423142 Mean Well DC/DC converter series DDR-240. DC/DC converters with a 150% peak load capability, an adjustable DC output and an undervoltage lockout. These devices with a width of only 40mm, an input/output insulation of 4000V DC and an ultra wide input voltage ratio of 2:1 can be mounted on a DIN rails (TS-35/7.5 or 15) and have a cooling by free air convection. They are protected against overtemperature, overvoltage, overload as well as short circuit. We offer the following types of this Mean Well series: DDR-240B-24, DDR-240B-48, DDR-240C-24, DDR-240C-48, DDR-240D-24 and DDR-240D-48. single output output: 240W overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V DC withstand voltage I/P-FG: 2500V DC withstand voltage O/P-FG: 710V DC operating temperature: -40 to +70°C weight: 760g

Specifications

manufacturer
Manufacturer's name DDR-240B-48
GTIN 4711287423142
Output voltage [V] 48
Efficiency [%] 90
Output current range [A] 0...5
Output voltage tolerance: [%] 1
Output voltage adjustment [V] 48...56
Ripple [mVp-p] 100
Input voltage [V DC] 16,8...33,6
Data Sheet

Unit price

82,29 €

Volume discounts

Quantity Unit price
50 + 80,49 €

Stock: 114
Further delivery:
CW 12/2025
