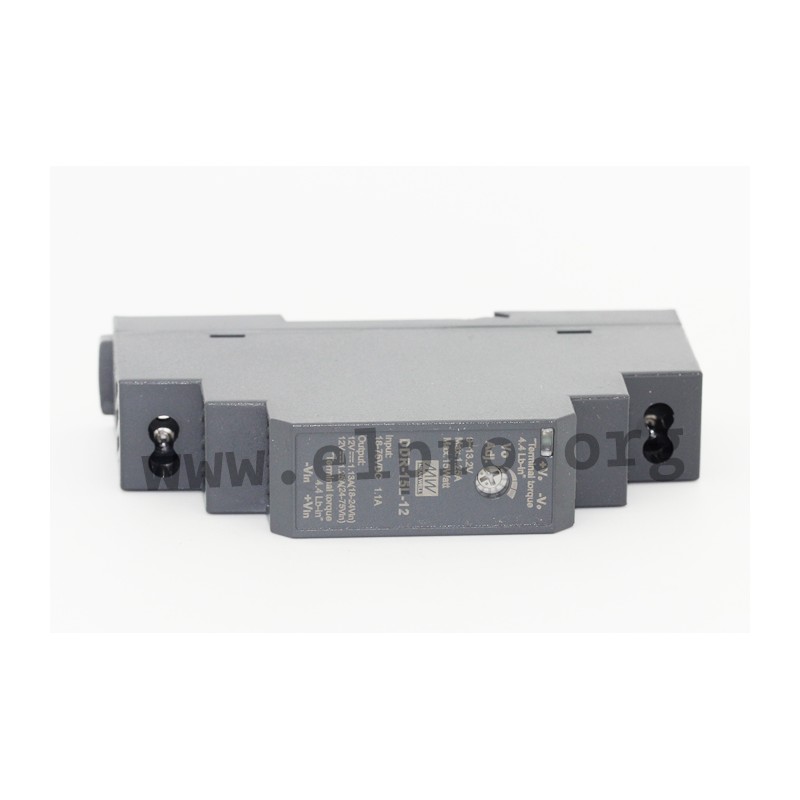

DDR-15G-3.3

Mean Well DC/DC converter series DDR-15

DC/DC converters in a DIN rail housing (TS-35/7.5 or 15) with 15W, an input voltage ratio of 4:1 and an adjustable DC output (±10%). These devices require no minimum load and are protected against overload, input voltage reversal, overvoltage as well as short circuit. They have a fanless design and comply with UL62368-1, IEC6238-1 as well as EN55032 class B. We offer the following types of this Mean Well series: DDR-15G-3.3, DDR-15G-5, DDR-15G-12, DDR-15G-15, DDR-15G-24, DDR-15L-3.3, DDR-15L-5, DDR-15L-12, DDR-15L-15 and DDR-15L-24.

  • single output
  • output: 15W
  • overload protection: 110 to 150%
  • withstand voltage: 4000V DC
  • operating temperature: -40 to +85°C
  • weight: 68g
Mean Well DDR-15 series

DDR-15G-3.3

111970 DDR-15G-3.3 DDR-15G-3.3 4711287422954 Mean Well DC/DC converter series DDR-15. DC/DC converters in a DIN rail housing (TS-35/7.5 or 15) with 15W, an input voltage ratio of 4:1 and an adjustable DC output (±10%). These devices require no minimum load and are protected against overload, input voltage reversal, overvoltage as well as short circuit. They have a fanless design and comply with UL62368-1, IEC6238-1 as well as EN55032 class B. We offer the following types of this Mean Well series: DDR-15G-3.3, DDR-15G-5, DDR-15G-12, DDR-15G-15, DDR-15G-24, DDR-15L-3.3, DDR-15L-5, DDR-15L-12, DDR-15L-15 and DDR-15L-24. single output output: 15W overload protection: 110 to 150% withstand voltage: 4000V DC operating temperature: -40 to +85°C weight: 68g

Specifications

manufacturer
Manufacturer's name DDR-15G-3.3
GTIN 4711287422954
Output voltage [V] 3,3
Efficiency [%] 84
Output current range [A] 0...3,5
Output voltage tolerance: [%] 2
Output voltage adjustment [V] 3...3,6
Ripple [mVp-p] 50
Input voltage [V DC] 9...36
Data Sheet
