DDR-120C-24

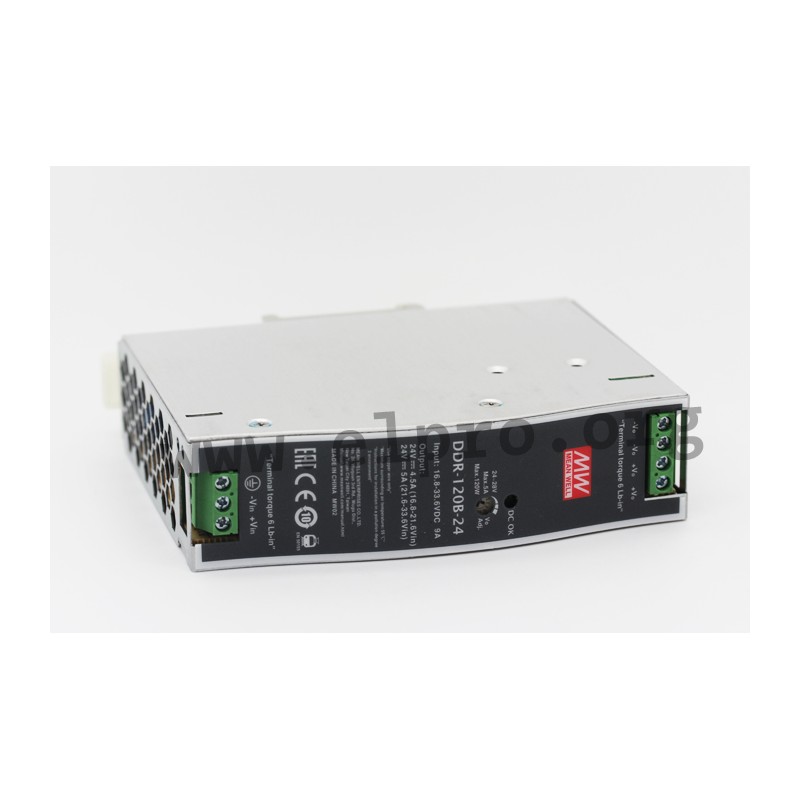

Mean Well DC/DC converter series DDR-120

DC/DC converters in a DIN rail housing (TS-35/7.5 or 15) with 120W, an input voltage ratio of 2:1, a small width (32mm) and an adjustable DC output. These devices have a fanless design and are protected against overload, input voltage reversal, overvoltage as well as short circuit. They have a peak load capability of 150% and comply with EN55032 class B, IEC62368-1 as well as UL62368-1. We offer the following types of this Mean Well series: DDR-120A-12, DDR-120A-24, DDR-120A-48, DDR-120B-12, DDR-120B-24, DDR-120B-48, DDR-120C-12, DDR-120C-24, DDR-120C-48, DDR-120D-12, DDR-120D-24 and DDR-120D-48.

  • single output
  • output: 120W
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V DC
  • withstand voltage I/P-FG: 2500V DC
  • withstand voltage O/P-FG: 2500V DC
  • operating temperature: -40 to +70°C
  • weight: 510g
Mean Well DDR-120 series

DDR-120C-24

112003 DDR-120C-24 DDR-120C-24 4711287423081 Mean Well DC/DC converter series DDR-120. DC/DC converters in a DIN rail housing (TS-35/7.5 or 15) with 120W, an input voltage ratio of 2:1, a small width (32mm) and an adjustable DC output. These devices have a fanless design and are protected against overload, input voltage reversal, overvoltage as well as short circuit. They have a peak load capability of 150% and comply with EN55032 class B, IEC62368-1 as well as UL62368-1. We offer the following types of this Mean Well series: DDR-120A-12, DDR-120A-24, DDR-120A-48, DDR-120B-12, DDR-120B-24, DDR-120B-48, DDR-120C-12, DDR-120C-24, DDR-120C-48, DDR-120D-12, DDR-120D-24 and DDR-120D-48. single output output: 120W overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V DC withstand voltage I/P-FG: 2500V DC withstand voltage O/P-FG: 2500V DC operating temperature: -40 to +70°C weight: 510g

Specifications

manufacturer
Manufacturer's name DDR-120C-24
GTIN 4711287423081
Output voltage [V] 24
Efficiency [%] 91
Output current range [A] 0...5
Output voltage tolerance: [%] 1
Output voltage adjustment [V] 24...28
Ripple [mVp-p] 50
Input voltage [V DC] 33,6...67,2
Data Sheet

Unit price

51,49 €

Volume discounts

Quantity Unit price
50 + 50,19 €

Stock: 195
Further delivery:
CW 12/2025
