DCWN06C-05

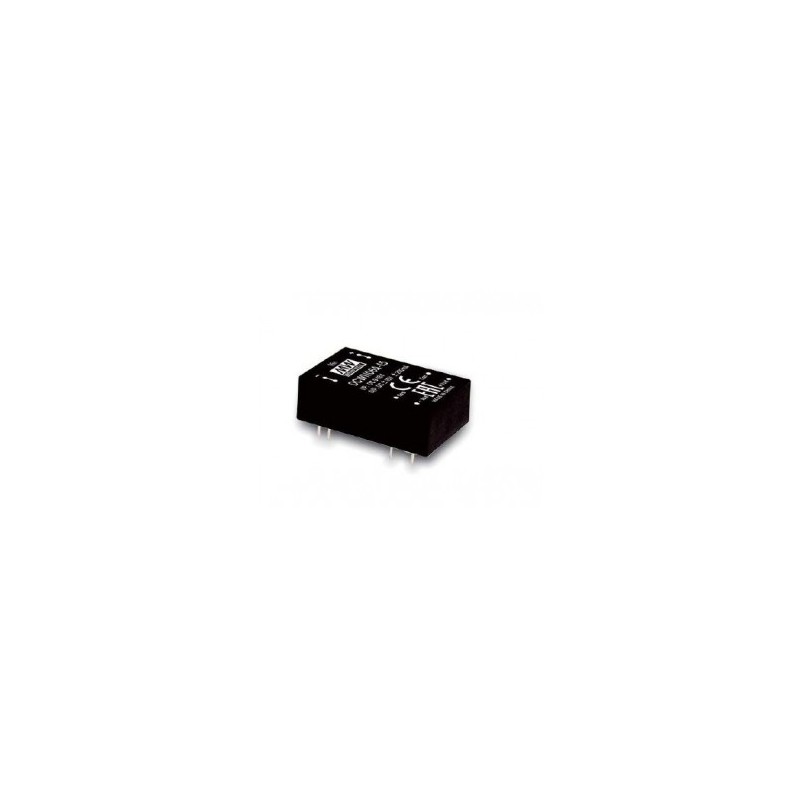

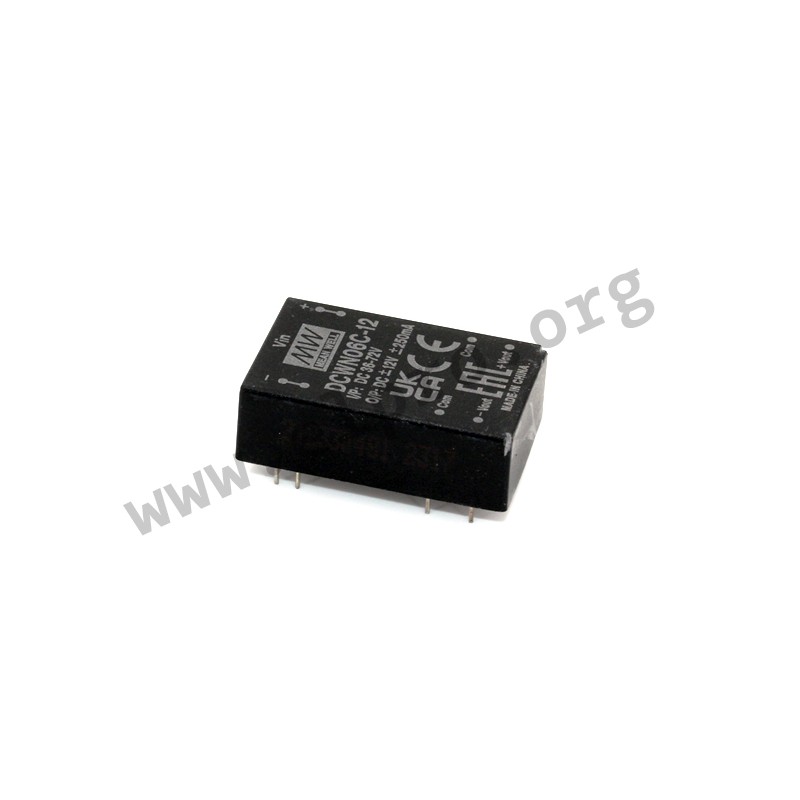

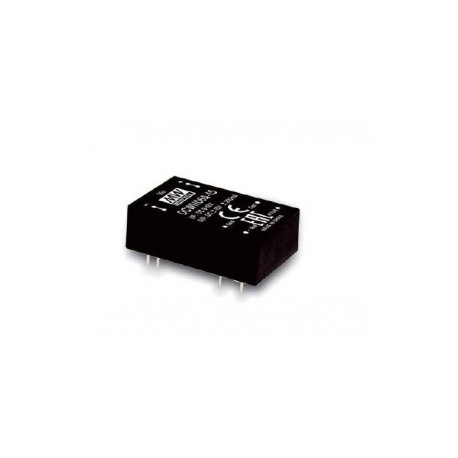

Mean Well DC/DC converter series DCWN06

Regulated DC/DC converters in a DIL24 housing with 6W and an input voltage ratio of 2:1. These devices are suitable for PCB mounting and are protected against overload, input undervoltage as well as short circuit (continuous). They require no minimum load and comply with EN55032 class A (without additional components). We offer the following types of this Mean Well series: DCWN06A-05, DCWN06A-12, DCWN06A-15, DCWN06B-05, DCWN06B-12, DCWN06B-15, DCWN06C-05, DCWN06C-12 and DCWN06C-15.

  • dual output
  • output: 6W
  • output voltage tolerance: ±1,5%
  • maximal ripple and noise: 50mVpp
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +90°C
  • weight: 12,5g
Mean Well DCWN06 series

DCWN06C-05

111959 DCWN06C-05 DCWN06C-05 4711287475776 Mean Well DC/DC converter series DCWN06. Regulated DC/DC converters in a DIL24 housing with 6W and an input voltage ratio of 2:1. These devices are suitable for PCB mounting and are protected against overload, input undervoltage as well as short circuit (continuous). They require no minimum load and comply with EN55032 class A (without additional components). We offer the following types of this Mean Well series: DCWN06A-05, DCWN06A-12, DCWN06A-15, DCWN06B-05, DCWN06B-12, DCWN06B-15, DCWN06C-05, DCWN06C-12 and DCWN06C-15. dual output output: 6W output voltage tolerance: ±1,5% maximal ripple and noise: 50mVpp withstand voltage: 3000V DC operating temperature: -40 to +90°C weight: 12,5g

Specifications

manufacturer
Manufacturer's name DCWN06C-05
GTIN 4711287475776
Input voltage [V] 36...72
Output voltage [V] ±5
Output current range [mA] ±0...500
Efficiency [%] 83
Ripple [mVp-p] 50
Data Sheet

Unit price

8,69 €

Volume discounts

Quantity Unit price
50 + 8,09 €

Stock: 66
Further delivery:
CW 18/2025
