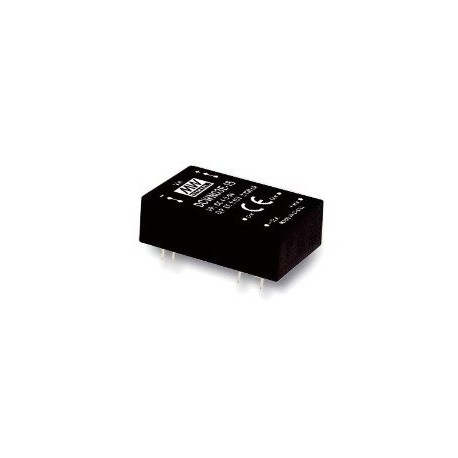

DCWN03E-15

Mean Well DC/DC converter series DCWN03

Regulated DC/DC converters in a DIL24 housing with 3W and an input voltage ratio of 2:1. These devices are suitable for PCB mounting and are protected against overload, input undervoltage as well as short circuit (continuous). They require no minimum load and comply with EN55032 class A. We offer the following types of this Mean Well series: DCWN03E-05, DCWN03E-12, DCWN03E-15, DCWN03A-05, DCWN03A-12, DCWN03A-15, DCWN03B-05, DCWN03B-12, DCWN03B-15, DCWN03C-05, DCWN03C-12 and DCWN03C-15.

  • dual output
  • output: 3W
  • output voltage tolerance: ±1,5%
  • maximal ripple and noise: 50mVpp
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +90°C
  • weight: 12,5g
Meanwell DCWN03 series

DCWN03E-15

110489 DCWN03E-15 DCWN03E-15 4711287475493 Mean Well DC/DC converter series DCWN03. Regulated DC/DC converters in a DIL24 housing with 3W and an input voltage ratio of 2:1. These devices are suitable for PCB mounting and are protected against overload, input undervoltage as well as short circuit (continuous). They require no minimum load and comply with EN55032 class A. We offer the following types of this Mean Well series: DCWN03E-05, DCWN03E-12, DCWN03E-15, DCWN03A-05, DCWN03A-12, DCWN03A-15, DCWN03B-05, DCWN03B-12, DCWN03B-15, DCWN03C-05, DCWN03C-12 and DCWN03C-15. dual output output: 3W output voltage tolerance: ±1,5% maximal ripple and noise: 50mVpp withstand voltage: 3000V DC operating temperature: -40 to +90°C weight: 12,5g

Specifications

manufacturer
Manufacturer's name DCWN03E-15
GTIN 4711287475493
Input voltage [V] 4,5...9
Output voltage [V] ±15
Output current range [mA] ±0...100
Efficiency [%] 80
Data Sheet

Unit price

7,89 €

Volume discounts

Quantity Unit price
50 + 7,39 €

Stock: 0
Next incoming goods:
CW 18/2025
24 units

Further delivery:
CW 22/2025
