DCW 08A-12

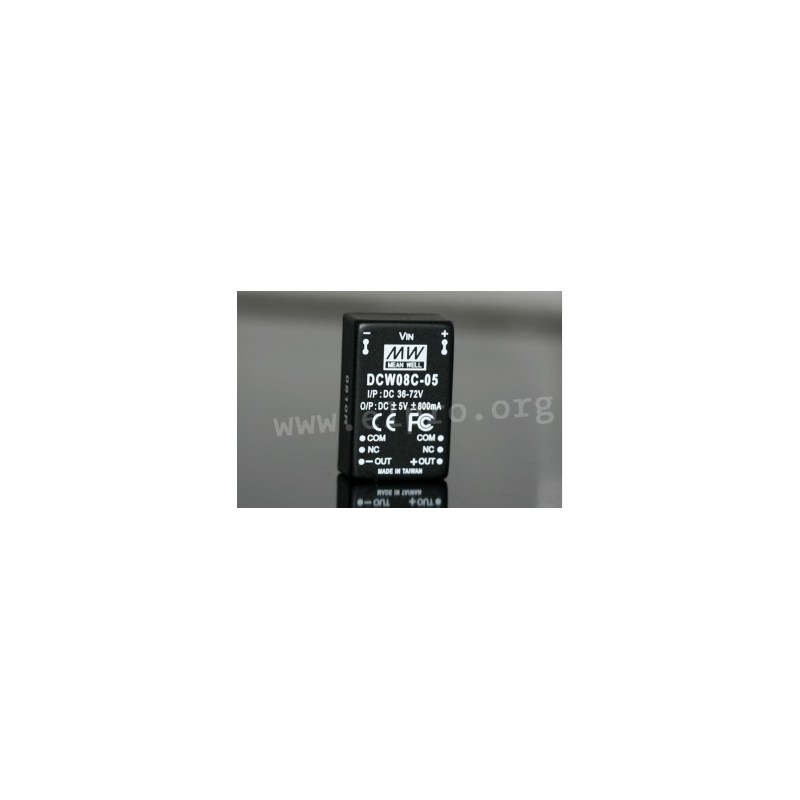

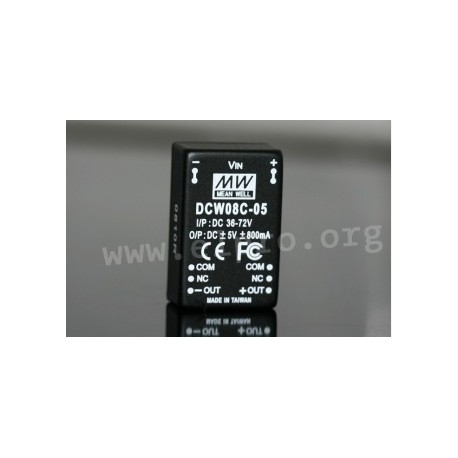

Mean Well DC/DC converter series DCW08

DC/DC converters in a DIL24 housing with 8W, a regulated output voltage, an input voltage ratio of 2:1 and a built-in EMI filter. These devices are suitable for PCB mounting and are protected against overload as well as short circuit. They have a galvanic isolation of input/output and comply with EN55032 class B. We offer the following types of this Mean Well series: DCW08A-05, DCW08A-12, DCW08A-15, DCW08B-05, DCW08B-12, DCW08B-15, DCW08C-05, DCW08C-12 and DCW08C-15.

  • dual output
  • output: 8W
  • overload protection: 110 to 250%
  • withstand voltage: 1000V DC
  • operating temperature: -40 to +71°C
  • weight: 15g
Meanwell DCW08 series

DCW 08A-12

30481 DCW 08A-12 DCW08A-12 DCW08A-12 Mean Well DC/DC converter series DCW08. DC/DC converters in a DIL24 housing with 8W, a regulated output voltage, an input voltage ratio of 2:1 and a built-in EMI filter. These devices are suitable for PCB mounting and are protected against overload as well as short circuit. They have a galvanic isolation of input/output and comply with EN55032 class B. We offer the following types of this Mean Well series: DCW08A-05, DCW08A-12, DCW08A-15, DCW08B-05, DCW08B-12, DCW08B-15, DCW08C-05, DCW08C-12 and DCW08C-15. dual output output: 8W overload protection: 110 to 250% withstand voltage: 1000V DC operating temperature: -40 to +71°C weight: 15g

Specifications

manufacturer
Manufacturer's name DCW08A-12
Case DIL 24 case
Input [V DC] 9...18
Output [V] 12
Output [mA] 66...335
Efficiency [%] 80
Output2 [mA] -66...-335
Ripple [mV] 60
Output2 [V] -12
Data Sheet

Unit price

14,49 €

Volume discounts

Quantity Unit price
50 + 13,49 €

Stock: 1
Further delivery:
CW 22/2025
