DBR-3200-48

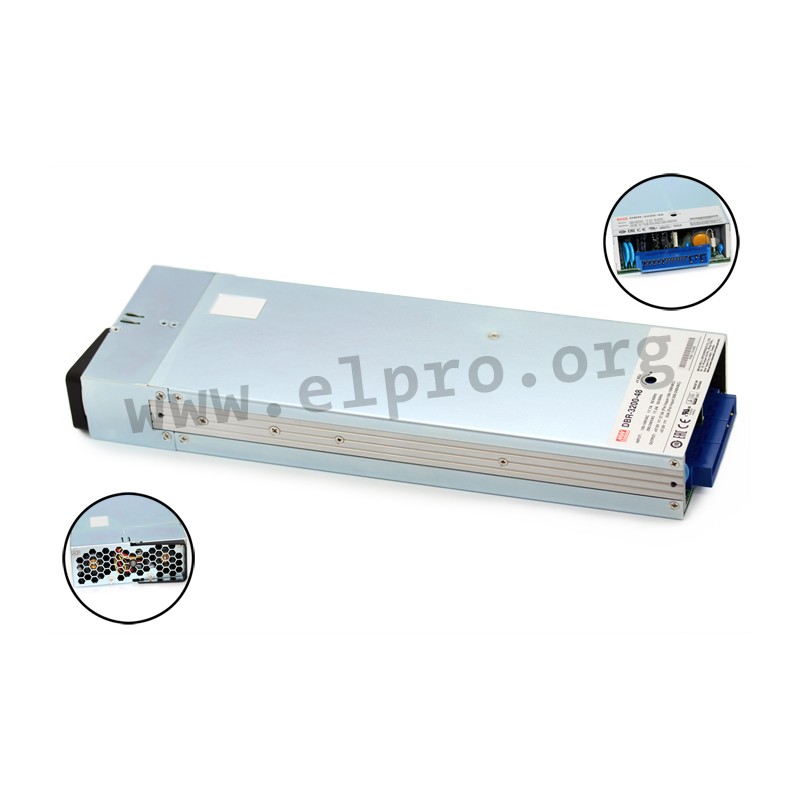

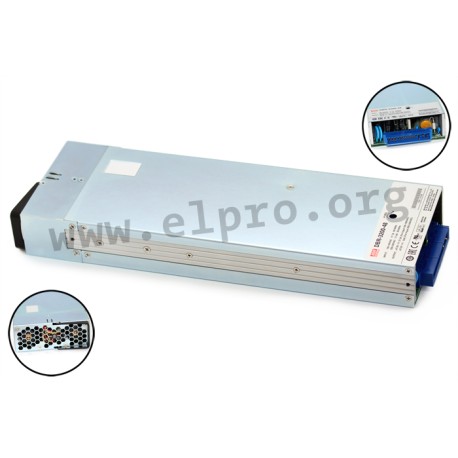

Mean Well charger series DBR-3200

Battery chargers for Li-ion/lead-acid batteries with 3200W, a parallel function (up to 12.800W), a built-in OR-ing FET, a built-in I²C interface, a PMBus protocol, a 3 stage programmable charging curve, a universal input and a DC fan. These devices have a built-in active PFC function and are protected against overvoltage, overtemperature, battery undervoltage as well as short circuit. They are rack-mountable (1U), have a programmable output voltage / output current and comply with EN55032 class A, EN55032 class B, EN55011 class A as well as EN55011 class B. We offer the following types of this Mean Well series: DBR-3200-24 and DBR-3200-48.

  • single output
  • output: 3200W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 55A
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -30 to +70°C
  • dimensions: 325x107x41mm
  • weight: 2650g
DBR-3200-48, Mean Well battery chargers, 3200W, for lead-acid and Li-ion batteries, parallel function, rack-mountable (1U), DBR-

DBR-3200-48

112257 DBR-3200-48 DBR-3200-48 4711232761213 Mean Well charger series DBR-3200. Battery chargers for Li-ion/lead-acid batteries with 3200W, a parallel function (up to 12.800W), a built-in OR-ing FET, a built-in I²C interface, a PMBus protocol, a 3 stage programmable charging curve, a universal input and a DC fan. These devices have a built-in active PFC function and are protected against overvoltage, overtemperature, battery undervoltage as well as short circuit. They are rack-mountable (1U), have a programmable output voltage / output current and comply with EN55032 class A, EN55032 class B, EN55011 class A as well as EN55011 class B. We offer the following types of this Mean Well series: DBR-3200-24 and DBR-3200-48. single output output: 3200W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 55A withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -30 to +70°C dimensions: 325x107x41mm weight: 2650g

Specifications

manufacturer
Manufacturer's name DBR-3200-48
GTIN 4711232761213
Charging voltage [V] 57,6
Float charge voltage [V] 55,2
Recommended accu capacity [Ah] 180...550
Efficiency [%] 94,5
Output current [A] 55
Data Sheet

Unit price

640,19 €

Stock: 3
