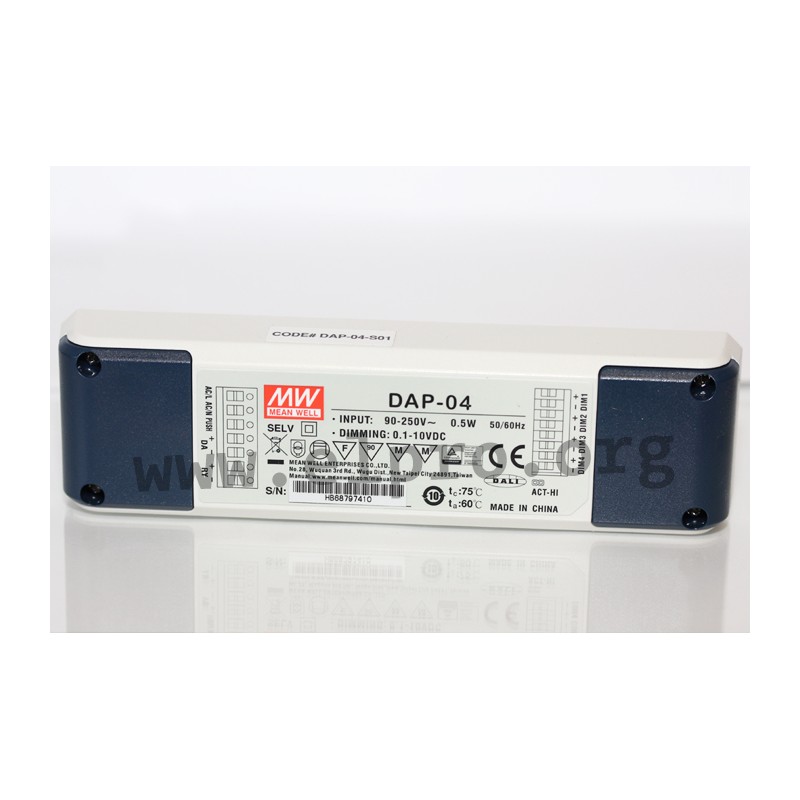

DAP-04-S01

Mean Well DALI-PWM converter series DAP-04

DALI-PWM converters with a universal input, a low no-load power, a push dimming function and a built-in relay for ON/OFF control of LED drivers. These devices have 4 (DAP-04) resp. 1 or 4 addressable output channels (DAP-04-S01) and comply with IEC62386-101, 102, 207 (DALI standard). They are suitable for converting a DALI signal into a PWM signal and have a linear as well as a logarithmic dimming curve that can be set according to 62386-207. Furthermore, PWM "active high" or PWM "active low" can be selected by a jumper. We offer the types DAP-04 and DAP-04-S01 of this Mean Well series.

  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 15A
  • input signal: DALI or Push Dim
  • dimming range: 1 to 100%
  • PWM output signal: 1kHz
  • relay: 240V AC / 8A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +60°C
  • weight: 160g

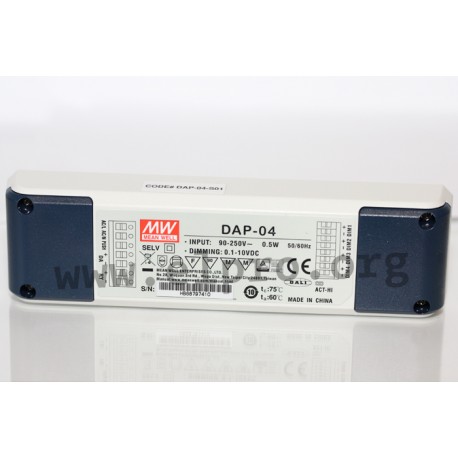

DAP-04-S01

DAP-04-S01

107809 DAP-04-S01 DAP-04-S01 4711287464046 Mean Well DALI-PWM converter series DAP-04. DALI-PWM converters with a universal input, a low no-load power, a push dimming function and a built-in relay for ON/OFF control of LED drivers. These devices have 4 (DAP-04) resp. 1 or 4 addressable output channels (DAP-04-S01) and comply with IEC62386-101, 102, 207 (DALI standard). They are suitable for converting a DALI signal into a PWM signal and have a linear as well as a logarithmic dimming curve that can be set according to 62386-207. Furthermore, PWM "active high" or PWM "active low" can be selected by a jumper. We offer the types DAP-04 and DAP-04-S01 of this Mean Well series. input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 15A input signal: DALI or Push Dim dimming range: 1 to 100% PWM output signal: 1kHz relay: 240V AC / 8A withstand voltage I/P-O/P: 3750V AC operating temperature: -30 to +60°C weight: 160g

Specifications

manufacturer
Manufacturer's name DAP-04-S01
GTIN 4711287464046
Phase 2 phase
Data Sheet

Unit price

22,99 €

Stock: 219
Further delivery:
CW 16/2025
