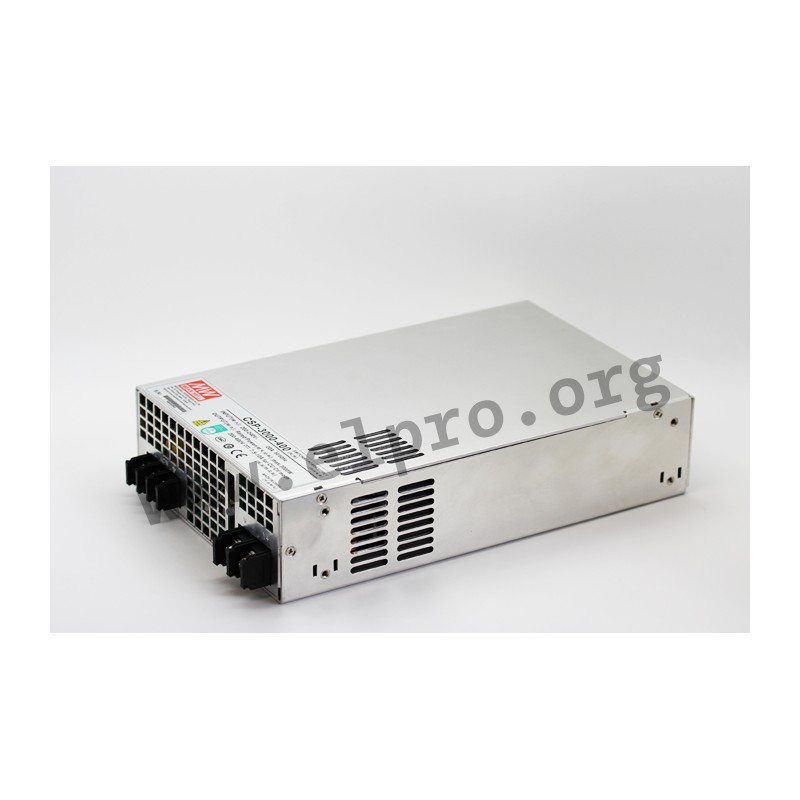

CSP-3000-400

Mean Well power supply series CSP-3000

Switching power supplies in an enclosed housing with 3000W, a built-in fan, a low no-load power, an auxiliary power supply (12V/0,4A) and a remote ON/OFF control. These devices have a built-in active PFC function and are protected against overload, fan failure, overvoltage, overtemperature as well as short circuit. They are suitable for a parallel operation as well as an active current sharing of up to 7200W (2+1 units) and comply with UL/EN62368-1, EN55032 class A, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: CSP-3000-120, CSP-3000-250 and CSP-3000-400.

  • single output
  • output: 3000W
  • input voltage: 180 to 264V AC (50Hz), 254 to 370V DC
  • maximal input inrush current: 16A
  • leakage current: 3mA
  • overload protection: 105 to 120%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +65°C
  • weight: 4000g
CSP-3000-400

CSP-3000-400

113392 CSP-3000-400 CSP-3000-400 4711287420981 Mean Well power supply series CSP-3000. Switching power supplies in an enclosed housing with 3000W, a built-in fan, a low no-load power, an auxiliary power supply (12V/0,4A) and a remote ON/OFF control. These devices have a built-in active PFC function and are protected against overload, fan failure, overvoltage, overtemperature as well as short circuit. They are suitable for a parallel operation as well as an active current sharing of up to 7200W (2+1 units) and comply with UL/EN62368-1, EN55032 class A, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: CSP-3000-120, CSP-3000-250 and CSP-3000-400. single output output: 3000W input voltage: 180 to 264V AC (50Hz), 254 to 370V DC maximal input inrush current: 16A leakage current: 3mA overload protection: 105 to 120% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +65°C weight: 4000g

Specifications

manufacturer
Manufacturer's name CSP-3000-400
GTIN 4711287420981
Output voltage [V] 400
Efficiency [%] 93
Output current [A] 7,5
Output voltage tolerance: [%] 1
Output power [W] 3000
Ripple [mVp-p] 1200
Data Sheet

Unit price

326,29 €

Stock: 276
Next incoming goods:
CW 50/2024
176 units

Further delivery:
CW 12/2025
