APV-8-12

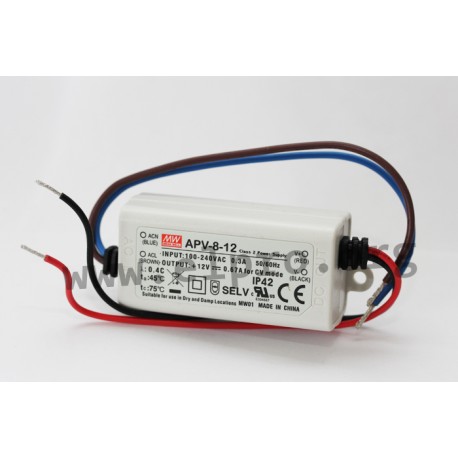

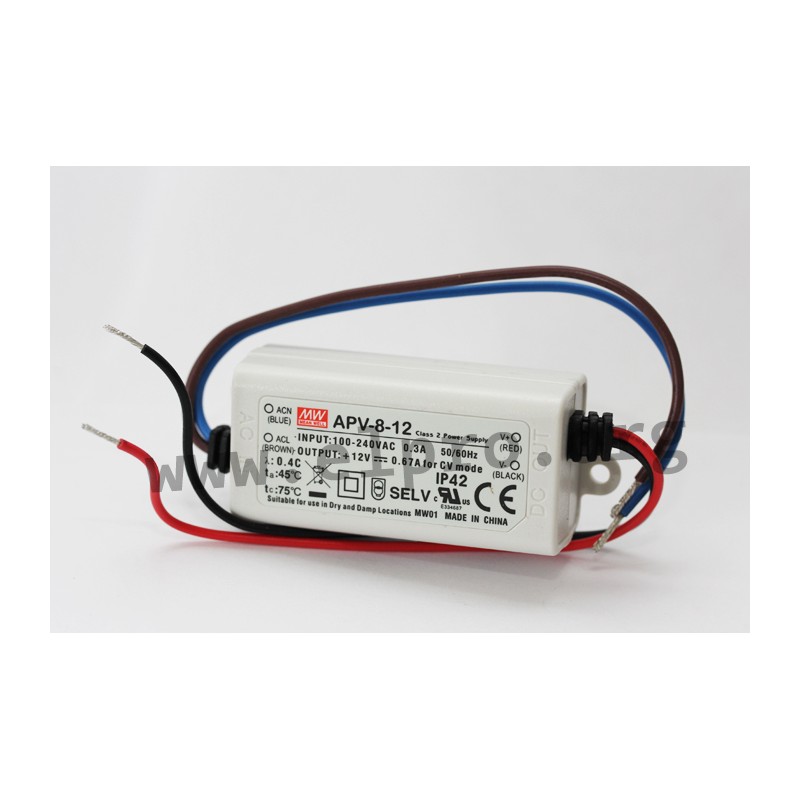

Mean Well LED driver series APV-8

LED drivers in a plastic housing (IP42) with a constant voltage, a universal input and 8W. These devices are protected against overload (auto recovery), short circuit as well as overvoltage and comply with UL8750 as well as EN55032. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: APV-8-5, APV-8-12 and APV-8-24.

  • single output
  • output: 7 to 8,16W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +70°C

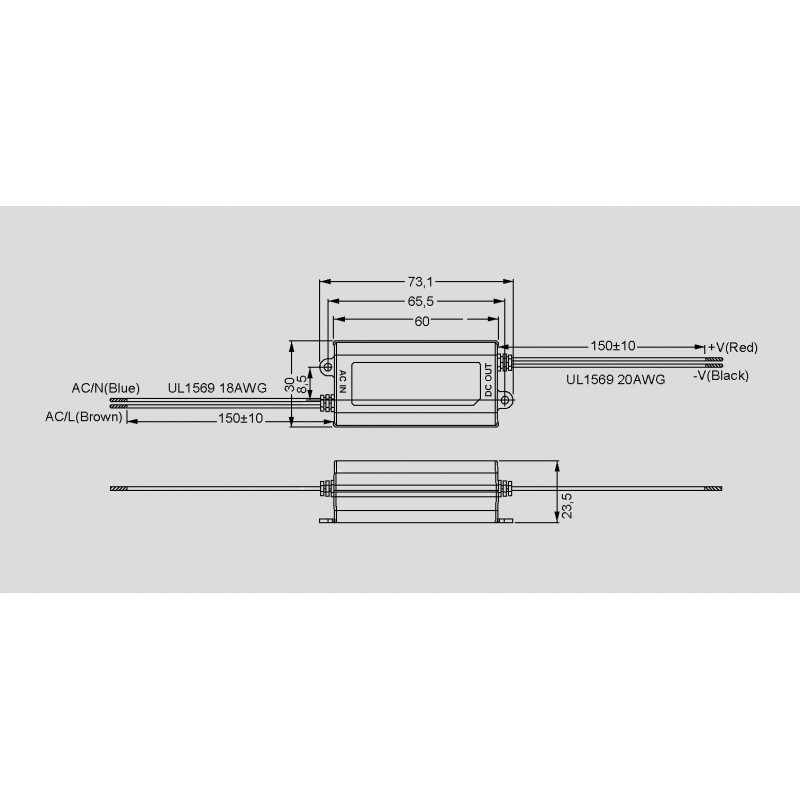

  • dimensions: 60x30x23,5mm
  • weight: 81g
Mean Well APV-8 series

APV-8-12

104680 APV-8-12 APV-8-12 4711287438313 Mean Well LED driver series APV-8. LED drivers in a plastic housing (IP42) with a constant voltage, a universal input and 8W. These devices are protected against overload (auto recovery), short circuit as well as overvoltage and comply with UL8750 as well as EN55032. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: APV-8-5, APV-8-12 and APV-8-24. single output output: 7 to 8,16W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 70A withstand voltage I/P-O/P: 3750V AC operating temperature: -30 to +70°C dimensions: 60x30x23,5mm weight: 81g

Specifications

manufacturer
Manufacturer's name APV-8-12
GTIN 4711287438313
Output voltage [V] 12
Efficiency [%] 80
Output current [A] 0...0,67
Output voltage tolerance: [%] 5
Output power [W] 8
Ripple [mVp-p] 150
Data Sheet

Unit price

3,99 €

Volume discounts

Quantity Unit price
50 + 3,59 €

Stock: 2597
Next incoming goods:
CW 04/2025
1152 units

Further delivery:
CW 16/2025
