APV-35-5

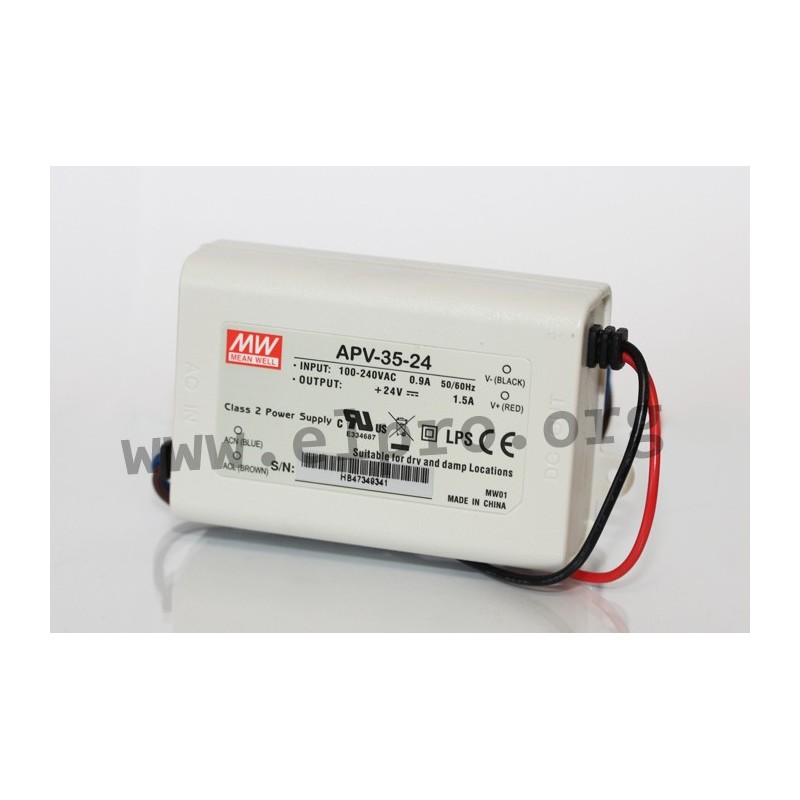

Mean Well LED driver series APV-35

LED drivers in a plastic housing (IP42) with a constant voltage, a universal input and 35W. These devices are not dimmable and are protected against overload (auto recovery), short circuit as well as overvoltage. They comply with UL8750 as well as EN55032 and are suitable for LED lighting applications. We offer the following types of this Mean Well series: APV-35-5, APV-35-12, APV-35-15, APV-35-24 and APV-35-36.

  • single output
  • output: 25 to 36W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 45A
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -30 to +70°C

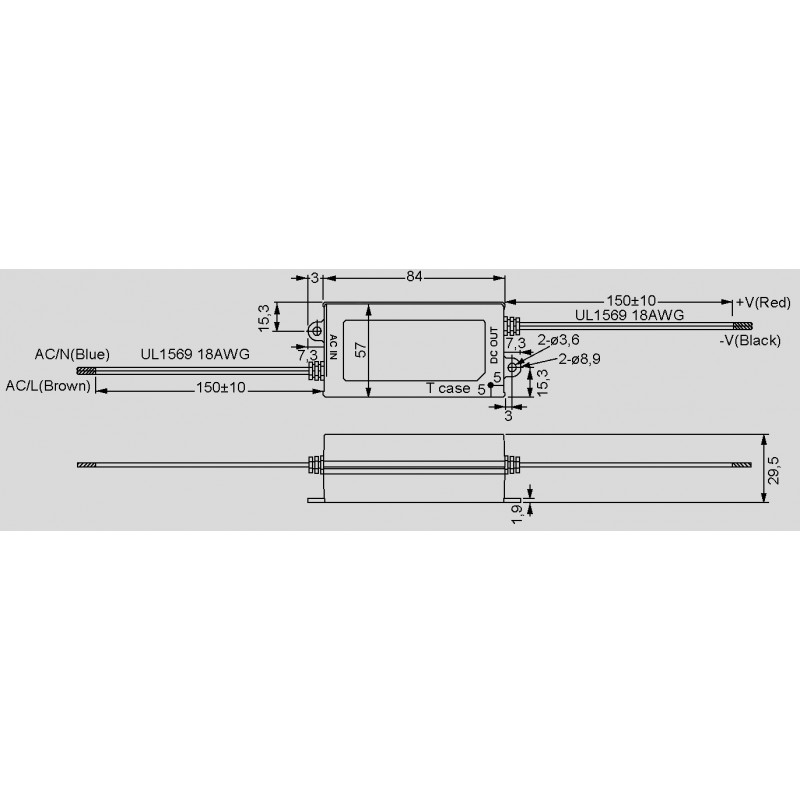

  • dimensions: 84x57x29,5mm
  • weight: 180g

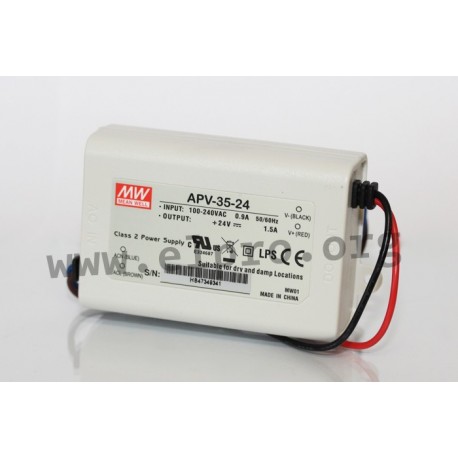

APC-35 series

APV-35-5

45029 APV-35-5 APV-35-5 4711287438467 Mean Well LED driver series APV-35. LED drivers in a plastic housing (IP42) with a constant voltage, a universal input and 35W. These devices are not dimmable and are protected against overload (auto recovery), short circuit as well as overvoltage. They comply with UL8750 as well as EN55032 and are suitable for LED lighting applications. We offer the following types of this Mean Well series: APV-35-5, APV-35-12, APV-35-15, APV-35-24 and APV-35-36. single output output: 25 to 36W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 45A withstand voltage I/P-O/P: 3000V AC operating temperature: -30 to +70°C dimensions: 84x57x29,5mm weight: 180g

Specifications

manufacturer
Manufacturer's name APV-35-5
GTIN 4711287438467
Output voltage [V] 5
Efficiency [%] 76,5
Output current range [A] 0...5
Output voltage tolerance: [%] 5
Output power [W] 25
Ripple [mVp-p] 120
Data Sheet

Unit price

9,99 €

Volume discounts

Quantity Unit price
50 + 9,29 €

Stock: 1021
Further delivery:
CW 16/2025
