APV-25-36

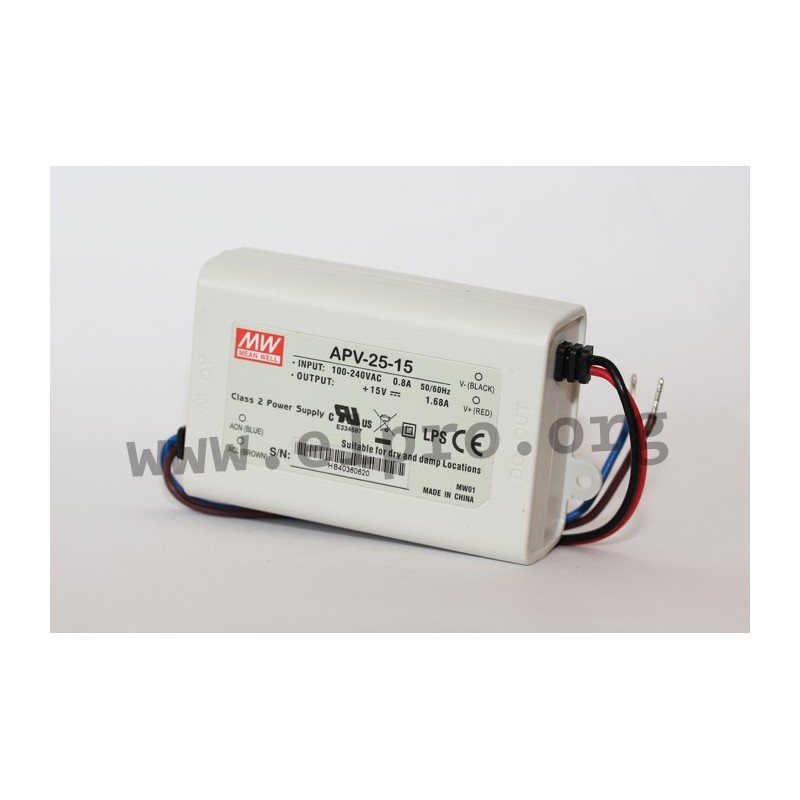

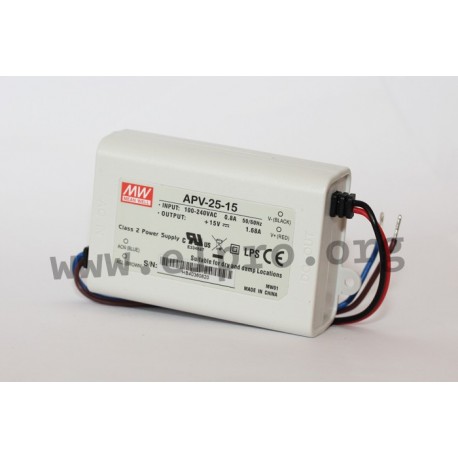

Mean Well LED driver series APV-25

LED drivers in a plastic housing (IP42) with a constant voltage, 25W and a universal input. These devices are protected against overload (auto recovery), short circuit as well as overvoltage and are suitable for LED lighting applications. They comply with UL8750 as well as EN55032 and are not dimmable. We offer the following types of this Mean Well series: APV-25-5, APV-25-12, APV-25-15, APV-25-24 and APV-25-36.

  • single output
  • output: 17,5 to 25,2W
  • input voltage: 90 to 264V AC (47 to 63Hz),127 to 370V DC
  • maximal input inrush current: 45A
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -30 to +70°C

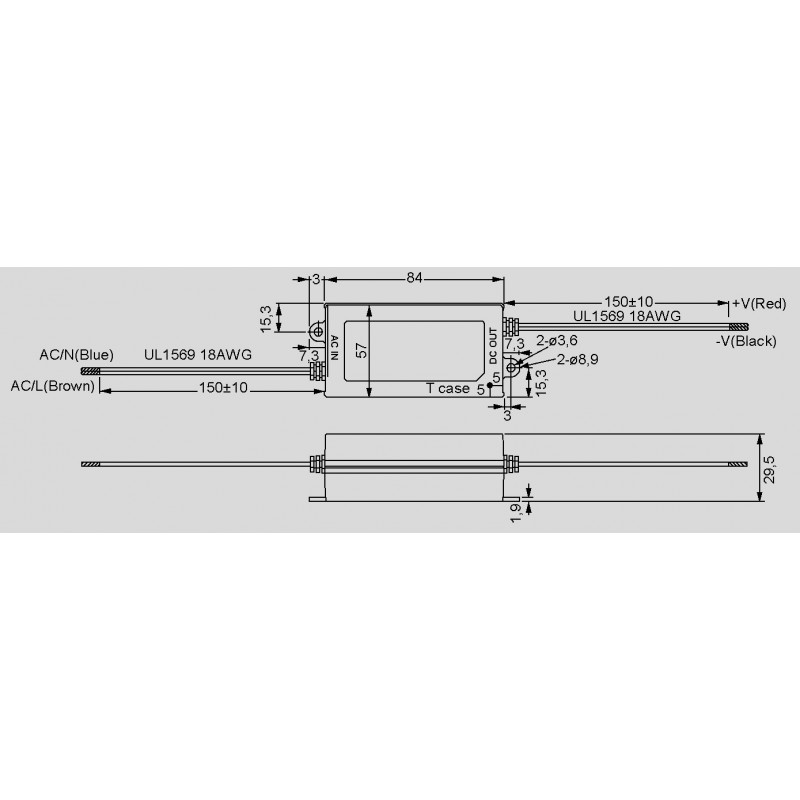

  • dimensions: 84x57x29,5mm
  • weight: 130g
APV-25-36

APV-25-36

45024 APV-25-36 APV-25-36 4711287438450 Mean Well LED driver series APV-25. LED drivers in a plastic housing (IP42) with a constant voltage, 25W and a universal input. These devices are protected against overload (auto recovery), short circuit as well as overvoltage and are suitable for LED lighting applications. They comply with UL8750 as well as EN55032 and are not dimmable. We offer the following types of this Mean Well series: APV-25-5, APV-25-12, APV-25-15, APV-25-24 and APV-25-36. single output output: 17,5 to 25,2W input voltage: 90 to 264V AC (47 to 63Hz),127 to 370V DC maximal input inrush current: 45A withstand voltage I/P-O/P: 3000V AC operating temperature: -30 to +70°C dimensions: 84x57x29,5mm weight: 130g

Specifications

manufacturer
Manufacturer's name APV-25-36
GTIN 4711287438450
Output voltage [V] 36
Efficiency [%] 84
Output current range [A] 0...0,7
Output voltage tolerance: [%] 5
Output power [W] 25,2
Ripple [mVp-p] 150
Data Sheet
