APV-16-5

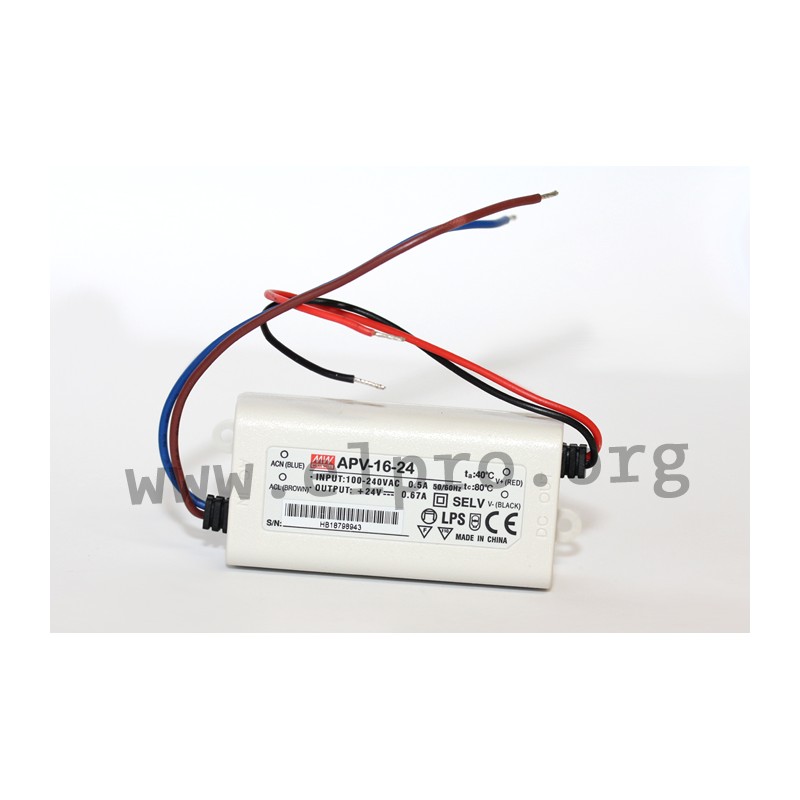

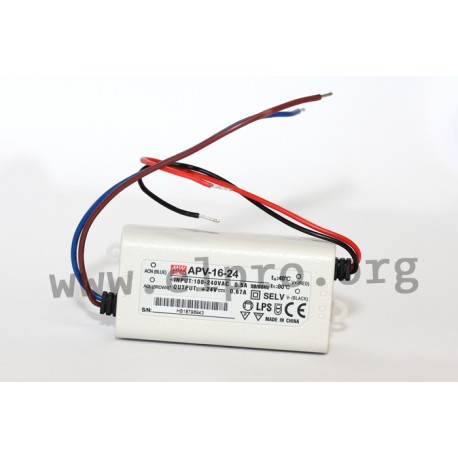

Mean Well LED driver series APV-16

LED drivers in a plastic housing (IP42) with a constant voltage, 16W and a universal input. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with UL8750, EN61347-1, EN61347-2-13, IEC61347-2-13, IEC61347-1 as well as EN55032. They are suitable for LED lighting applications and are suitable for LED lighting applications. We offer the following types of this Mean Well series: APV-16-5, APV-16-12, APV-16-15 and APV-16-24.

  • single output
  • output: 13 to 16,08W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +70°C

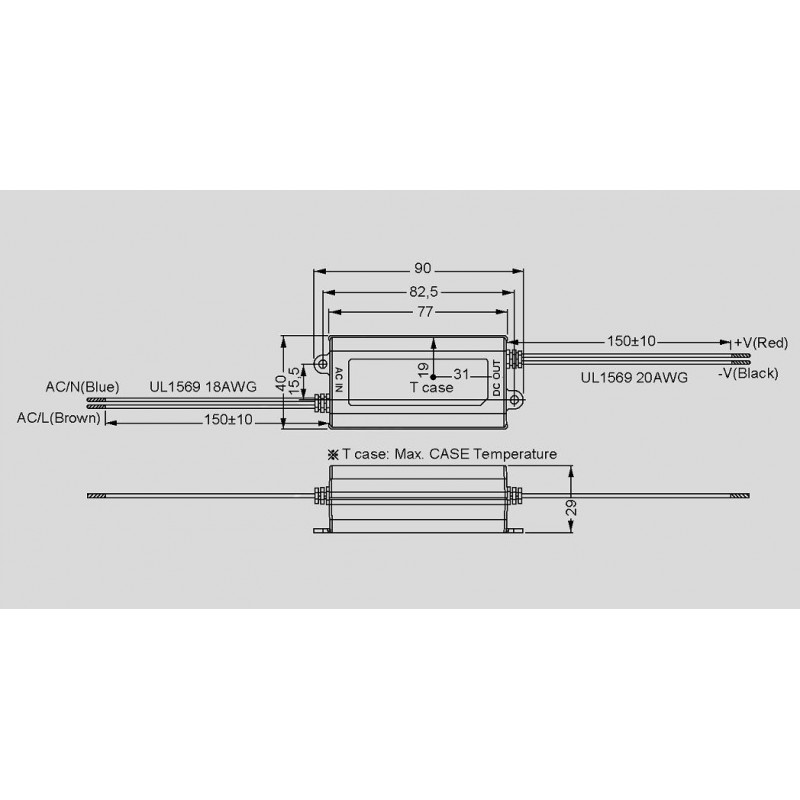

  • dimensions: 77x40x29mm
  • weight: 100g
APV-16-5

APV-16-5

36115 APV-16-5 APV-16-5 4711287438375 Mean Well LED driver series APV-16. LED drivers in a plastic housing (IP42) with a constant voltage, 16W and a universal input. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with UL8750, EN61347-1, EN61347-2-13, IEC61347-2-13, IEC61347-1 as well as EN55032. They are suitable for LED lighting applications and are suitable for LED lighting applications. We offer the following types of this Mean Well series: APV-16-5, APV-16-12, APV-16-15 and APV-16-24. single output output: 13 to 16,08W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 50A withstand voltage I/P-O/P: 3750V AC operating temperature: -30 to +70°C dimensions: 77x40x29mm weight: 100g

Specifications

manufacturer
Manufacturer's name APV-16-5
GTIN 4711287438375
Output voltage [V] 5
Phase 2 phase
Efficiency [%] 76
Output current range [A] 0...2,6
Output voltage tolerance: [%] 5
Output power [W] 13
Ripple [mVp-p] 100
Data Sheet

Unit price

5,19 €

Volume discounts

Quantity Unit price
50 + 4,69 €

Stock: 107
Next incoming goods:
CW 48/2024
240 units

Further delivery:
CW 11/2025
