> Power supplies>Power supplies>Switching power supplies for illumination, LED>Mean Well LED drivers, 16W, IP42, constant voltage, APV-16 series>APV-16-12

Manufacturers

APV-16-12

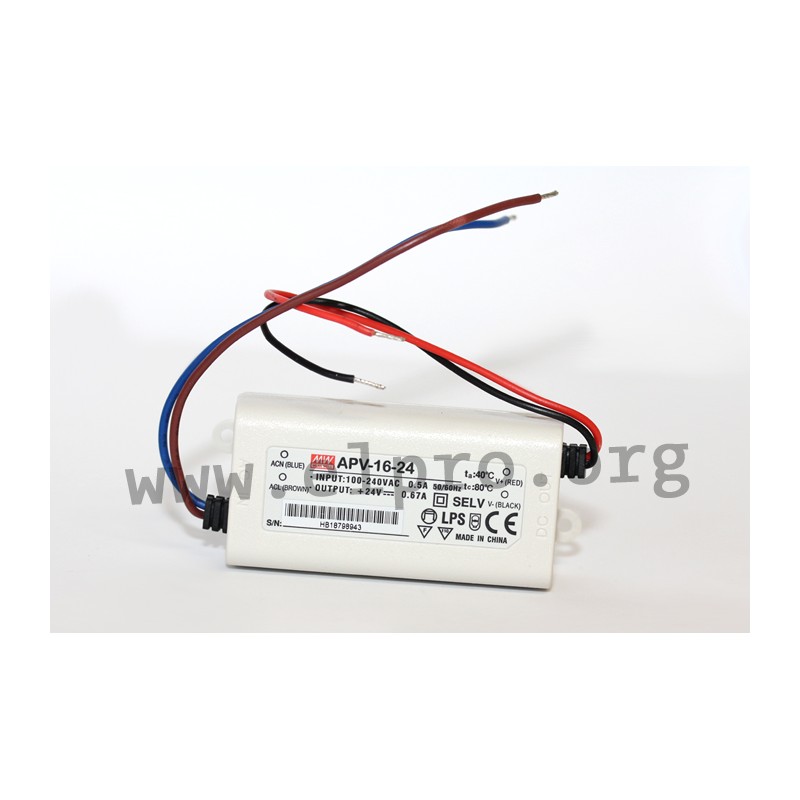

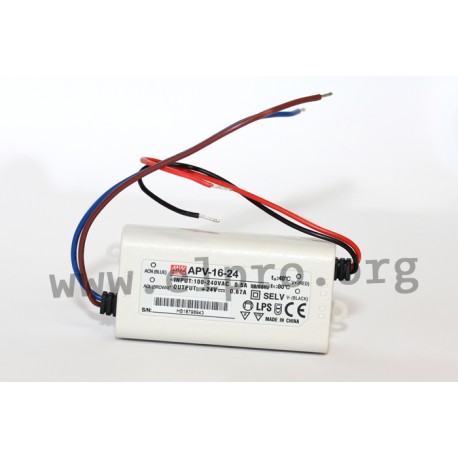

Mean Well LED driver series APV-16

LED drivers in a plastic housing (IP42) with a constant voltage, 16W and a universal input. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with UL8750, EN61347-1, EN61347-2-13, IEC61347-2-13, IEC61347-1 as well as EN55032. They are suitable for LED lighting applications and are suitable for LED lighting applications. We offer the following types of this Mean Well series: APV-16-5, APV-16-12, APV-16-15 and APV-16-24.

  • single output
  • output: 13 to 16,08W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +70°C

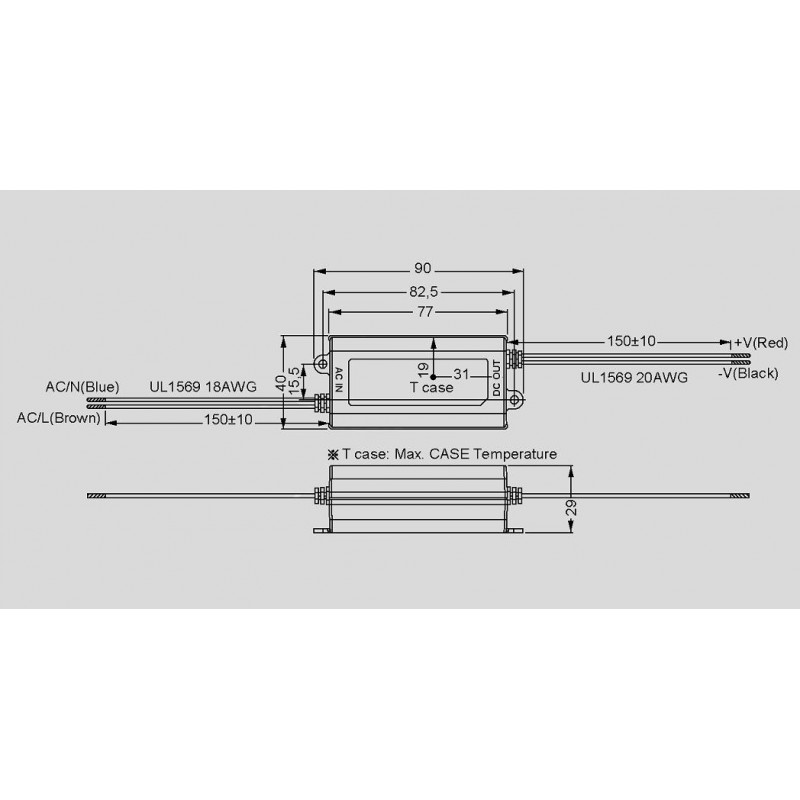

  • dimensions: 77x40x29mm
  • weight: 100g
APV-16-12

APV-16-12

36114 APV-16-12 APV-16-12 4711287438382 Mean Well LED driver series APV-16. LED drivers in a plastic housing (IP42) with a constant voltage, 16W and a universal input. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with UL8750, EN61347-1, EN61347-2-13, IEC61347-2-13, IEC61347-1 as well as EN55032. They are suitable for LED lighting applications and are suitable for LED lighting applications. We offer the following types of this Mean Well series: APV-16-5, APV-16-12, APV-16-15 and APV-16-24. single output output: 13 to 16,08W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 50A withstand voltage I/P-O/P: 3750V AC operating temperature: -30 to +70°C dimensions: 77x40x29mm weight: 100g

Specifications

manufacturer
Manufacturer's name APV-16-12
GTIN 4711287438382
Output voltage [V] 12
Phase 2 phase
Efficiency [%] 80
Output current range [A] 0...1,25
Output voltage tolerance: [%] 5
Output power [W] 15
Ripple [mVp-p] 120
Data Sheet
