APV-12-5

Mean Well LED driver series APV-12

LED drivers in a plastic housing (IP42) with a constant voltage, 12W and a universal input. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with UL8750, EN61347-1, EN61347-2-13, IEC61347-2-13, IEC61347-1 as well as EN55032. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: APV-12-5, APV-12-12, APV-12-15 and APV-12-24.

  • single output
  • output: 10 to 12W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +70°C

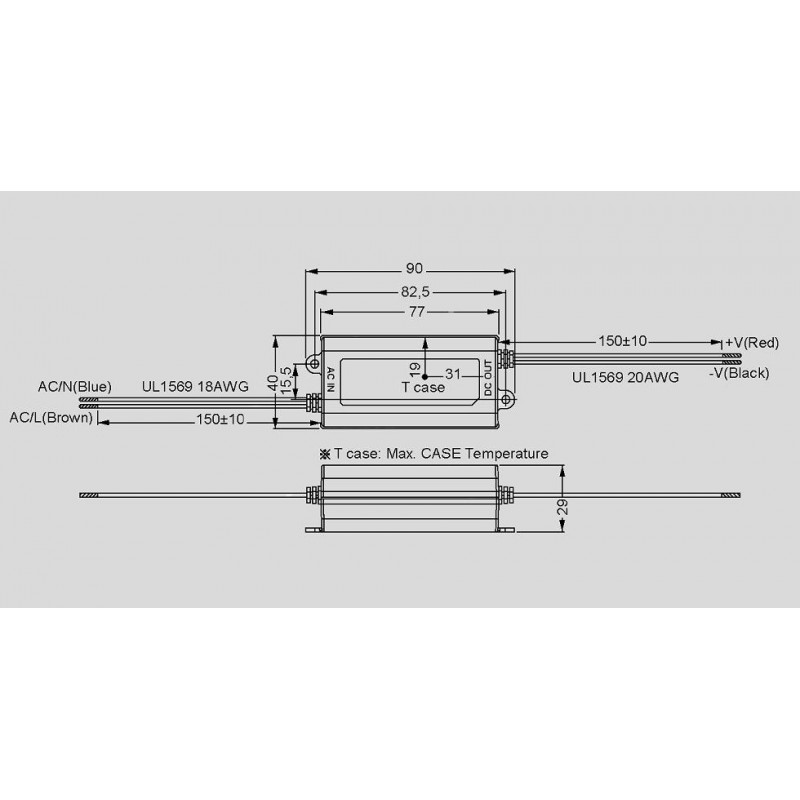

  • dimensions: 77x40x29mm
  • weight: 80g
APV-12-5

APV-12-5

36107 APV-12-5 APV-12-5 4711287438337 Mean Well LED driver series APV-12. LED drivers in a plastic housing (IP42) with a constant voltage, 12W and a universal input. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with UL8750, EN61347-1, EN61347-2-13, IEC61347-2-13, IEC61347-1 as well as EN55032. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: APV-12-5, APV-12-12, APV-12-15 and APV-12-24. single output output: 10 to 12W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 70A withstand voltage I/P-O/P: 3750V AC operating temperature: -30 to +70°C dimensions: 77x40x29mm weight: 80g

Specifications

manufacturer
Manufacturer's name APV-12-5
GTIN 4711287438337
Output voltage [V] 5
Phase 2 phase
Efficiency [%] 76
Output current range [A] 0...2
Output voltage tolerance: [%] 5
Output power [W] 10
Ripple [mVp-p] 100
Data Sheet
