APC-8-250

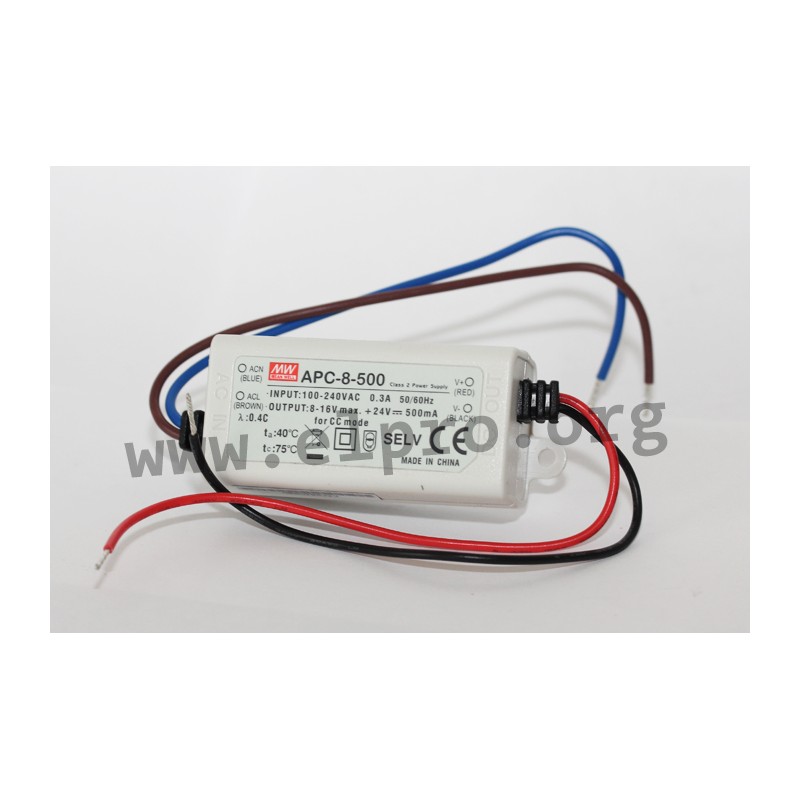

Mean Well LED driver series APC-8

LED drivers in a plastic housing (IP42) with a constant current, 8W and a universal input. These devices are not dimmable and comply with UL8750, EN61347-2-13 as well as EN55032. They are suitable for LED lighting applications and are protected against short circuit. We offer the following types of this Mean Well series: APC-8-250, APC-8-350, APC-8-500 and APC-8-700.

  • single output
  • output: 7,7 to 8,05W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • input inrush current: 70A
  • no-load power: <0,5W
  • withstand voltageI/P-O/P: 3750V AC
  • operating temperature: -30 to +70°C

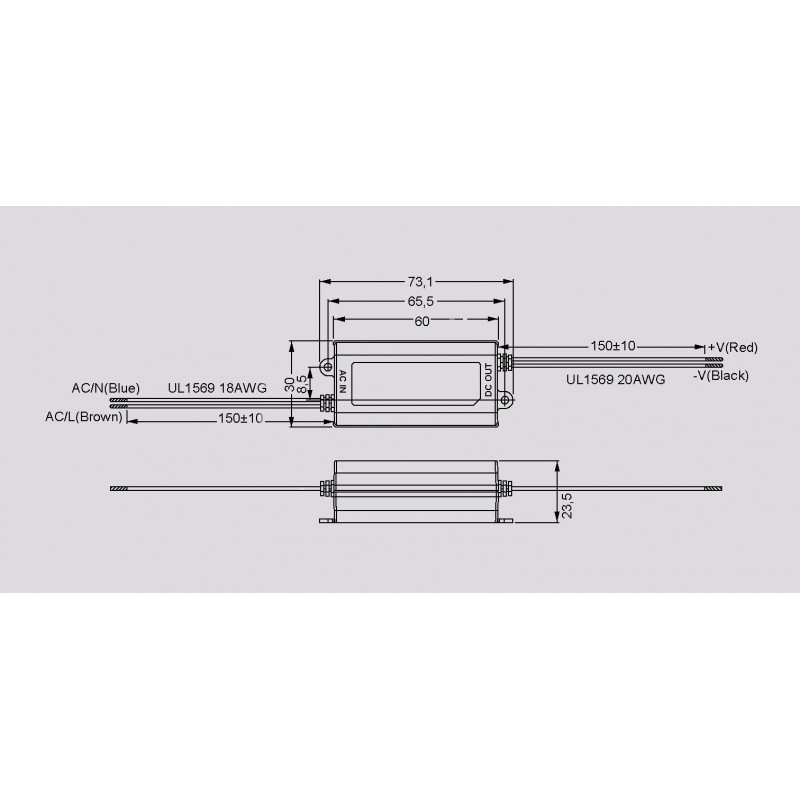

  • dimensions: 60x30x23,5mm
  • weight: 50g
Mean Well APC-8 series

APC-8-250

104682 APC-8-250 APC-8-250 4711287438511 Mean Well LED driver series APC-8. LED drivers in a plastic housing (IP42) with a constant current, 8W and a universal input. These devices are not dimmable and comply with UL8750, EN61347-2-13 as well as EN55032. They are suitable for LED lighting applications and are protected against short circuit. We offer the following types of this Mean Well series: APC-8-250, APC-8-350, APC-8-500 and APC-8-700. single output output: 7,7 to 8,05W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC input inrush current: 70A no-load power: &lt;0,5W withstand voltageI/P-O/P: 3750V AC operating temperature: -30 to +70°C dimensions: 60x30x23,5mm weight: 50g

Specifications

manufacturer
Manufacturer's name APC-8-250
GTIN 4711287438511
Output voltage [V] 16...32
Efficiency [%] 84
Output current [A] 0,25
Output power [W] 8
Ripple [mVp-p] 350
Data Sheet

Unit price

4,49 €

Volume discounts

Quantity Unit price
50 + 3,99 €

Stock: 90
Next incoming goods:
CW 03/2025
288 units

Further delivery:
CW 11/2025
