APC-12-700

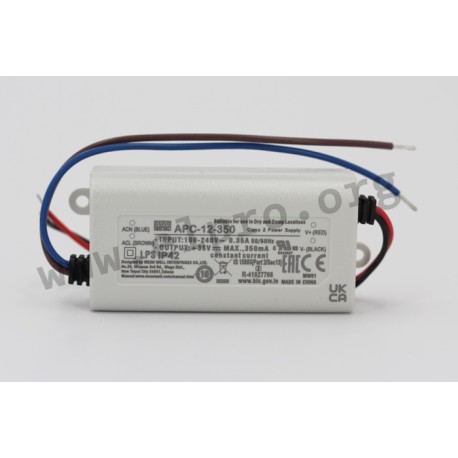

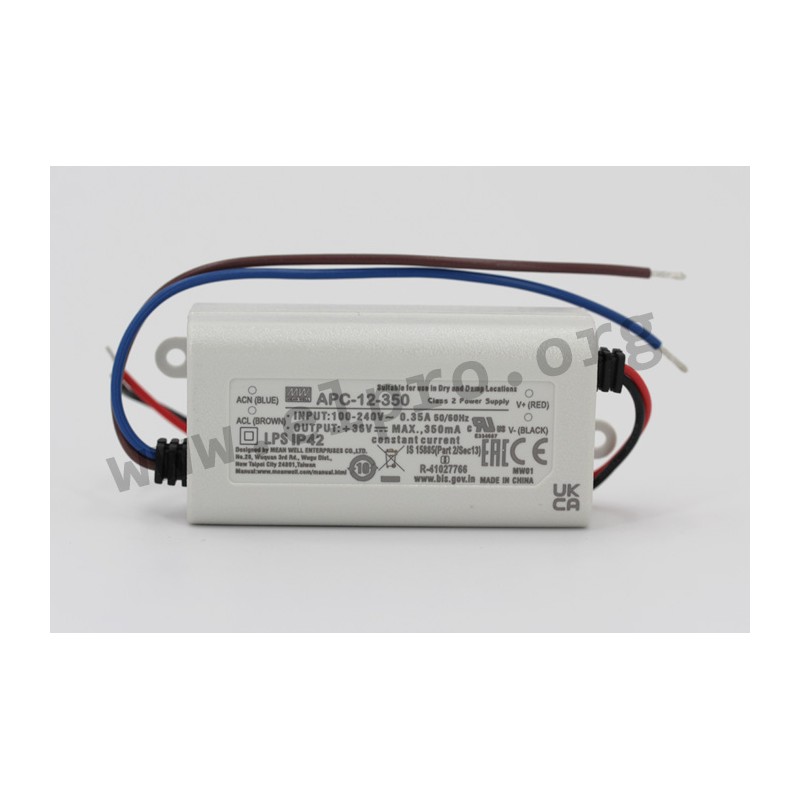

Mean Well LED driver series APC-12

LED drivers in a plastic housing (IP42) with a constant current, a universal input and 12W. These devices are protected against overvoltage as well as short circuit and comply with UL8750. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: APC-12-350 and APC-12-700.

  • single output
  • output: 12,6W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +70°C
  • dimensions: 77x40x29mm
  • weight: 80g
APC-12-700, Mean Well LED drivers, 12W, IP42, constant current, APC-12 series

APC-12-700

36109 APC-12-700 APC-12-700 4711287438566 Mean Well LED driver series APC-12. LED drivers in a plastic housing (IP42) with a constant current, a universal input and 12W. These devices are protected against overvoltage as well as short circuit and comply with UL8750. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: APC-12-350 and APC-12-700. single output output: 12,6W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 70A withstand voltage I/P-O/P: 3750V AC operating temperature: -30 to +70°C dimensions: 77x40x29mm weight: 80g

Specifications

manufacturer
Manufacturer's name APC-12-700
GTIN 4711287438566
Output voltage [V] 9...18
Phase 2 phase
Efficiency [%] 80
Output current range [A] 0,7
Output voltage tolerance: [%] 5
Output power [W] 12,6
Ripple [mVp-p] 250
Data Sheet

Unit price

5,29 €

Volume discounts

Quantity Unit price
50 + 4,79 €

Stock: 165
Next incoming goods:
CW 03/2025
500 units

Further delivery:
CW 11/2025
