ADD-155B

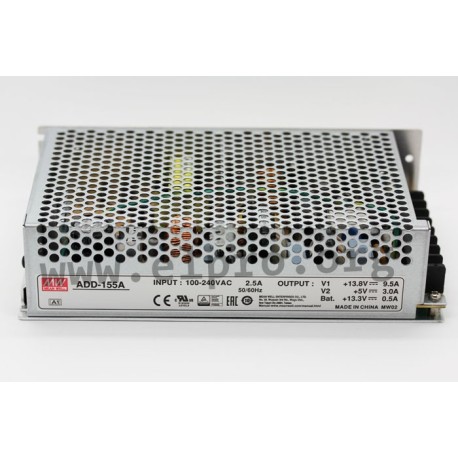

Mean Well battery charger series ADD-155

Switching power supplies in an enclosed housing with 155W, a universal input, screw terminals, a battery charger and a dual output. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a UPS function and comply with UL60950-1, EN60950-1 as well as EN55032 class B. We offer the following types of this Mean Well series: ADD-155A and ADD-155B.

  • dual output
  • output: 152,75W
  • input voltage: 88 to 264V AC (47 to 63Hz), 124 to 370V DC
  • maximal input inrush current: 23A
  • leakage current: <1mA
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 1000g
ADD-155B, Mean Well battery chargers, 155W, UPS function, dual output, ADD-155 series

ADD-155B

244530 ADD-155B ADD-155B 4711232760438 Mean Well battery charger series ADD-155. Switching power supplies in an enclosed housing with 155W, a universal input, screw terminals, a battery charger and a dual output. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a UPS function and comply with UL60950-1, EN60950-1 as well as EN55032 class B. We offer the following types of this Mean Well series: ADD-155A and ADD-155B. dual output output: 152,75W input voltage: 88 to 264V AC (47 to 63Hz), 124 to 370V DC maximal input inrush current: 23A leakage current: &lt;1mA overload protection: 105 to 135% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60°C weight: 1000g

Specifications

manufacturer
Manufacturer's name ADD-155B
GTIN 4711232760438
Output voltage [V] 27,6/5
Efficiency [%] 81
Output current range [A] 0...5/0...3
Output power [W] 152,75
Ripple [mVp-p] 200/100
Output voltage adjustment [V] 24...29(CH1)
Data Sheet

Unit price

65,19 €

Stock: 0
Further delivery:
CW 12/2025
