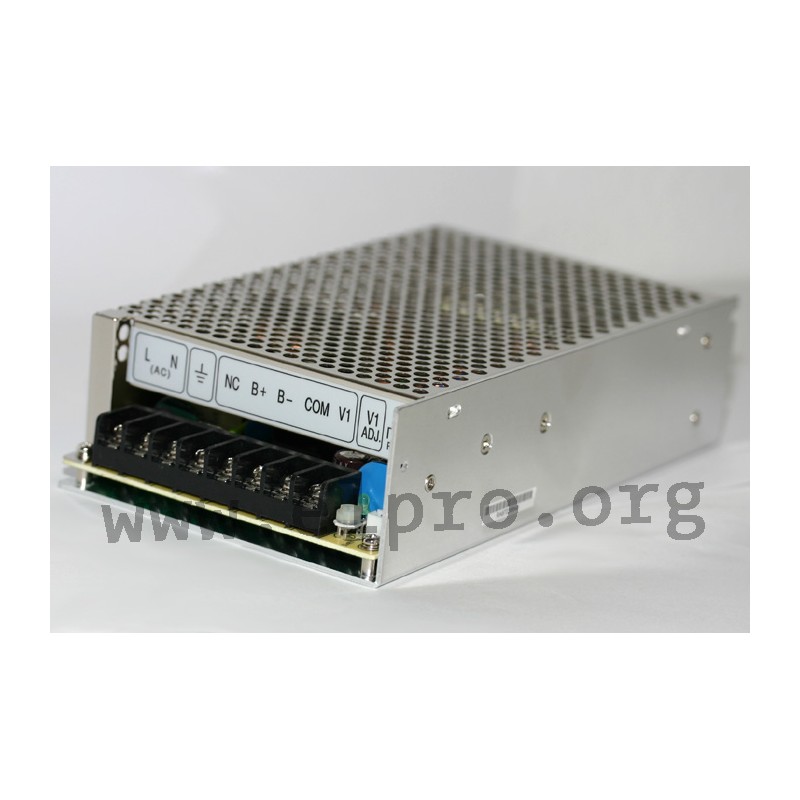

AD-155 C

Mean Well battery charger series AD-155

Switching power supplies in an enclosed housing with 150W, a battery charger, screw terminals, a battery low protection and a universal input. These devices have a UPS function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: AD-155 A, AD-155 B and AD-155 C.

  • single output
  • output: 151,55 to 156,5W
  • input voltage: 88 to 264V AC (47 to 63Hz), 124 to 370V DC
  • maximal input inrush current: 40A
  • maximal leakage current: 1mA
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 1500V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 880g
AD-155C, Mean Well battery chargers, 150W, UPS function, AD-155 series

AD-155 C

46373 AD-155 C AD-155C AD-155C Mean Well battery charger series AD-155. Switching power supplies in an enclosed housing with 150W, a battery charger, screw terminals, a battery low protection and a universal input. These devices have a UPS function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: AD-155 A, AD-155 B and AD-155 C. single output output: 151,55 to 156,5W input voltage: 88 to 264V AC (47 to 63Hz), 124 to 370V DC maximal input inrush current: 40A maximal leakage current: 1mA overload protection: 105 to 135% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 1500V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60°C weight: 880g

Specifications

manufacturer
Manufacturer's name AD-155C
Output voltage [V] 54/53,5
Phase 2 phase
Efficiency [%] 84
Output current range [A] 0...2,7/0...0,5
Output voltage tolerance: [%] 1
Output rated current [A] 2,7/0,2
Output power [W] 156,5
Output voltage adjustment [V] 48...58
Ripple [mV] 240
Data Sheet

Unit price

58,09 €

Volume discounts

Quantity Unit price
50 + 56,89 €

Stock: 23
Further delivery:
CW 12/2025
