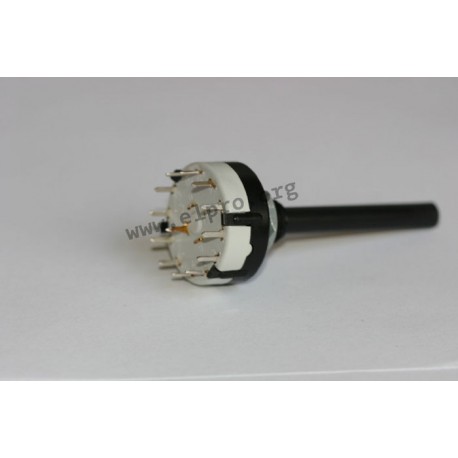

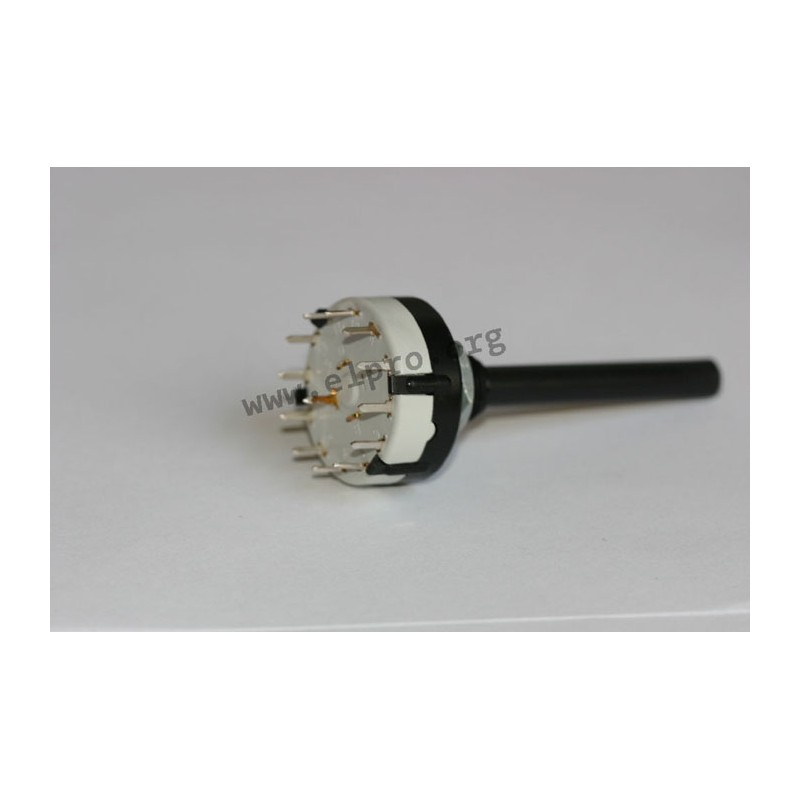

DSS 5

6mm plastic axis

• Standard-One-Level rotary switch with maximum 12 operating positions
• non-shorting version
• the number of switching positions is from 2 to 12 adjustable and limited due to a stopwasher
• with solder pin (PC-contact)
• operating voltage: 250V AC/DC
• test voltage: 1500V
• switching current 250V AC/DC: 0.15A
• contact resistance: <20mΩ
• isulation resistance, 500V DC: >999MΩ
• contacts: brass
• surface: silver-plated
• insulation shell: polyamide 6.6, glass-filled
• operating life: >10'000 cycles
• division: 30°

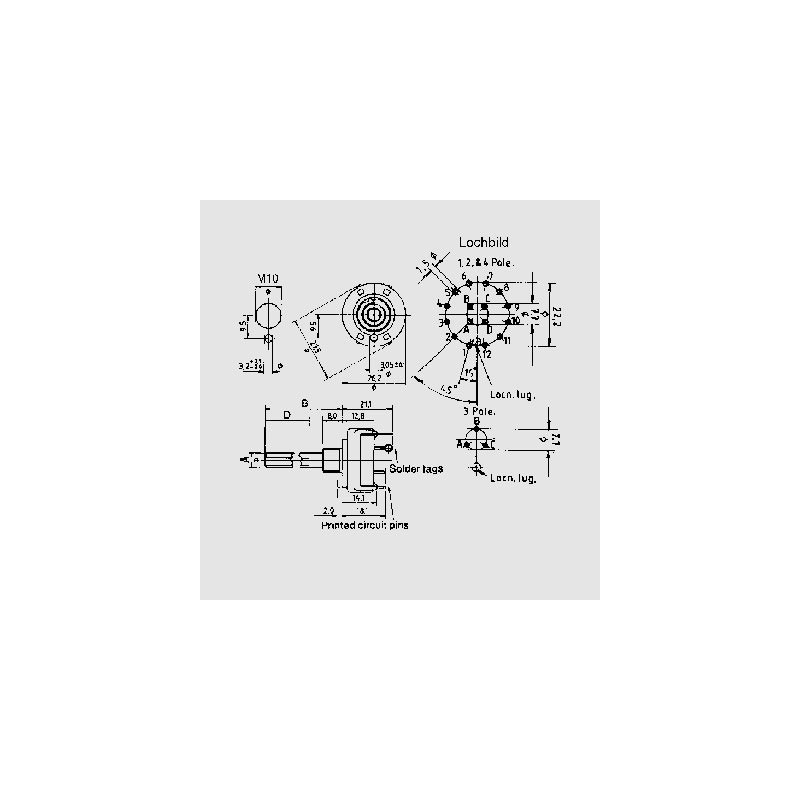

• holes: for M 10+0,1mm
• shaft diameter (A): 6mm
• shaft length (B): 50mm
• no smoothing (D)
• mounting bushing: M 10x0.75

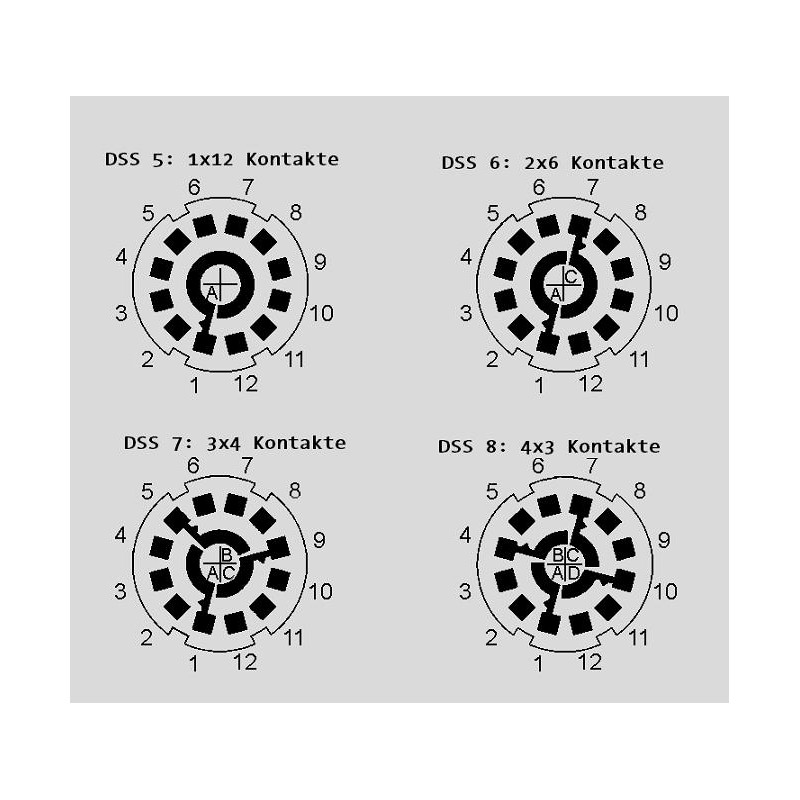

• DSS 5: 1 pole, 12 positions

DSS 5

DSS 5

13217 DSS 5 CK-1049 CK-1049 6mm plastic axis. • Standard-One-Level rotary switch with maximum 12 operating positions• non-shorting version• the number of switching positions is from 2 to 12 adjustable and limited due to a stopwasher• with solder pin (PC-contact)• operating voltage: 250V AC/DC• test voltage: 1500V• switching current 250V AC/DC: 0.15A• contact resistance: &lt;20mΩ• isulation resistance, 500V DC: &gt;999MΩ• contacts: brass• surface: silver-plated• insulation shell: polyamide 6.6, glass-filled• operating life: &gt;10'000 cycles• division: 30°• holes: for M 10+0,1mm• shaft diameter (A): 6mm• shaft length (B): 50mm• no smoothing (D)• mounting bushing: M 10x0.75• DSS 5: 1 pole, 12 positions

Specifications

manufacturer
Manufacturer's name CK-1049
Data Sheet

Unit price

2,49 €

Stock: 2955
Next incoming goods:
CW 51/2024
500 units

Further delivery:
CW 10/2025

Minimum order quantity 5 units or
multiples of 5.
