> Passive elements>Switches/keys>Rotary switches>Lorlin rotary switches, 50mm axis, soldering lugs, CK series>DSS 4

Manufacturers

DSS 4

6mm plastic axis

• Standard-One-Level rotary switch with maximum 12 operating positions
• non-shorting version
• the number of switching positions is from 2 to 12 adjustable and limited due to a stopwasher
• with solder lugs
• operating voltage: 250V AC/DC
• test voltage: 1500V
• switching current 250V AC/DC: 0.15A
• contact resistance: <20mΩ
• isulation resistance, 500V DC: >999MΩ
• contacts: brass
• surface: silver-plated
• insulation shell: polyamide 6.6, glass-filled
• operating life: >10'000 cycles
• division: 30°
• holes: for M 10+0,1mm
• shaft diameter (A): 6mm
• shaft length (B): 50mm
• no smoothing (D)
• mounting bushing: M 10x0.75

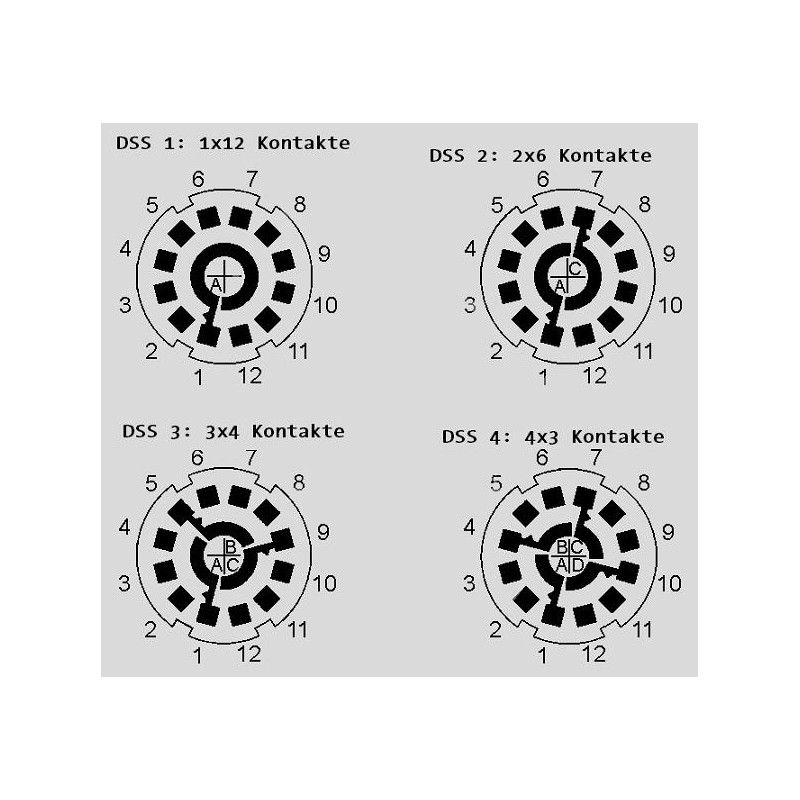

• 4 pole, 3 positions

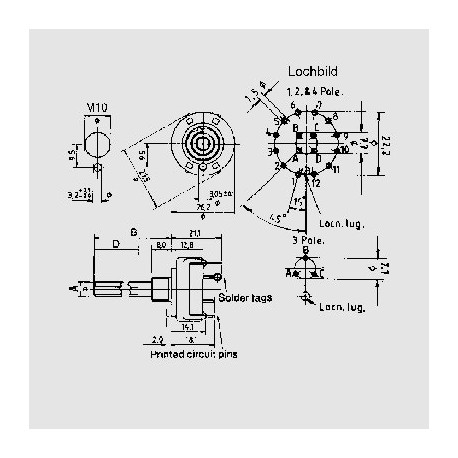

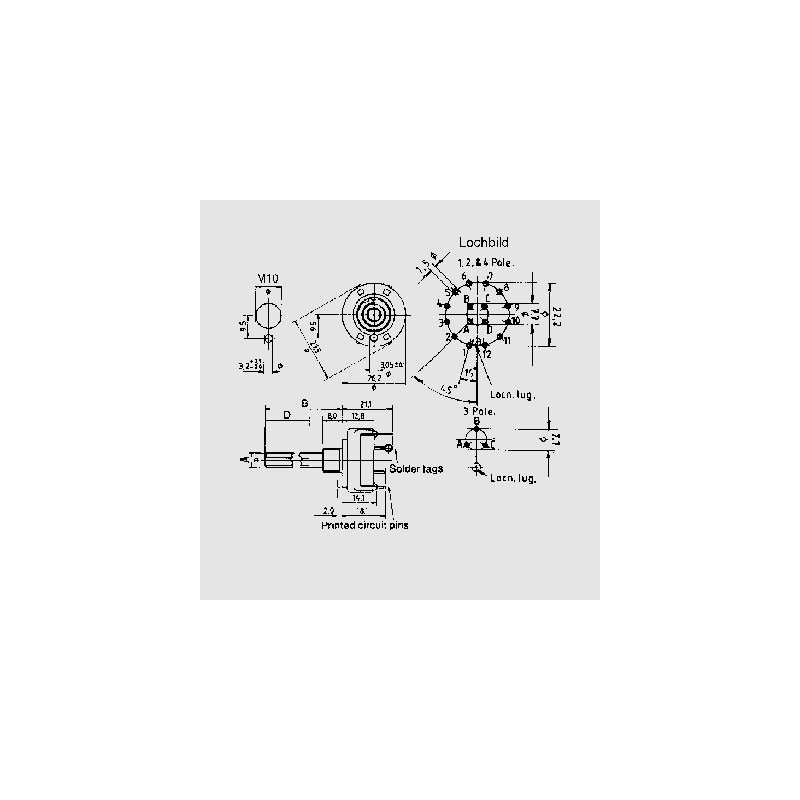

dimensions

DSS 4

13216 DSS 4 CK1032 CK1032 6mm plastic axis. • Standard-One-Level rotary switch with maximum 12 operating positions• non-shorting version• the number of switching positions is from 2 to 12 adjustable and limited due to a stopwasher• with solder lugs• operating voltage: 250V AC/DC• test voltage: 1500V• switching current 250V AC/DC: 0.15A• contact resistance: &lt;20mΩ• isulation resistance, 500V DC: &gt;999MΩ• contacts: brass• surface: silver-plated• insulation shell: polyamide 6.6, glass-filled• operating life: &gt;10'000 cycles• division: 30°• holes: for M 10+0,1mm• shaft diameter (A): 6mm• shaft length (B): 50mm• no smoothing (D)• mounting bushing: M 10x0.75• 4 pole, 3 positions

Specifications

manufacturer
Manufacturer's name CK1032
Data Sheet

Unit price

2,39 €

Stock: 432
Next incoming goods:
CW 12/2025
100 units

Further delivery:
CW 14/2025

Minimum order quantity 1 to 2 units or multiples of 5 plus 0 to 2 .
