VUO 36-12 NO8

Littelfuse 3-phase rectifier series VUO

  • 3-phase power bridge rectifiers
  • in a V1-PACK (VUO 16-16 NO1 / VUO 80-16 NO1), ECO-P (VUO 28-12 NO7 / VUO 86-16 NO7), PWS-E-1 (VUO 160-12 NO7) or epoxy housing with cooling plate (VUO 36-12 NO8 / VUO 36-16 NO8)
  • isolation voltage: 3000VRMS
  • operating temperature: -40 to +150°C
  • forward current: 28 to 175A

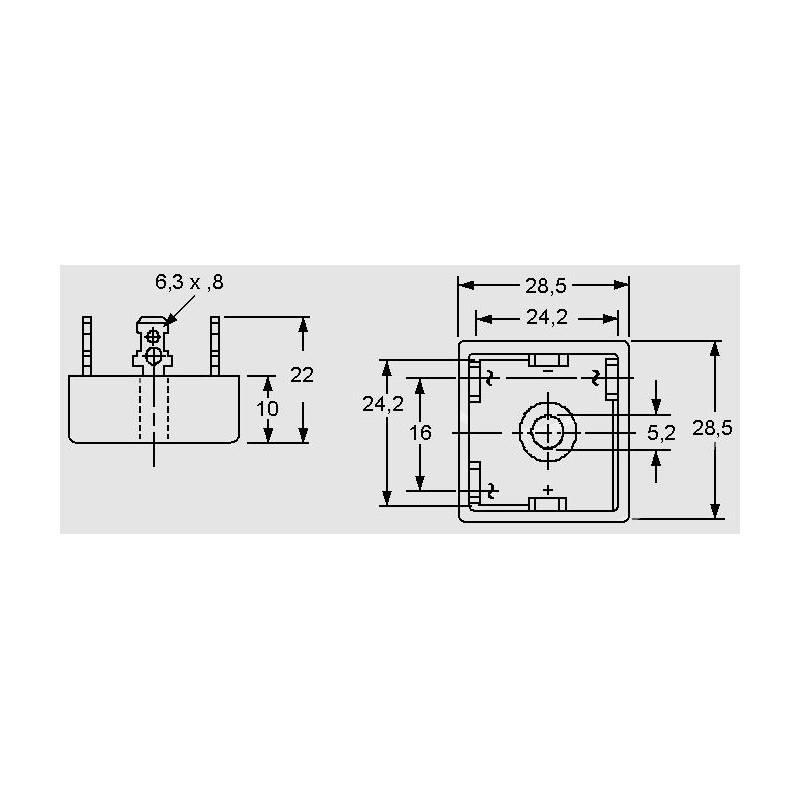

VUO 36-12 NO8

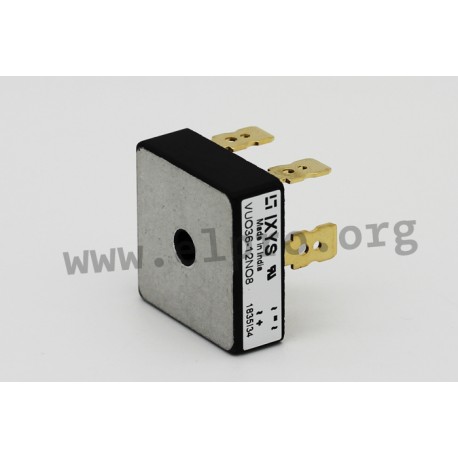

VUO 36-12 NO8

25814 VUO 36-12 NO8 VUO36-12NO8 VUO36-12NO8 Littelfuse 3-phase rectifier series VUO. 3-phase power bridge rectifiers in a V1-PACK (VUO 16-16 NO1 / VUO 80-16 NO1), ECO-P (VUO 28-12 NO7 / VUO 86-16 NO7), PWS-E-1 (VUO 160-12 NO7) or epoxy housing with cooling plate (VUO 36-12 NO8 / VUO 36-16 NO8) isolation voltage: 3000VRMS operating temperature: -40 to +150°C forward current: 28 to 175A

Specifications

manufacturer
Manufacturer's name VUO36-12NO8
Case 3-phase...
(Max.) peak recurrent reverse voltage [V] 1200
Forward voltage [V] 1,7
(Max.) average forward (rectified) current [A] 35
Reverse current [µA] 300
(Max.) RMS voltage [V] 1200
Data Sheet

Unit price

10,69 €

Stock: 40
Further delivery:
CW 38/2025
