RXEF 030

0.05 to 3.75A

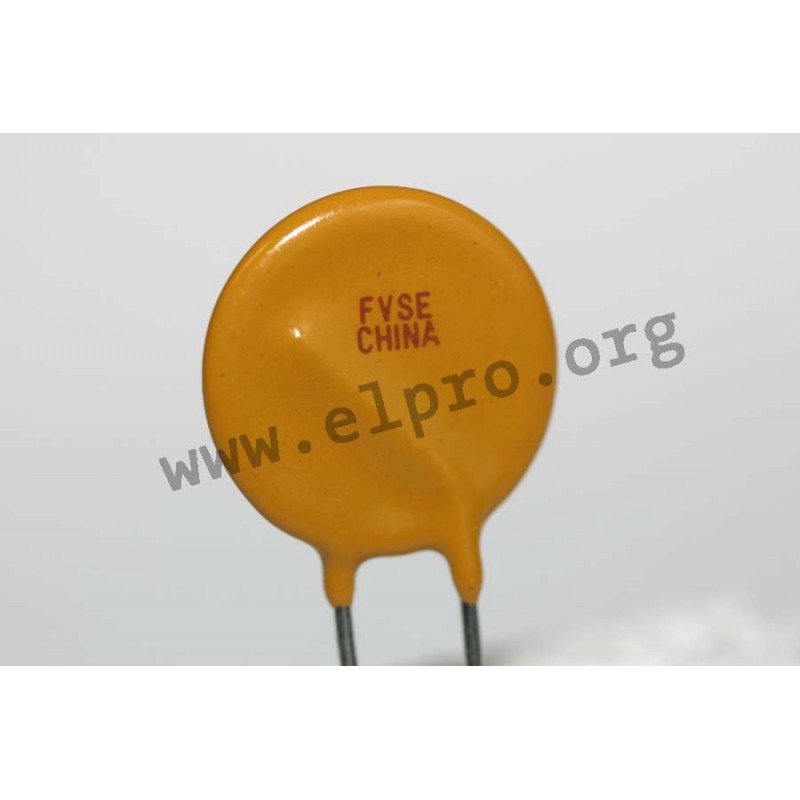

* polymer PTC body, small compact size
* resettable switching device
* low current loss due to a low resistance in normal use
* power supplies, motor amplifiers up to a maximum voltage of 60Vrms
* operating voltage, max.
RXEF 005...RXEF 017: 60V
RXE F020...RXEF 375: 72V
* interrupting current, max.: 40A
* temperature range: -40...+85°C

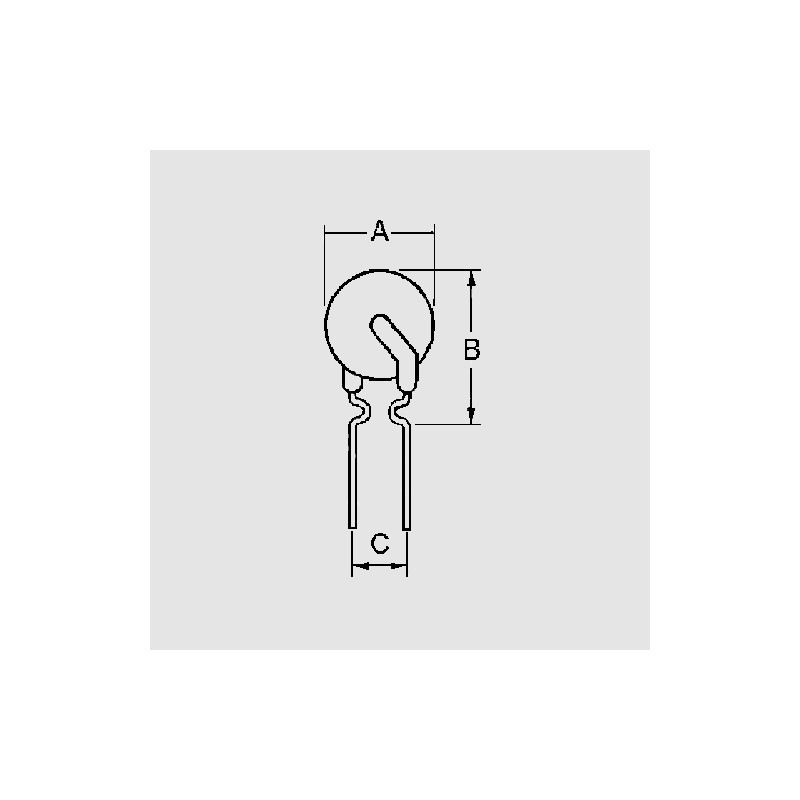

dimensions

pitch: 5.08 mm
* RXEF 005: 8.0 x 8.3 mm
* RXEF 010: 7.4 x 11.6 mm
* RXEF 017: 7.4 x 12.7 mm
* RXEF 020: 7.4 x 11.7 mm
* RXEF 025: 7.4 x 12.7 mm
* RXEF 030: 7.4 x 12.7 mm
* RXEF 040: 7.6 x 13.5 mm
* RXEF 050: 7.9 x 13.7 mm
* RXEF 065: 9.4 x 14.5 mm
* RXEF 075: 10.2 x 15 mm
* RXEF 090: 11.2 x 15.8 mm
* RXEF 110: 12.8 x 17.5 mm
* RXEF 135: 14.5 x 19.1 mm
* RXEF 160: 16.3 x 20.8 mm
* RXEF 185: 17.5 x 22.2 mm

pitch: 10.2 mm
* RXEF 250: 20.8 x 25.4 mm
* RXEF 300: 23.9 x 28.6 mm
* RXEF 375: 27.2 x 31.8 mm
Tyco/Raychem series RXEF

RXEF 030

5385 RXEF 030 RXEF030 RXEF030 0.05 to 3.75A. * polymer PTC body, small compact size* resettable switching device* low current loss due to a low resistance in normal use* power supplies, motor amplifiers up to a maximum voltage of 60Vrms* operating voltage, max. RXEF 005...RXEF 017: 60VRXE F020...RXEF 375: 72V* interrupting current, max.: 40A* temperature range: -40...+85°Cdimensionspitch: 5.08 mm * RXEF 005: 8.0 x 8.3 mm * RXEF 010: 7.4 x 11.6 mm * RXEF 017: 7.4 x 12.7 mm * RXEF 020: 7.4 x 11.7 mm * RXEF 025: 7.4 x 12.7 mm * RXEF 030: 7.4 x 12.7 mm * RXEF 040: 7.6 x 13.5 mm * RXEF 050: 7.9 x 13.7 mm * RXEF 065: 9.4 x 14.5 mm * RXEF 075: 10.2 x 15 mm * RXEF 090: 11.2 x 15.8 mm * RXEF 110: 12.8 x 17.5 mm * RXEF 135: 14.5 x 19.1 mm * RXEF 160: 16.3 x 20.8 mm * RXEF 185: 17.5 x 22.2 mmpitch: 10.2 mm * RXEF 250: 20.8 x 25.4 mm * RXEF 300: 23.9 x 28.6 mm * RXEF 375: 27.2 x 31.8 mm

Specifications

manufacturer
Manufacturer's name RXEF030
Rated current [mA] 300
Max. resistance [Ω] 2,1
Operating voltage [V] 72
Breaking current [A] 40
Data Sheet

Unit price

0,215 €

Stock: 5449
Further delivery:
CW 04/2025

Minimum order quantity 1 to 7 units or multiples of 10 plus 0 to 7 .
