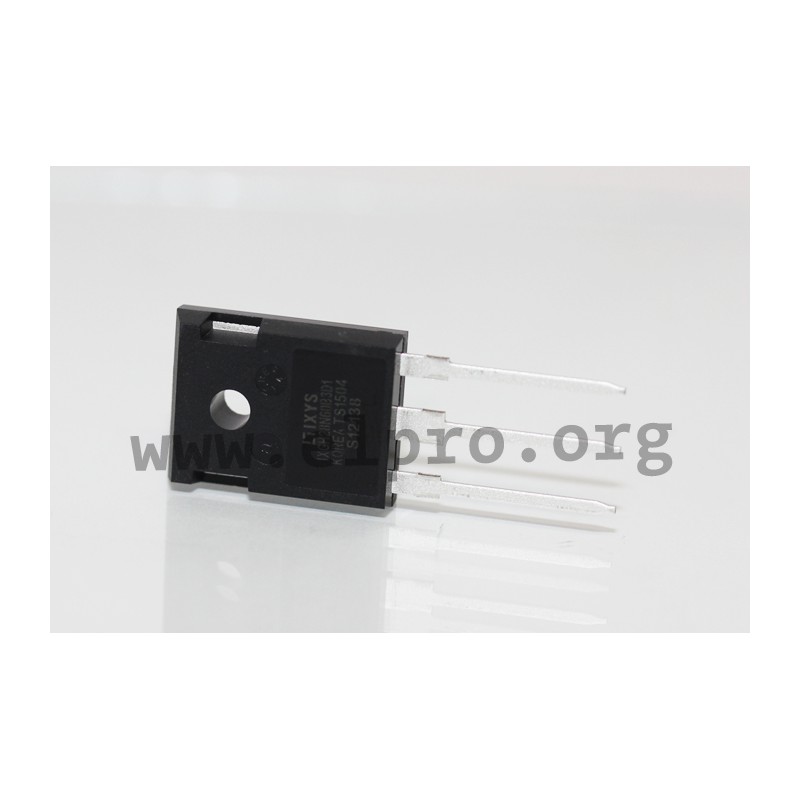

IXYH 50 N 120 C3D1

Littelfuse IGBT series IXA/IXDH/IXGH/IXGR/IXYH/IXXH

  • insulated-gate bipolar transistors (IGBTs)
  • in a TO247AD resp. TO247-Isolplus housing
  • with fast-recovery epitaxial diodes (FREDs)
  • GenX3™ / GenX4™ / PolarHV™ / HiPerFAST™ / XPT™

IXYH 50 N 120 C3D1

45765 IXYH 50 N 120 C3D1 IXYH50N120C3D1 IXYH50N120C3D1 Littelfuse IGBT series IXA/IXDH/IXGH/IXGR/IXYH/IXXH. insulated-gate bipolar transistors (IGBTs) in a TO247AD resp. TO247-Isolplus housing with fast-recovery epitaxial diodes (FREDs) GenX3™ / GenX4™ / PolarHV™ / HiPerFAST™ / XPT™

Specifications

manufacturer
Manufacturer's name IXYH50N120C3D1
Case TO247AD
Power dissipation [W] 625
Turn-on delay time [ns] 28
Min. gate threshold voltage [V] 3
Max. collector-emitter breakdown voltage [V] 1200
Turn-off delay time [ns] 133
Max. collector current, pulsed [A] 210
Max. continuous collector current at TC = 25°C 90
Data Sheet

Unit price

8,99 €

Stock: 0
Further delivery:
CW 46/2025

Minimum order quantity 300 units or
multiples of 300.
