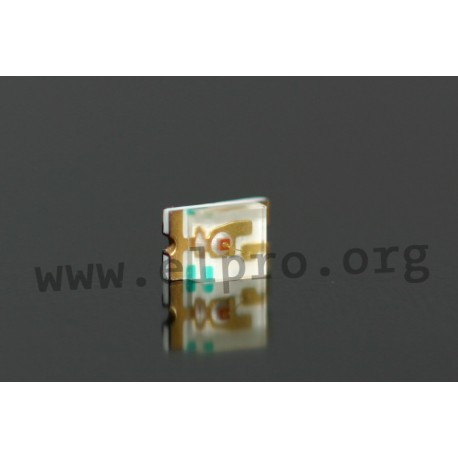

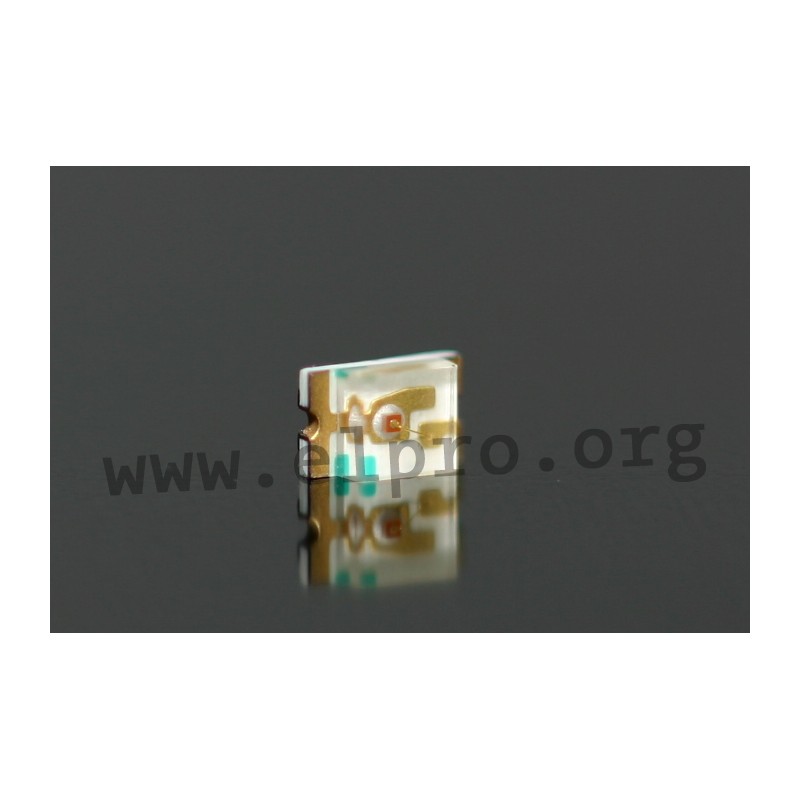

LTST-C171GKT

LiteOn SMD light-emitting diode series LTST-C171

  • clear LEDs
  • in an SMD 0805 housing
  • with a low profile of 0,8mm
  • suitable for direct PCB mounting

LTST-C171GKT

33830 LTST-C171GKT LTST-C171GKT LiteOn SMD light-emitting diode series LTST-C171. clear LEDs in an SMD 0805 housing  with a low profile of 0,8mm suitable for direct PCB mounting

Specifications

manufacturer
Manufacturer's name LTST-C171GKT
Colour green
Casing design clear
Forward voltage [V] 2,1
Diameter [mm] 0805
Forward current [mA] 20
Wavelength [nm] 565
Luminous intensity [µcd] 12
Viewing angle [°] 130

Unit price

0,0245 €

Stock: 28000
Further delivery:
CW 24/2025

Minimum order quantity 100 units or
multiples of 100.
