DL 3401 AR

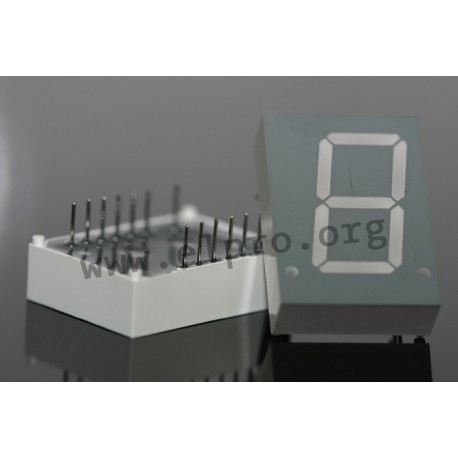

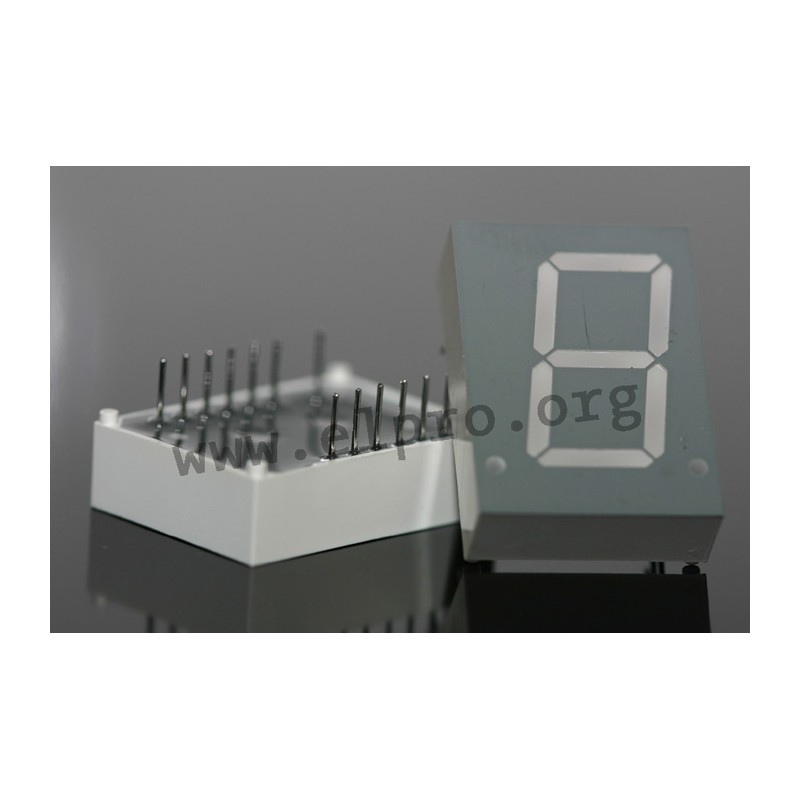

LiteOn LED display series LTS3401 and LTS3403

  • 7-segment LED displays
  • with a common cathode (DL_ K_) resp. anode (DL_ A_)
  • 1 digit
  • digit height: 20,4mm

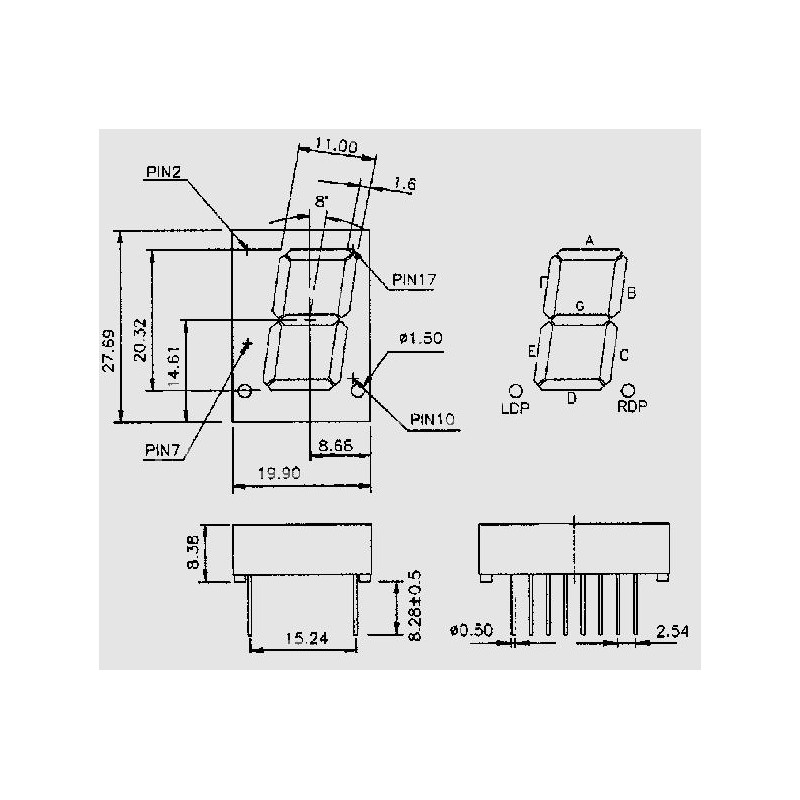

  • dimensions: 27,69x19,9mm

DL 3401 AR

12549 DL 3401 AR LTS3401VE-T LTS3401VE-T LiteOn LED display series LTS3401 and LTS3403. 7-segment LED displays with a common cathode (DL_ K_) resp. anode (DL_ A_) 1 digit digit height: 20,4mm dimensions: 27,69x19,9mm

Specifications

manufacturer
Manufacturer's name LTS3401VE-T
Colour orange
Digit height [mm] 20,4mm
Number of digits 1 digit
Forward current [mA] 10
Wavelength [nm] 630
Luminous intensity [µcd] 2,4
Data Sheet

Unit price

0,653 €

Stock: 1007
Further delivery:
CW 24/2025

Minimum order quantity 18 units or
multiples of 18.
