GBU 606

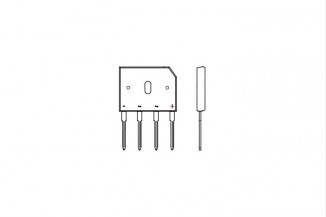

LiteOn flat rectifier series GBU

  • bridge rectifiers
  • in an In-Line housing with an elongated hole
  • pin spacing 5/5mm
  • comply with UL94V-0
  • operating temperature: -55 to +125°C
  • solderability: max. 260°C/10s
  • forward current: 6A

GBU 606

GBU 606

25794 GBU 606 GBU 606 LiteOn flat rectifier series GBU. bridge rectifiers  in an In-Line housing with an elongated hole pin spacing 5/5mm comply with UL94V-0 operating temperature: -55 to +125°C solderability: max. 260°C/10s forward current: 6A

Discontinued items. Only remainder of stock available.

Specifications

Case In-Line
(Max.) peak recurrent reverse voltage [V] 600
Forward voltage [V] 1
(Max.) average forward (rectified) current [A] 6
Reverse current [µA] 5
(Max.) RMS voltage [V] 420
Data Sheet

Unit price

0,38 €

Stock: 6
