WS für TO 3

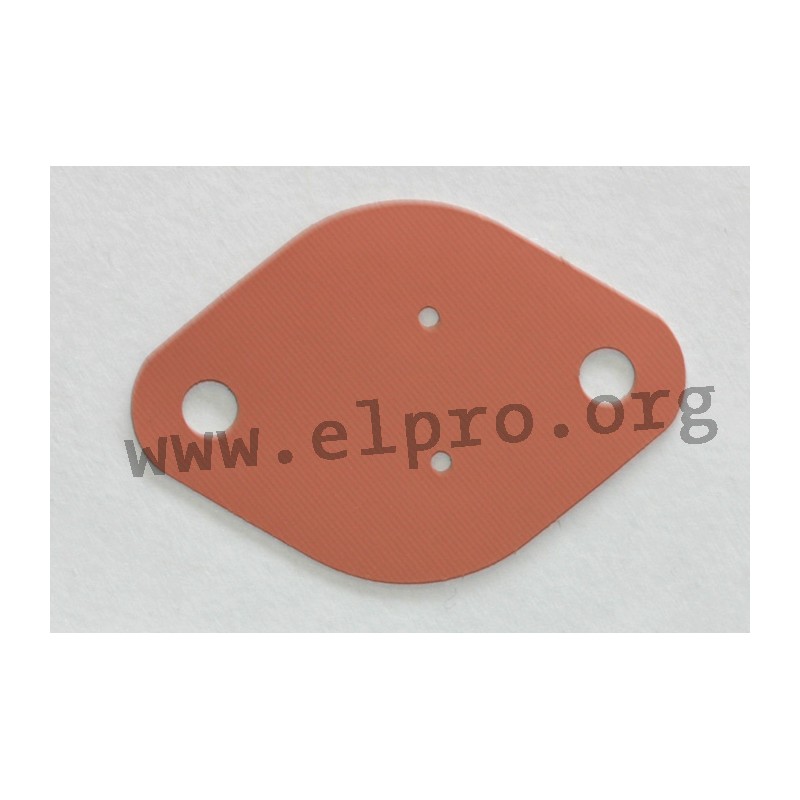

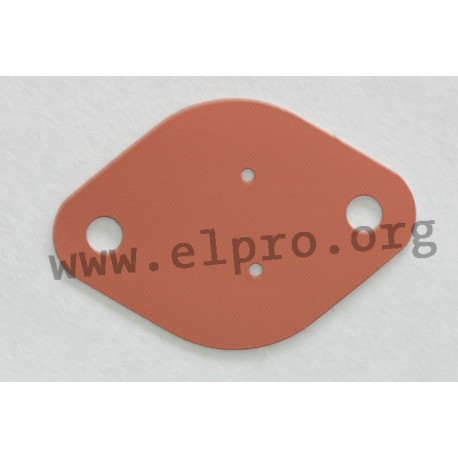

Kunze thermo-silicone insulator series KU-CG30

  • salmon-coloured thermo-silcone insulators with a high thermal conductance
  • suited for TO3 housings
  • mechanical stability due to reinforced glass fiber
  • very flexible
  • a heat conductor paste is not necessary
  • flammability class: UL94V-0
  • filling: heat conductive ceramic
  • material thickness: 0.3mm ±0,05
  • thermal conductance: 1,9W/mK
  • thermal resistance (at approx. 1.3MPa): 0.45°C/W
  • dielectric voltage (voltage ramp 1000V/s): 7000V AC
  • operating temperature: -60 to +200°C

WS für TO 3

28417 WS für TO 3 KU-CG30-0H-ST-6-619-L KU-CG30-0H-ST-6-619-L Kunze thermo-silicone insulator series KU-CG30. salmon-coloured thermo-silcone insulators with a high thermal conductancesuited for TO3 housingsmechanical stability due to reinforced glass fibervery flexiblea heat conductor paste is not necessaryflammability class: UL94V-0filling: heat conductive ceramicmaterial thickness: 0.3mm ±0,05thermal conductance: 1,9W/mKthermal resistance (at approx. 1.3MPa): 0.45°C/Wdielectric voltage (voltage ramp 1000V/s): 7000V ACoperating temperature: -60 to +200°C

Specifications

manufacturer
Manufacturer's name KU-CG30-0H-S...

Unit price

0,745 €

Stock: 708
Further delivery:
CW 31/2025

Minimum order quantity 1 to 8 units or multiples of 100 plus 0 to 8 .
