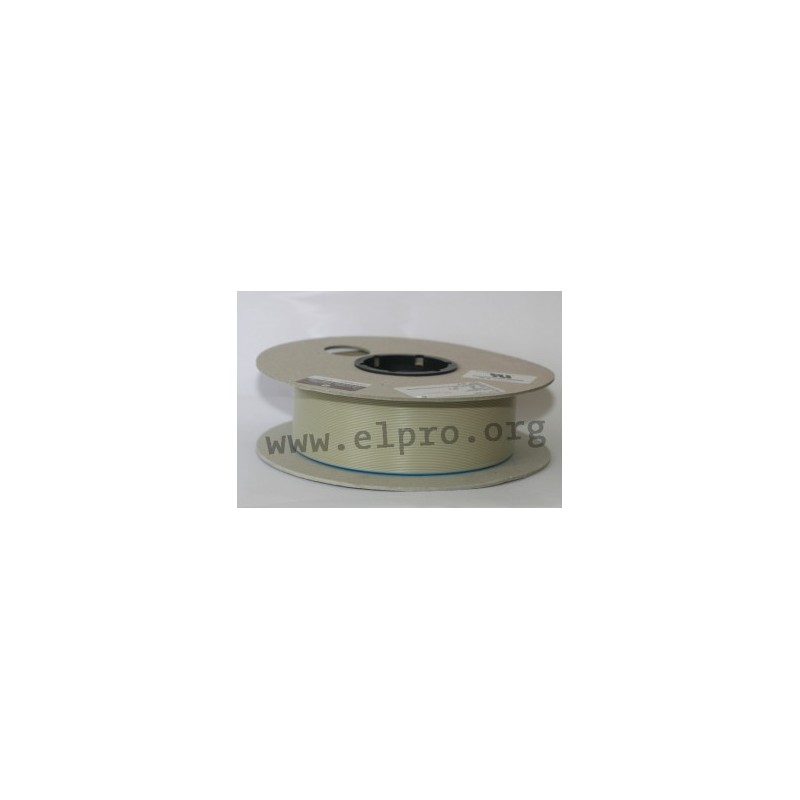

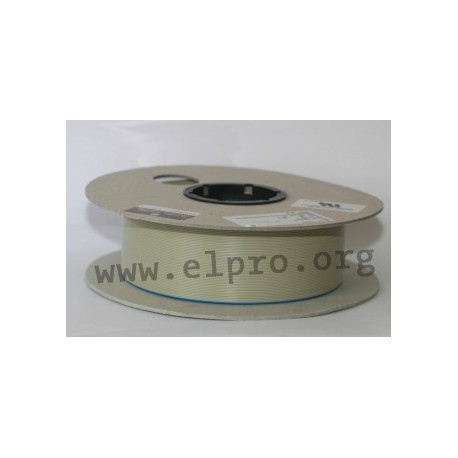

AWG 28-40 GR

PVC flat cables

• extruding strip cable
• solid tinned copper wire AWG28 (0.09mm²)
• pitch: 1.27mm
* 40-wire
• grey
• special PVC insulation with blue polarity marking
• flame retardant according to VDE 0472 and UL
• temperature range: -20 to +105°C
• rated voltage: 300V
• rated current: 1A
• test voltage: 2000V
• insulation resistance: >20MW*km
• capacitance (@1MHz): 45pF/m
• inductance (@1MHz): 0.46µH/m
• impedance: 104W
• crosstalk, near (@1MHz): 60dB
• crosstalk, far (@1MHz): 50dB

AWG 28_GR

AWG 28-40 GR

7114 AWG 28-40 GR 05A87240 05A87240 PVC flat cables. • extruding strip cable• solid tinned copper wire AWG28 (0.09mm²)• pitch: 1.27mm* 40-wire• grey• special PVC insulation with blue polarity marking• flame retardant according to VDE 0472 and UL• temperature range: -20 to +105°C• rated voltage: 300V• rated current: 1A• test voltage: 2000V• insulation resistance: >20MW*km• capacitance (@1MHz): 45pF/m• inductance (@1MHz): 0.46µH/m• impedance: 104W• crosstalk, near (@1MHz): 60dB• crosstalk, far (@1MHz): 50dB

Specifications

manufacturer
Manufacturer's name 05A87240
Design 30,5 metre ring
Data Sheet

Unit price

67,89 €

Stock: 40
Further delivery:
CW 05/2025
