AWG 28-60 F

PVC flat cables

• double extruding strip cable
• solid tinned copper wire AWG28 (0.09mm²)

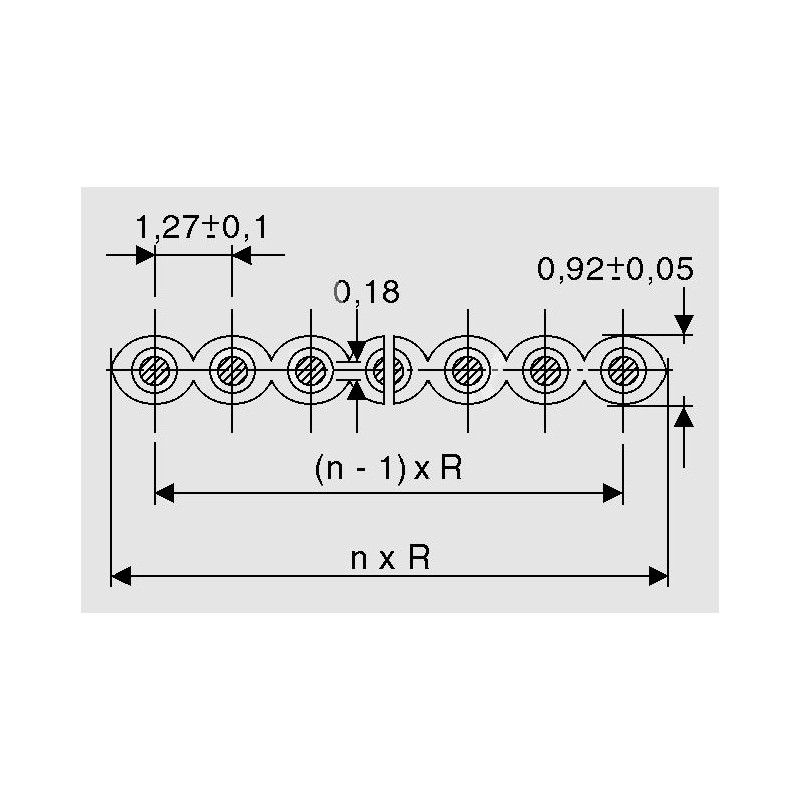

• pitch 1.27mm
* 60-wire
• rainbow
• PVC insulation
• self-extinguishing
• colour sequence according to IEC
• temperature range: -20 to +80°C
• rated voltage: 300V
• rated current: 1A
• test voltage: 2000V
• insulation resistance: >20MW*km
• capacitance (@1MHz): 53pF/m
• impedance: 108W
• crosstalk, near (@1MHz): 33dB
• crosstalk, far (@1MHz): 45dB

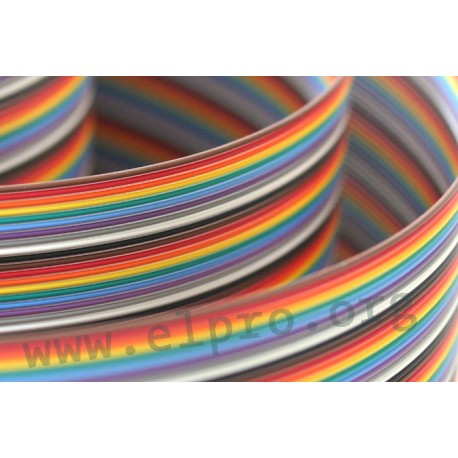

AWG 28_F

AWG 28-60 F

7142 AWG 28-60 F AWG 28-60 F PVC flat cables. • double extruding strip cable• solid tinned copper wire AWG28 (0.09mm²)• pitch 1.27mm* 60-wire• rainbow• PVC insulation• self-extinguishing• colour sequence according to IEC• temperature range: -20 to +80°C• rated voltage: 300V• rated current: 1A• test voltage: 2000V• insulation resistance: >20MW*km• capacitance (@1MHz): 53pF/m• impedance: 108W• crosstalk, near (@1MHz): 33dB• crosstalk, far (@1MHz): 45dB

Discontinued items. Only remainder of stock available.

Specifications

Design 1-metre-piece
Colour rainbow-coloured
Data Sheet

Unit price

5,82 €

Stock: 7
