LIYCY 8x0,14 grau

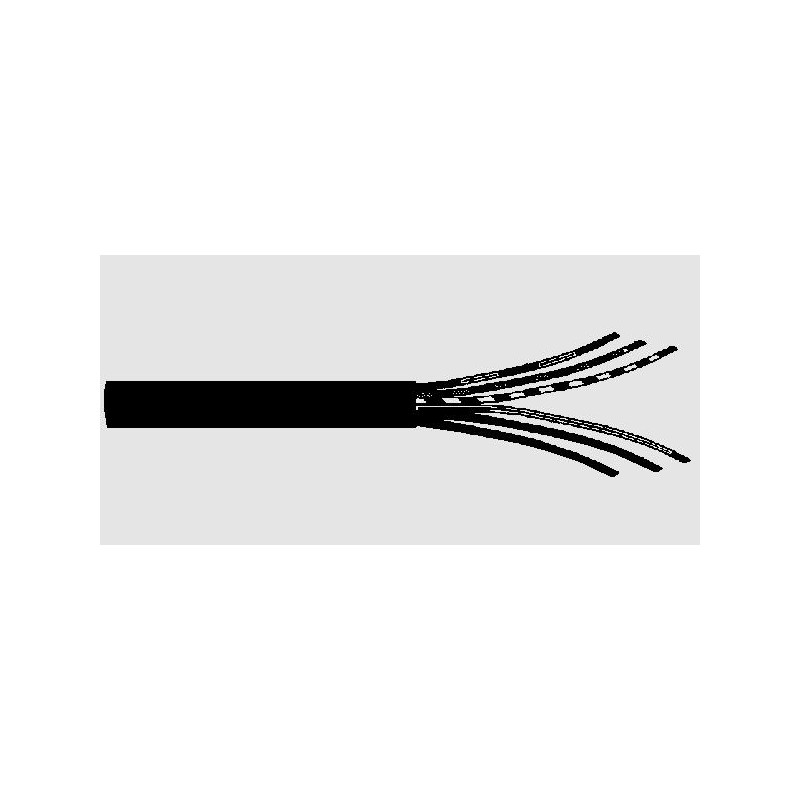

PVC control cables

Twisted and shielded PVC control cables in the colour grey (RAL 7032). They have a rated voltage of 300V and a test voltage of more than 1.5kV. We offer the following types of this Klasinger series: LIYCY 4x0,14 grey, LIYCY 6x0,14 grey, and LIYCY 8x0,14 grey.

  • screening, Cu plaited, tinned: 85%
  • conductor insulation: PVC YI 2
  • conductor colours: DIN 47 100
  • conductor composition: 18x0.1mm
  • outer jacket: PVC YM 2
  • flammability: flame resistant IEC332.1
  • temperature range moving: -10 to +70°C
  • temperature range stationary: -30 to +80°C
  • insulation resistance, min.: 20MΩxkm
  • conductor resistance, max.: 135Ω/km
  • delivery quantity: 100-meter ring
  • price corresponds to one meter

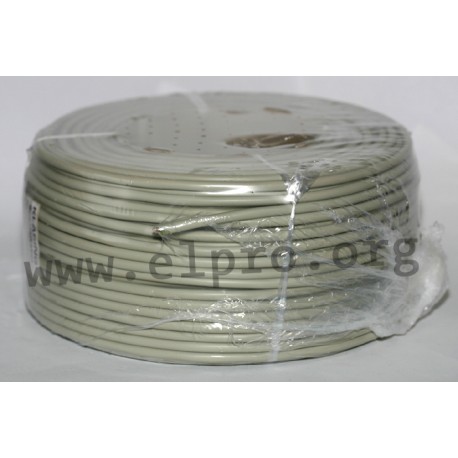

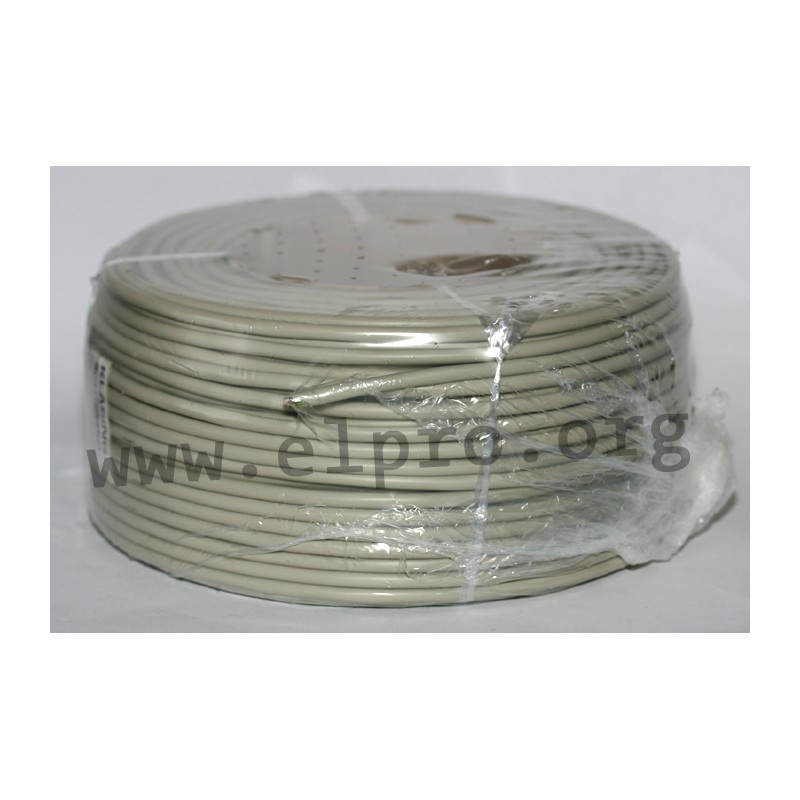

LIYCY 8x0,14 grey

LIYCY 8x0,14 grau

30134 LIYCY 8x0,14 grau 03070108/22 03070108/22 PVC control cables. Twisted and shielded PVC control cables in the colour grey (RAL 7032). They have a rated voltage of 300V and a test voltage of more than 1.5kV. We offer the following types of this Klasinger series: LIYCY 4x0,14 grey, LIYCY 6x0,14 grey, and LIYCY 8x0,14 grey. screening, Cu plaited, tinned: 85% conductor insulation: PVC YI 2 conductor colours: DIN 47 100 conductor composition: 18x0.1mm outer jacket: PVC YM 2 flammability: flame resistant IEC332.1 temperature range moving: -10 to +70°C temperature range stationary: -30 to +80°C insulation resistance, min.: 20MΩxkm conductor resistance, max.: 135Ω/km delivery quantity: 100-meter ring price corresponds to one meter

Specifications

manufacturer
Manufacturer's name 03070108/22
Colour grey

Unit price

1,01 €

Stock: 1200
Further delivery:
CW 03/2025

Minimum order quantity 100 units or
multiples of 100.
