E-SMD 50 V 4,7 µF 105°

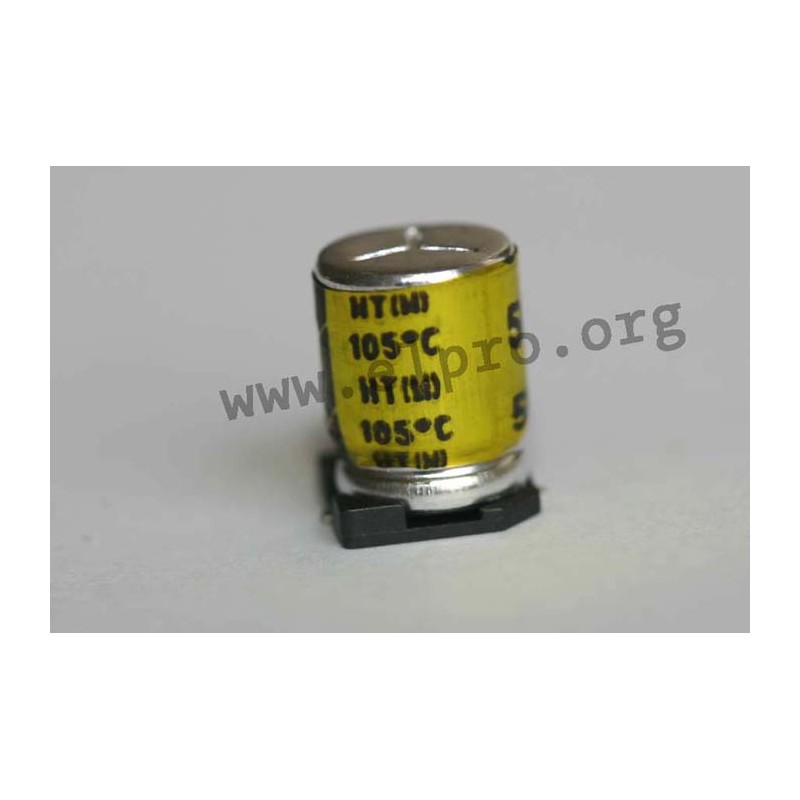

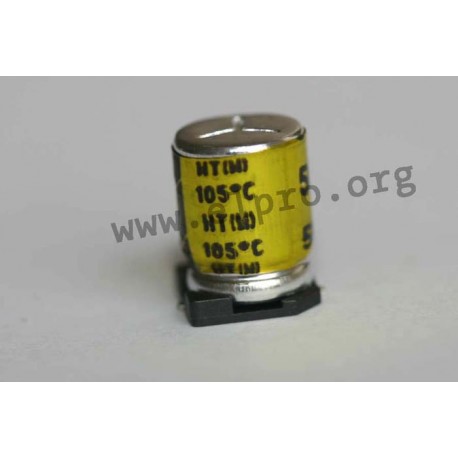

KJ Electronics electrolytic capacitor series HT

  • caps in an SMD design
  • suitable for direct PCB mouting
  • suitable for an automatic assembly
  • with a tolerance of ±20% and a service life of 1000h at +105°C
  • operating temperature: -40 to +105°C
  • taped
E-SMD 50 V 4,7 µF 105°

E-SMD 50 V 4,7 µF 105°

7251 E-SMD 50 V 4,7 µF 105° 50HT4R7MLC5X5,4EC 50HT4R7MLC5X5,4EC KJ Electronics electrolytic capacitor series HT. caps in an SMD design suitable for direct PCB mouting suitable for an automatic assembly  with a tolerance of ±20% and a service life of 1000h at +105°C operating temperature: -40 to +105°C taped

Specifications

manufacturer
Manufacturer's name 50HT4R7MLC5X5,4EC
Reverse current [A] 0,016
Loss factor at 120Hz, 25°C 12
Capacity [µF] 4,7
D x L [mm] 5x5,4
Data Sheet

Unit price

0,073 €

Stock: 350
Further delivery:
CW 12/2025

Minimum order quantity 25 units or
multiples of 25.
