> Passive elements>Capacitors>Electrolytic capacitors>KJ Electronics electrolytic capacitors, SMD, 105°C, HT series>E-SMD 50 V 100 µF 105°

Manufacturers

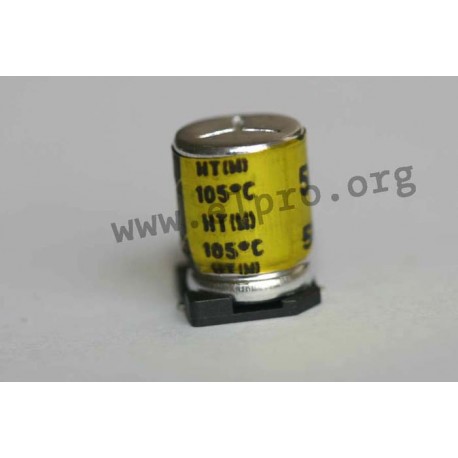

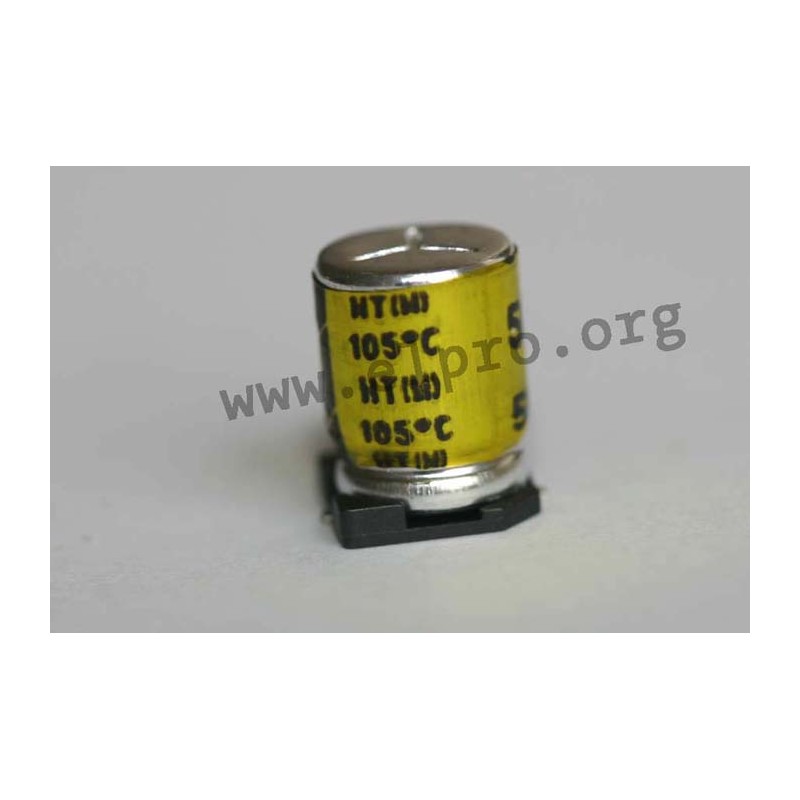

E-SMD 50 V 100 µF 105°

KJ Electronics electrolytic capacitor series HT

  • caps in an SMD design
  • suitable for direct PCB mouting
  • suitable for an automatic assembly
  • with a tolerance of ±20% and a service life of 1000h at +105°C
  • operating temperature: -40 to +105°C
  • taped
E-SMD 50 V 100 µF 105°

E-SMD 50 V 100 µF 105°

7245 E-SMD 50 V 100 µF 105° 50HT101MLC8X10,5EC 50HT101MLC8X10,5EC KJ Electronics electrolytic capacitor series HT. caps in an SMD design suitable for direct PCB mouting suitable for an automatic assembly  with a tolerance of ±20% and a service life of 1000h at +105°C operating temperature: -40 to +105°C taped

Specifications

manufacturer
Manufacturer's name 50HT101MLC8X10,5EC
Reverse current [A] 0,155
Loss factor at 120Hz, 25°C 12
D x L [mm] 8x10,5
Data Sheet

Unit price

0,242 €

Stock: 680
Next incoming goods:
CW 51/2024
1400 units

Further delivery:
CW 12/2025

Minimum order quantity 1 to 5 units or multiples of 25 plus 0 to 5 .
