> Passive elements>Capacitors>Tantalum capacitors>Kemet tantalum capacitors, SMD, low ESR, surge-current-proof, T495 series>T495C106M025ATE275

Manufacturers

T495C106M025ATE275

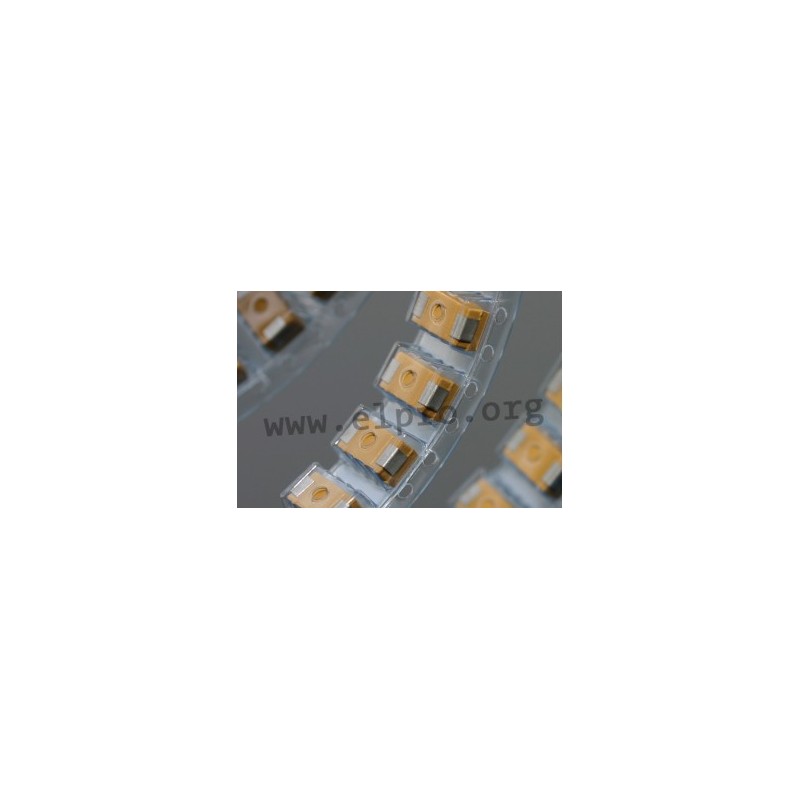

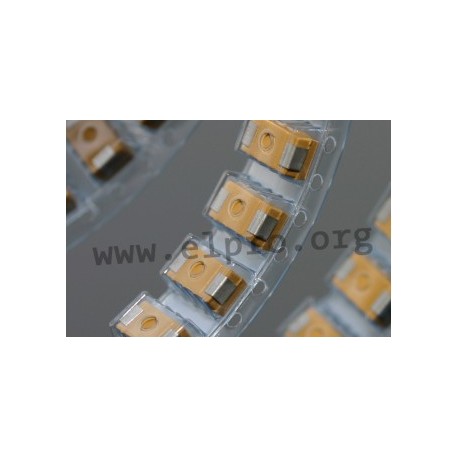

Kemet capacitor series T495

  • surface mount tantalum capacitors
  • with a low ESR and ESL (<2,5nH)
  • comply with EIA 535BAAC
  • surge-current-proof
  • rated voltage: 6,3 to 35V DC
  • capacitance tolerance: ±20%
  • taped
T495-series by Kemet

T495C106M025ATE275

33897 T495C106M025ATE275 T495C106M025ATE275 Kemet capacitor series T495. surface mount tantalum capacitors with a low ESR and ESL (&lt;2,5nH) comply with EIA 535BAAC surge-current-proof rated voltage: 6,3 to 35V DC capacitance tolerance: ±20% taped

Specifications

manufacturer
Manufacturer's name T495C106M025ATE275
Alternating current [mA] 632
Chip size C
Equivalent series resistance [mΩ] 275
Height [mm] 2,5
Nominal voltage [V] 20
G [mm] 2,8
Leakage current [mA] 2,5
s [mm] 1,3
Length [mm] 6
W [mm] 3,2
Data Sheet

Unit price

0,728 €

Stock: 1826
Further delivery:
CW 10/2025

Minimum order quantity 1 to 6 units or multiples of 10 plus 0 to 6 .
