T495D226M025ATE200

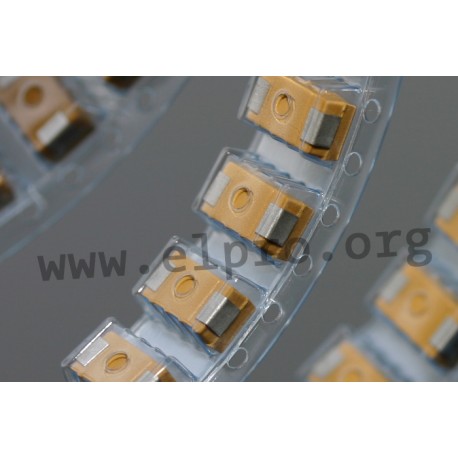

Kemet capacitor series T495

  • surface mount tantalum capacitors
  • with a low ESR and ESL (<2,5nH)
  • comply with EIA 535BAAC
  • surge-current-proof
  • rated voltage: 6,3 to 35V DC
  • capacitance tolerance: ±20%
  • taped

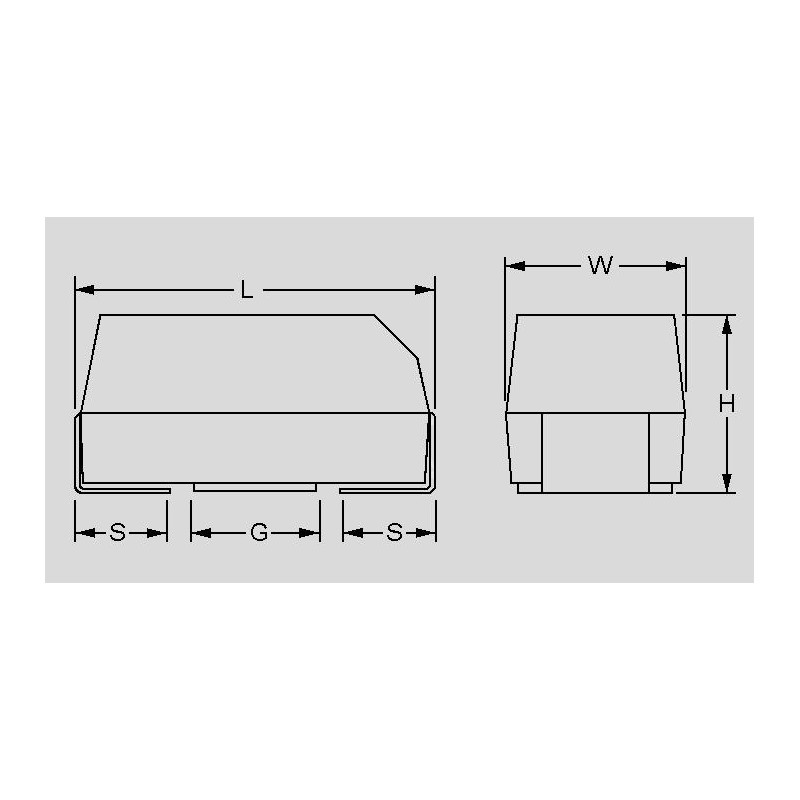

dimensions

T495D226M025ATE200

33879 T495D226M025ATE200 T495D226K025ATE200 T495D226K025ATE200 Kemet capacitor series T495. surface mount tantalum capacitors with a low ESR and ESL (&lt;2,5nH) comply with EIA 535BAAC surge-current-proof rated voltage: 6,3 to 35V DC capacitance tolerance: ±20% taped

Specifications

manufacturer
Manufacturer's name T495D226K025ATE200
Alternating current [mA] 866
Chip size D
Equivalent series resistance [mΩ] 200
Height [mm] 2,8
G [mm] 3,5
Leakage current [mA] 5,5
s [mm] 1,3
Length [mm] 7,3
W [mm] 4,3
Data Sheet

Unit price

0,528 €

Stock: 2076
Further delivery:
CW 10/2025

Minimum order quantity 1 to 6 units or multiples of 10 plus 0 to 6 .
